80kg-800kg Single Screw Extrusion 16mm-630mm PE Plastic Tube Pipe Making Machine With Customised Design

Manufacturer Price 80kg-800kg Single Screw Extrusion 16mm-630mm PE Plastic Tube Pipe Making Machine

APPLICATION:

This high-performance single screw extrusion machine is designed for manufacturing PE (Polyethylene) plastic pipes and tubes with diameters ranging from 16mm to 630mm. It is suitable for producing HDPE, LDPE, and other thermoplastic pipes used in water supply, drainage, irrigation, gas transmission, and industrial applications.

With an output capacity of 80kg to 800kg per hour, this machine ensures high efficiency, stable operation, and consistent pipe quality. The extrusion system features precision temperature control, a robust screw design, and advanced extrusion technology to ensure smooth material flow and uniform pipe thickness.

PE PIPE PRODUCTION SPECIFICATIONS:

Technological processes

[Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting] → [Marking]

Material Feeding

PE plastic granules are fed into the hopper of the extruder.

Optional drying system (if moisture absorption is a concern).

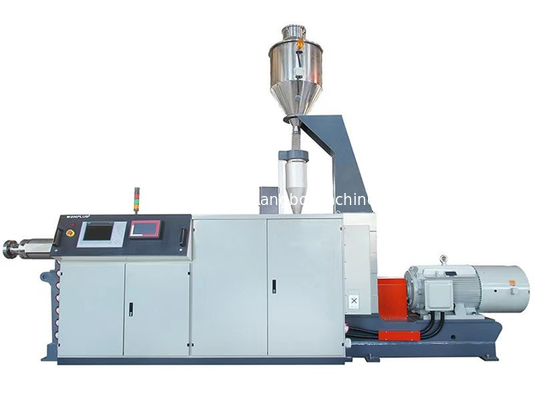

Melting & Extrusion

The single screw extruder heats and melts the plastic granules.

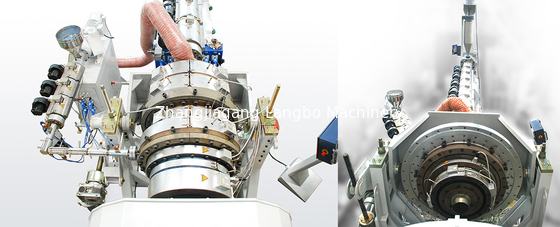

The screw rotates to push the molten plastic through the die head, forming a continuous pipe shape.

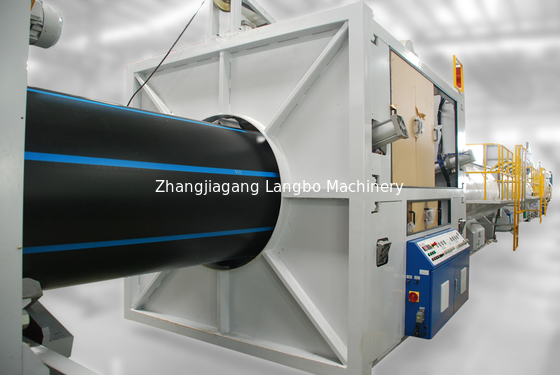

Vacuum Sizing & Calibration

The extruded pipe passes through a vacuum sizing tank to ensure accurate diameter and roundness.

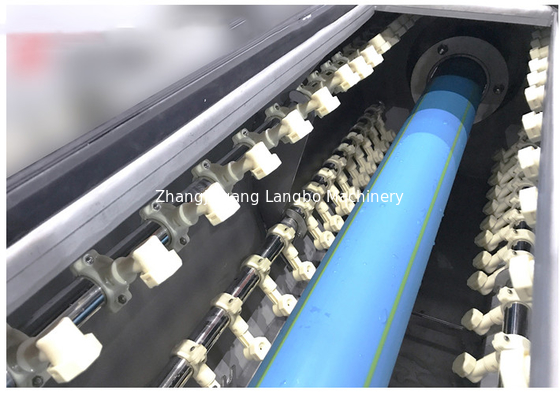

Cooling water sprays help solidify the pipe structure.

Cooling

The pipe moves through a cooling tank (spray or immersion type) to fully harden.

Hauling (Pulling)

A haul-off machine grips and pulls the pipe at a controlled speed to maintain consistency.

Cutting

An automatic cutting machine (saw or planetary cutter) cuts the pipe to the required length.

Stacking & Packaging

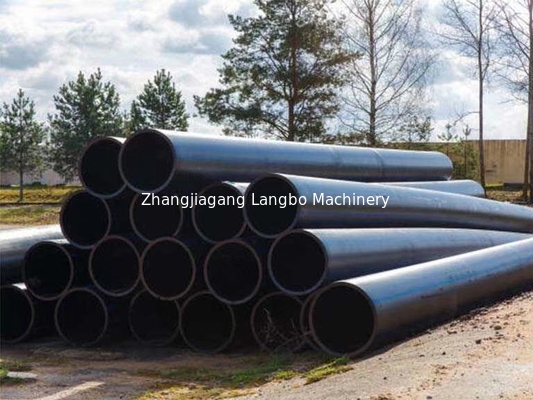

Finished pipes are collected and stacked for packaging.

Optional printing or marking system for labeling.

Advantages:

Single screw extruder with high torque and stable performance

Extrusion diameter range: 16mm - 630mm

Production capacity: 80kg - 800kg/hour (depending on material & pipe size)

Suitable for PE and other thermoplastic materials

Vacuum sizing & cooling system for precise pipe dimensions

PLC control system for easy operation and parameter adjustment

Automatic or manual cutting options (saw cutting or planetary cutter)

Durable construction with high-quality components for long service life

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
