Single Screw Extrusion Machine For Making Plastic PE Water Electric Conduit Pipe Tube Haul Off Cutting Winding Belling

Plastic PE Water Electric Conduit Pipe Tube (extruder haul off cutting winding belling) Extrusion Making Production Line Machine

APPLICATION:

The Plastic PE Water & Electric Conduit Pipe Production Line is a fully automated manufacturing system designed for high-efficiency extrusion of PE pipes used in water supply, drainage, and electrical conduit applications. This advanced production line integrates extrusion, haul-off, cutting, winding (coiling), and belling processes to ensure consistent pipe quality, durability, and precision dimensions.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Production Flow:

PE powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

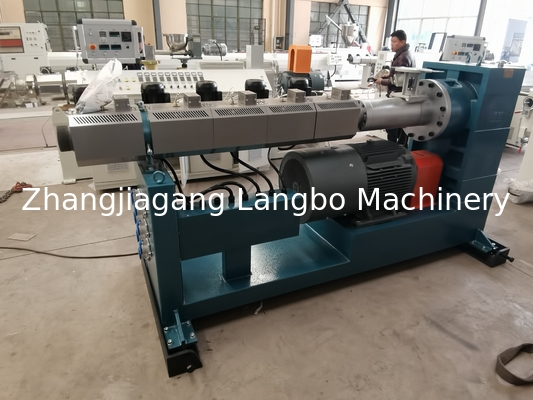

Single Screw Extruder:

Different models for options:SJ65/30,SJ90/30,SJ90/33 High quality electrical components, like Siemens, Omron, Fuji, Delta, etc. Alloy screw & barrel, which guarantee high quality and stable output. Equipped with high qualty gearbox and distributor. Extruder control by PLC screen touch is available as well; PLC screen touch is from Siemens (customized).

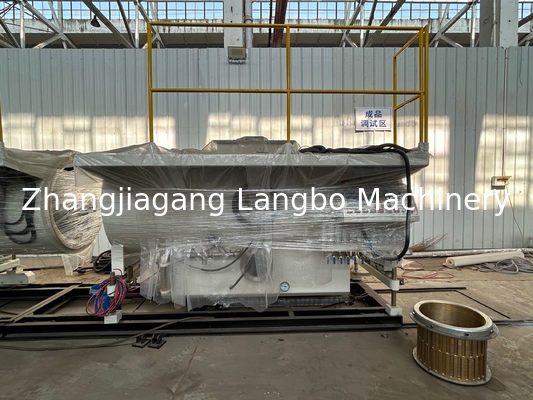

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

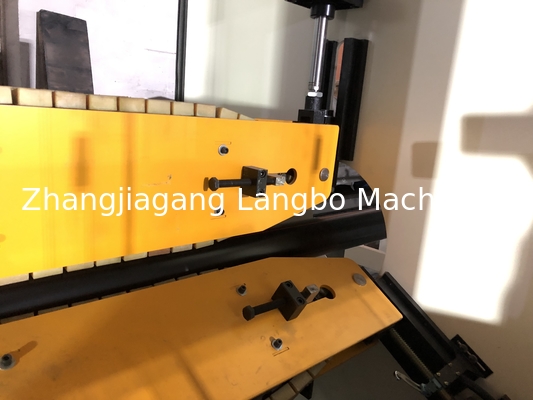

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

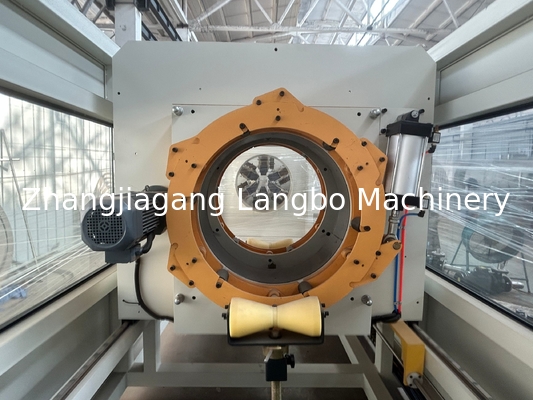

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

Feature of Machines:

2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
