Single Screw Extruder Pipe Machinery PE HDPE Pipe Extrusion Production Line

Single Screw Extruder Pipe Machinery PE HDPE Pipe Extrusion Production Line

APPLICATION:

1. It is mainly used to produce all kinds of UPVC pipes for agriclutural water supply and drainage, building water supply and drainage and cable laying etc.
2. Saw cutter, dust freee cutter and planetary cutter for choice.
3. Changing some parts can also produce PE pipe, HDPE pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Conical twin screw extruder and parallel twin screw extruder for choice.
5. Double cavity and four cavity for choice for small pipes.

PE PIPE PRODUCTION SPECIFICATIONS:

Single screw extruder Main characteristics:

Urban water supply system;
Conveying system in the domain of foodstuffs, chemical industry;
Sand and mud conveying system;

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Material Feeding & Drying

PE resin pellets are fed into the hopper and dried (if necessary) to remove moisture, ensuring optimal extrusion quality.

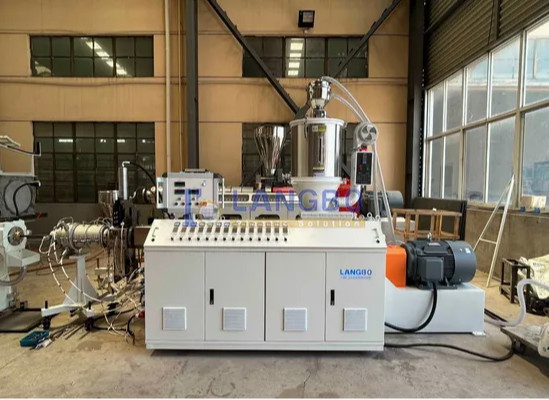

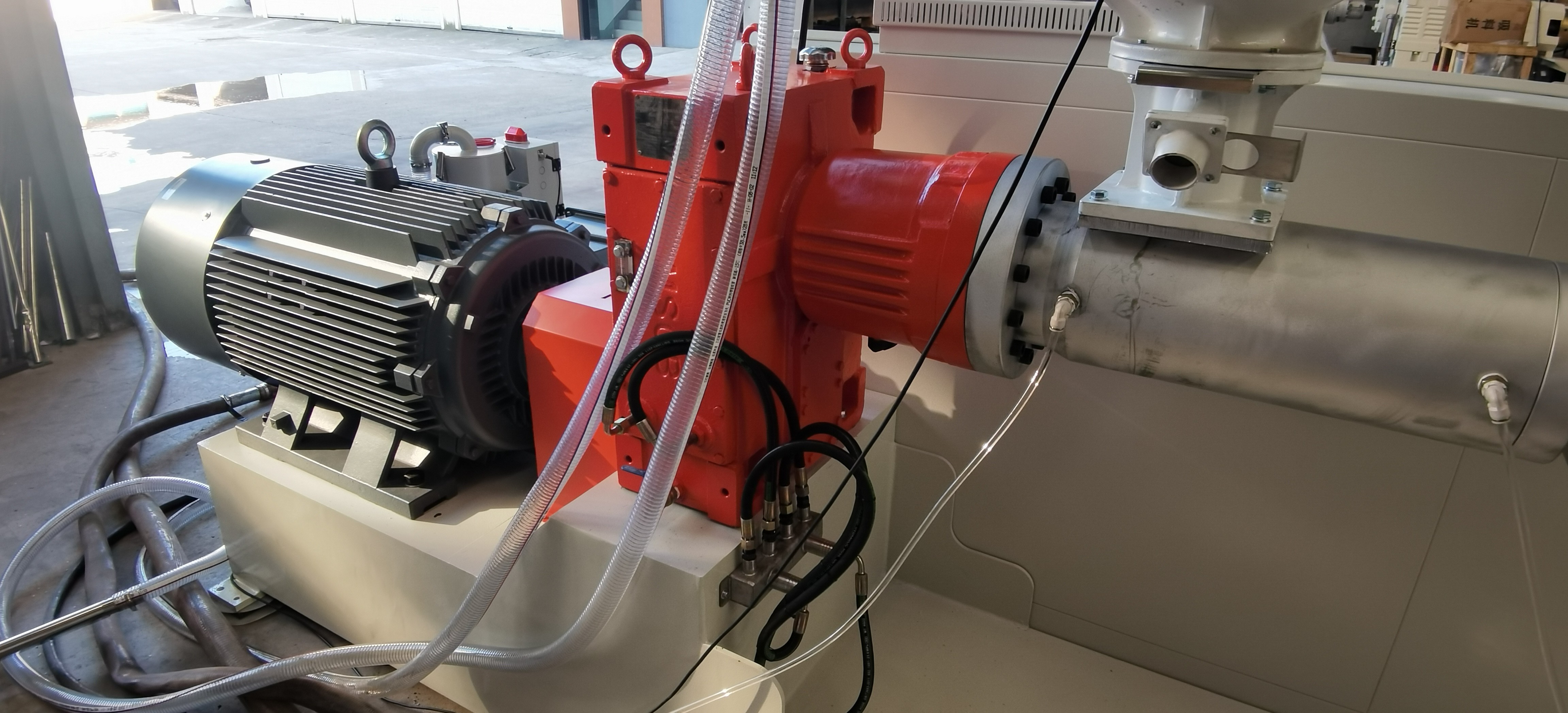

Extrusion Melting & Plasticizing

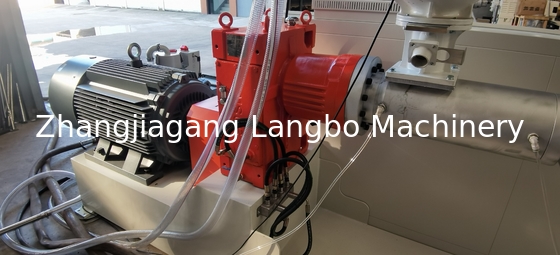

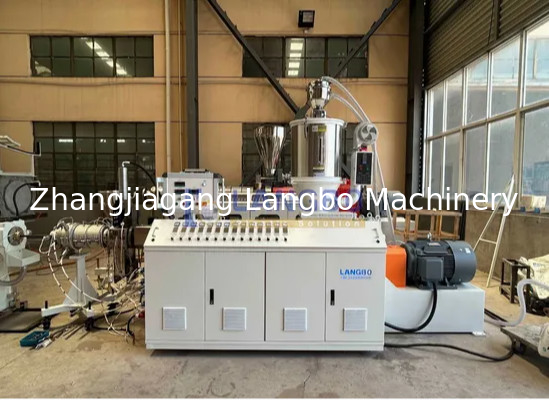

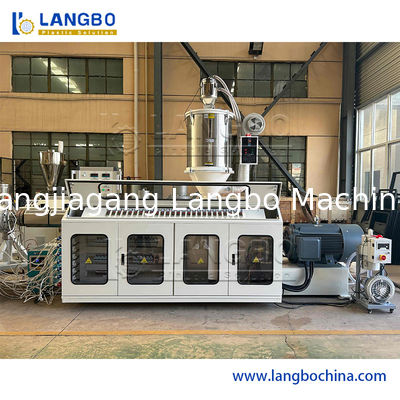

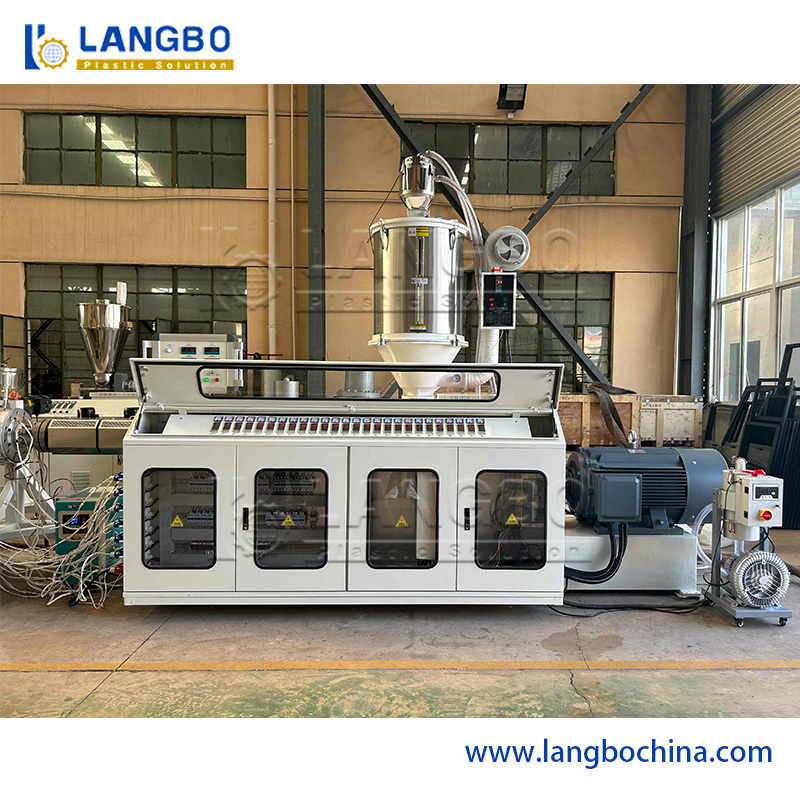

The single-screw extruder heats and melts the PE material uniformly, using precise temperature control zones for consistent viscosity.

Pipe Extrusion & Molding

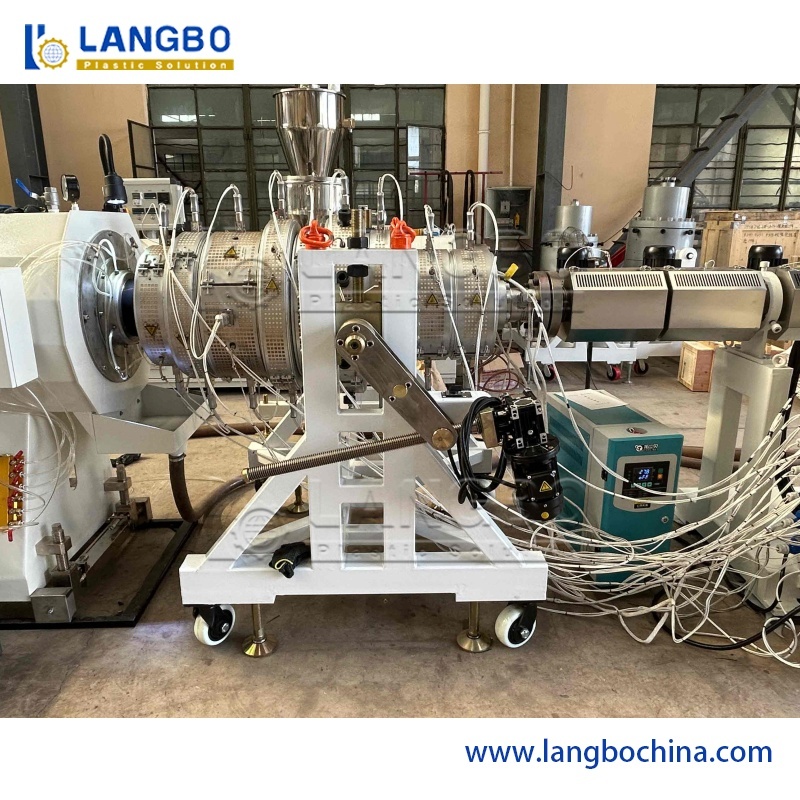

The molten PE is pushed through a pipe die head, forming a continuous pipe shape with controlled dimensions.

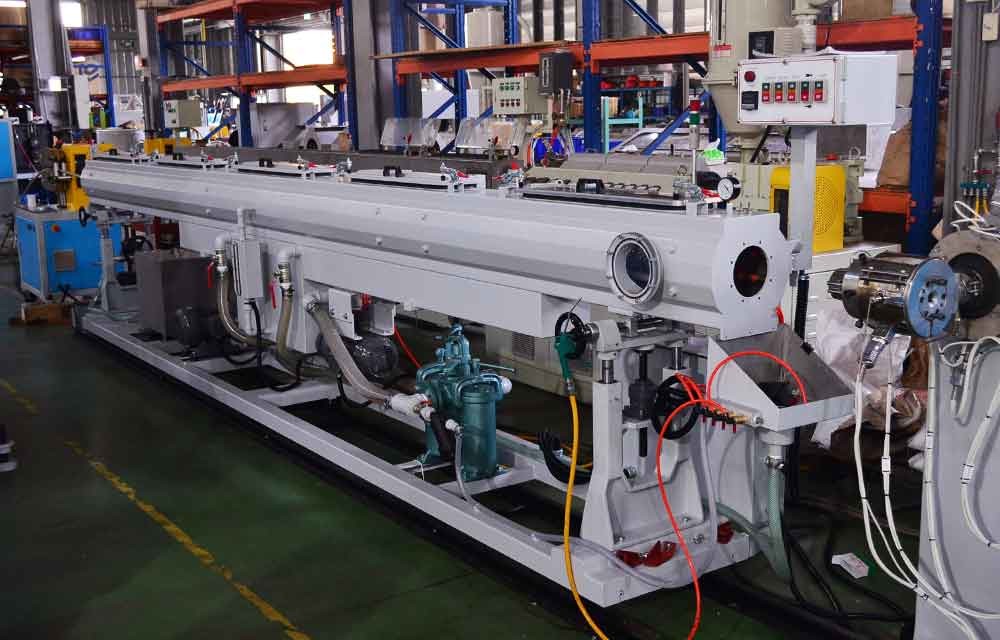

Vacuum Calibration & Cooling

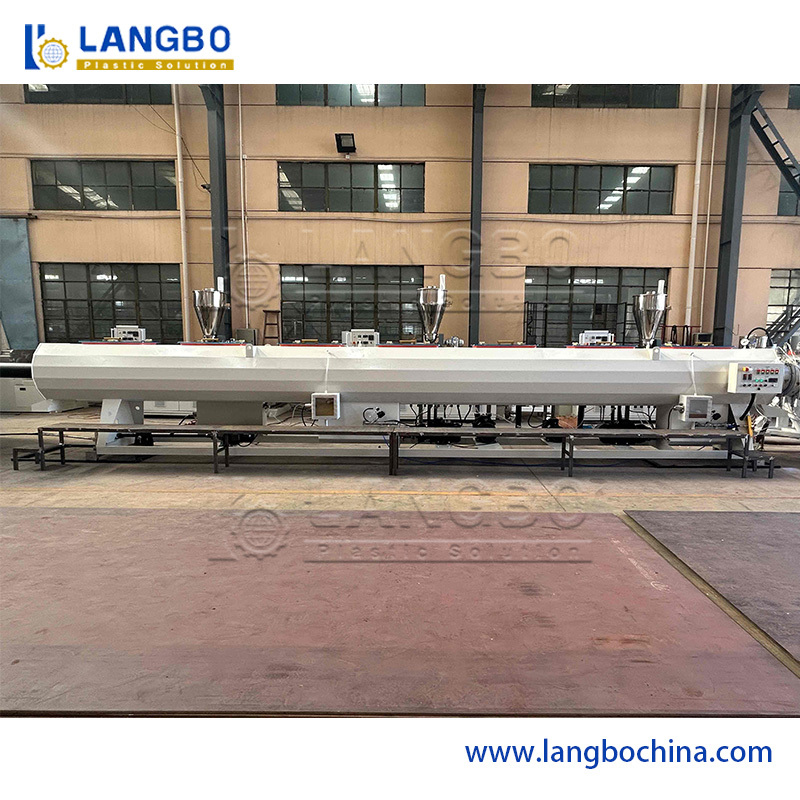

The extruded pipe passes through a vacuum calibration tank to stabilize the diameter, then enters a cooling water tank for solidification.

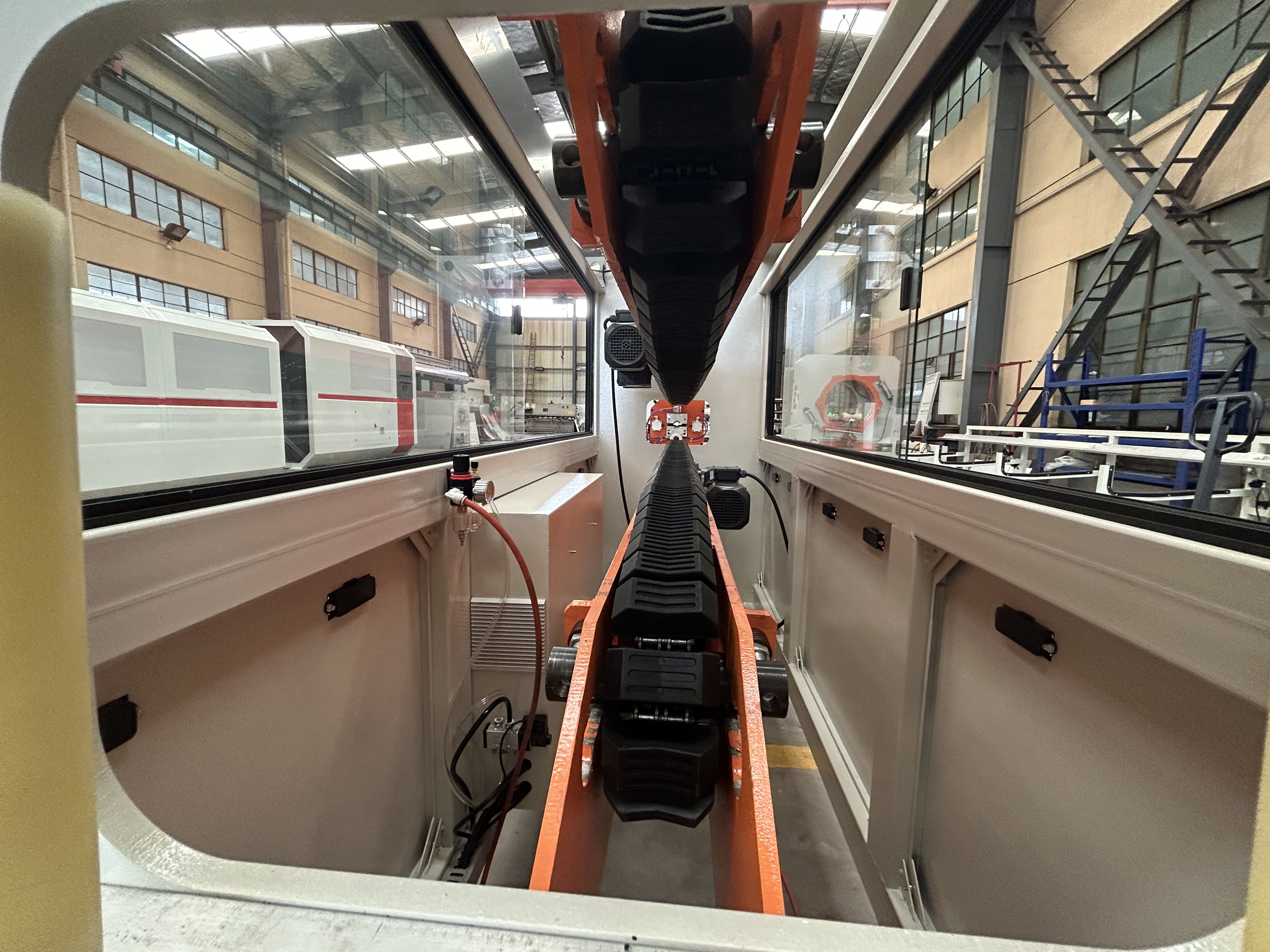

Haul-off & Traction

A haul-off machine pulls the pipe at a controlled speed to maintain uniform thickness and prevent deformation.

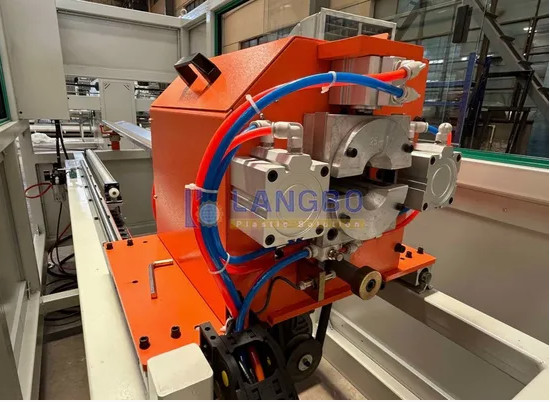

Cutting & Length Control

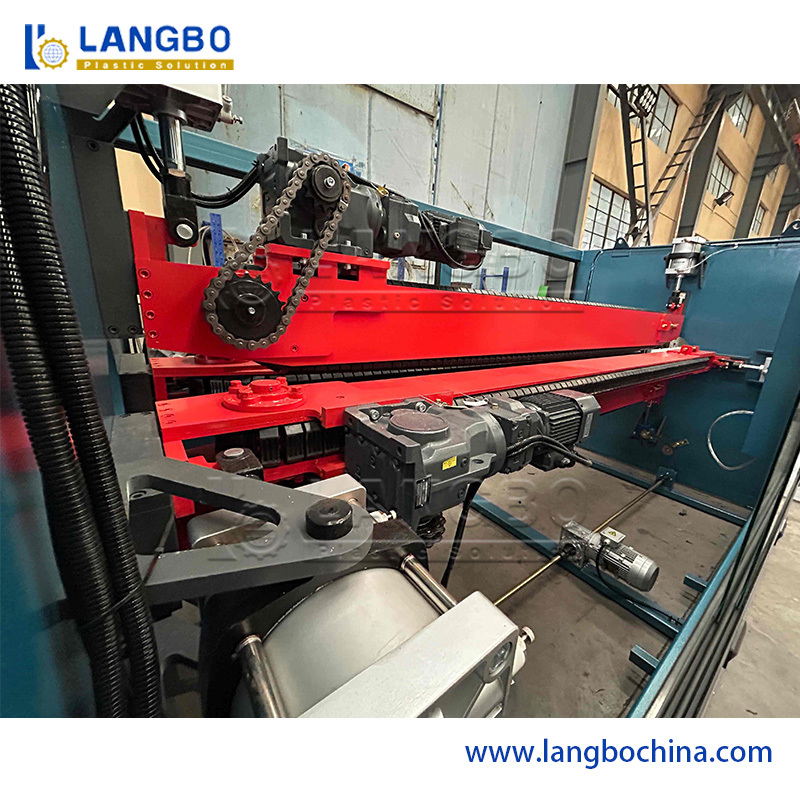

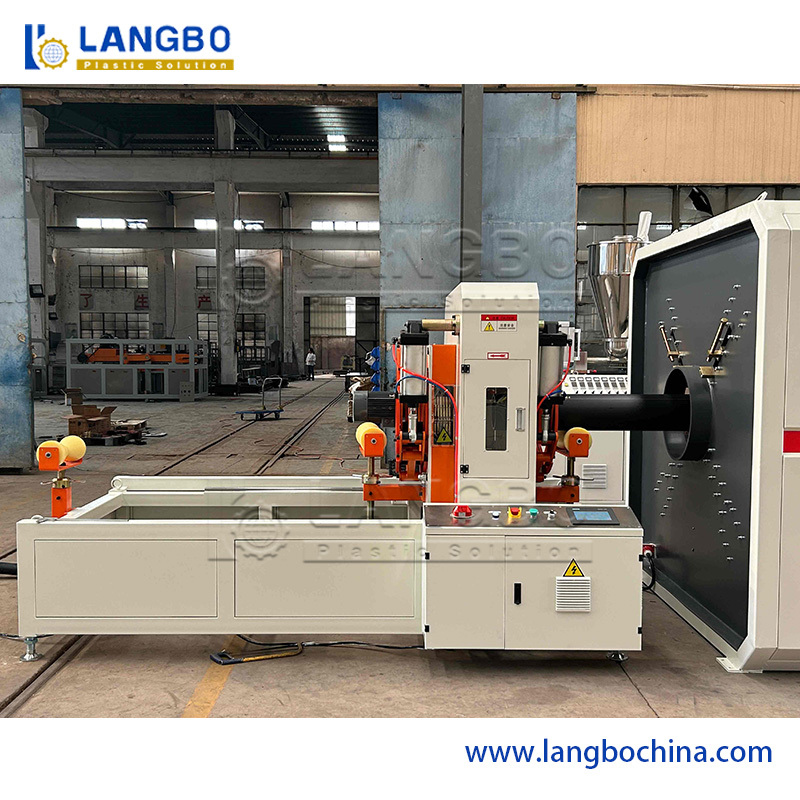

An automatic cutting machine trims the pipe to the required lengths with precision.

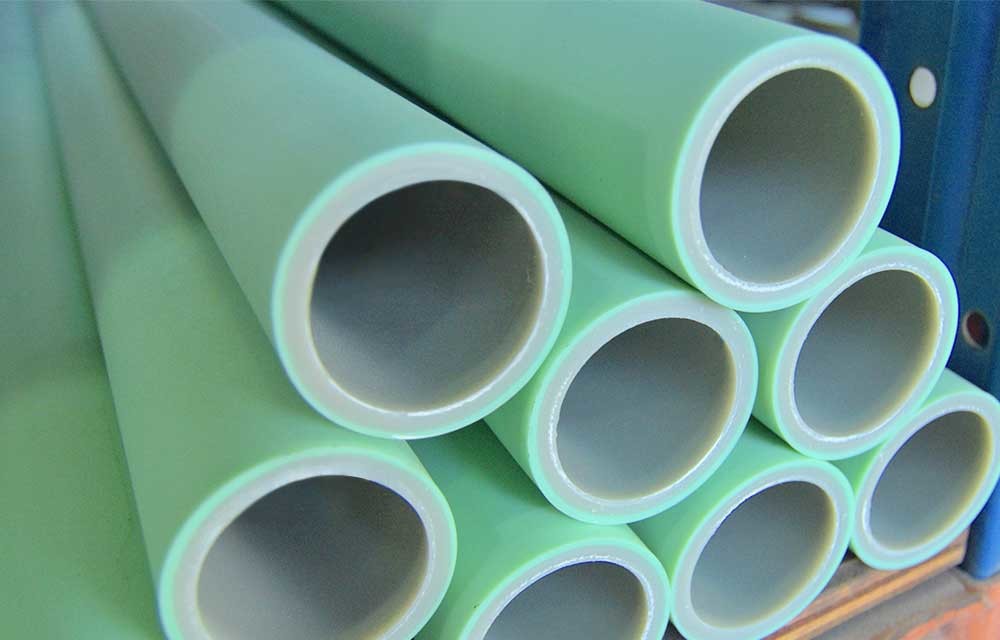

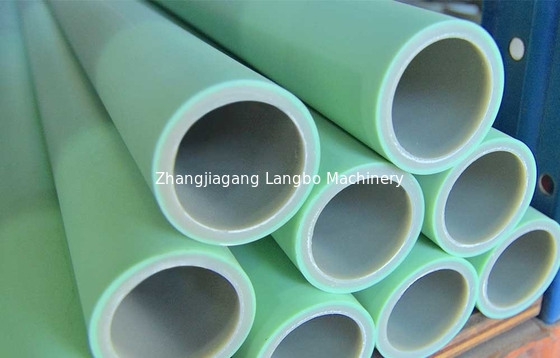

Stacking & Packaging

The finished PE pipes are collected by a stacking machine or manually packed for storage and shipment.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
