PE Pipe Extrusion Making Machine Extruder Line

PE Pipe Extrusion Making Machine Extruder Line

APPLICATION:

1. The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.
2. Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
3. Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.
4. Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

Dripper sorting & inserting machine

Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply

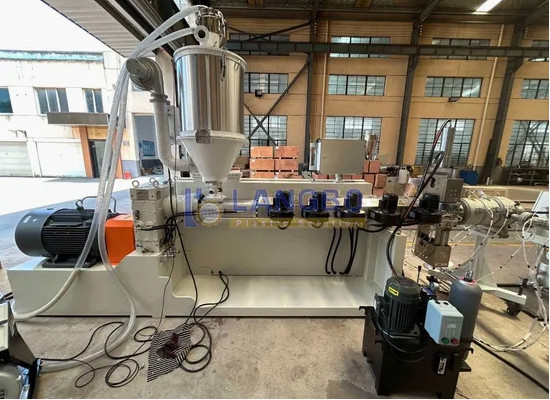

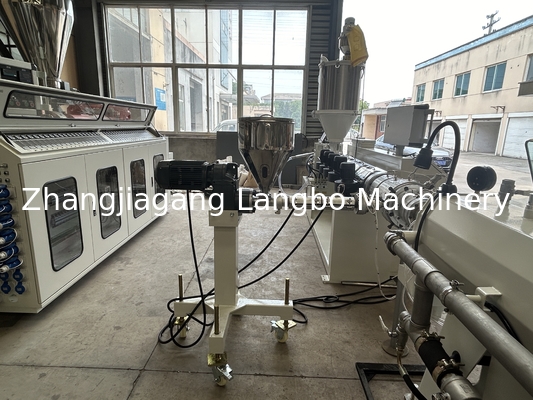

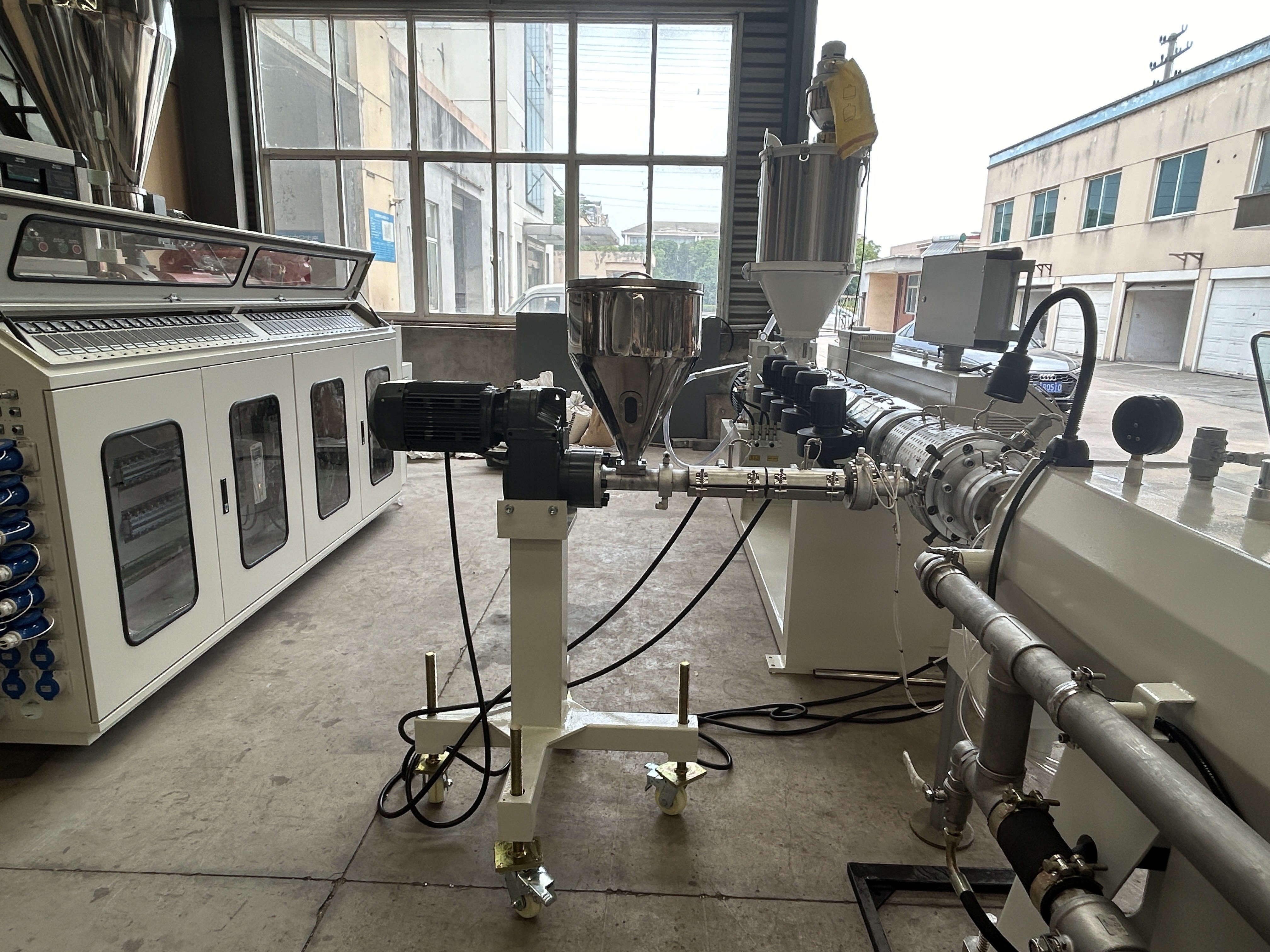

Extruder & Cross Die Head

Extruder driven by AC motor; with ABB converter,

SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

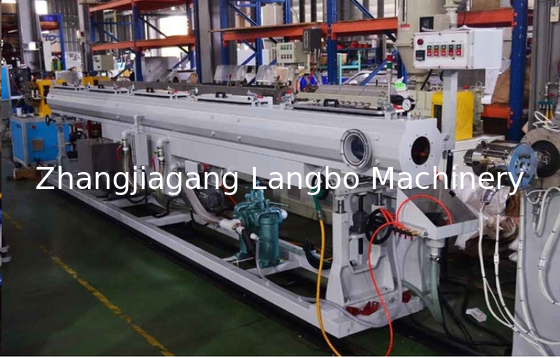

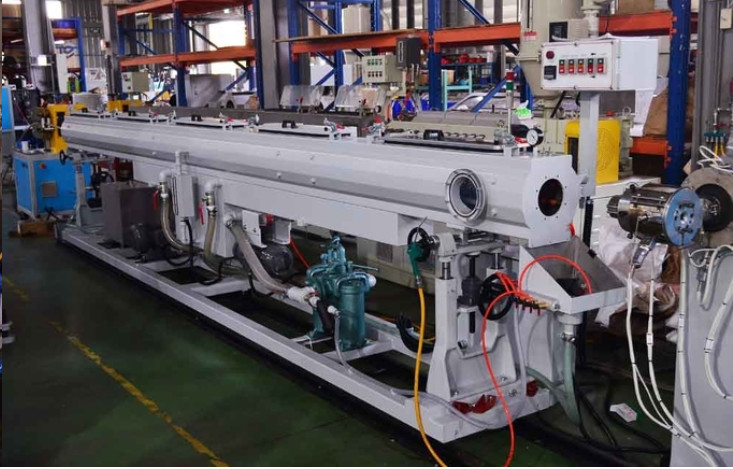

Vacuum tank & Cooling tank

made by high quality SS304; high quality vacuum pump & water pump

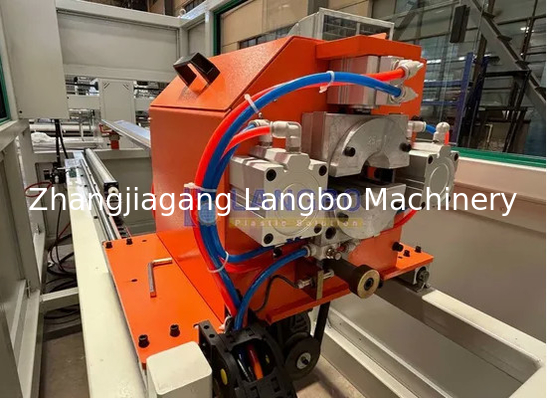

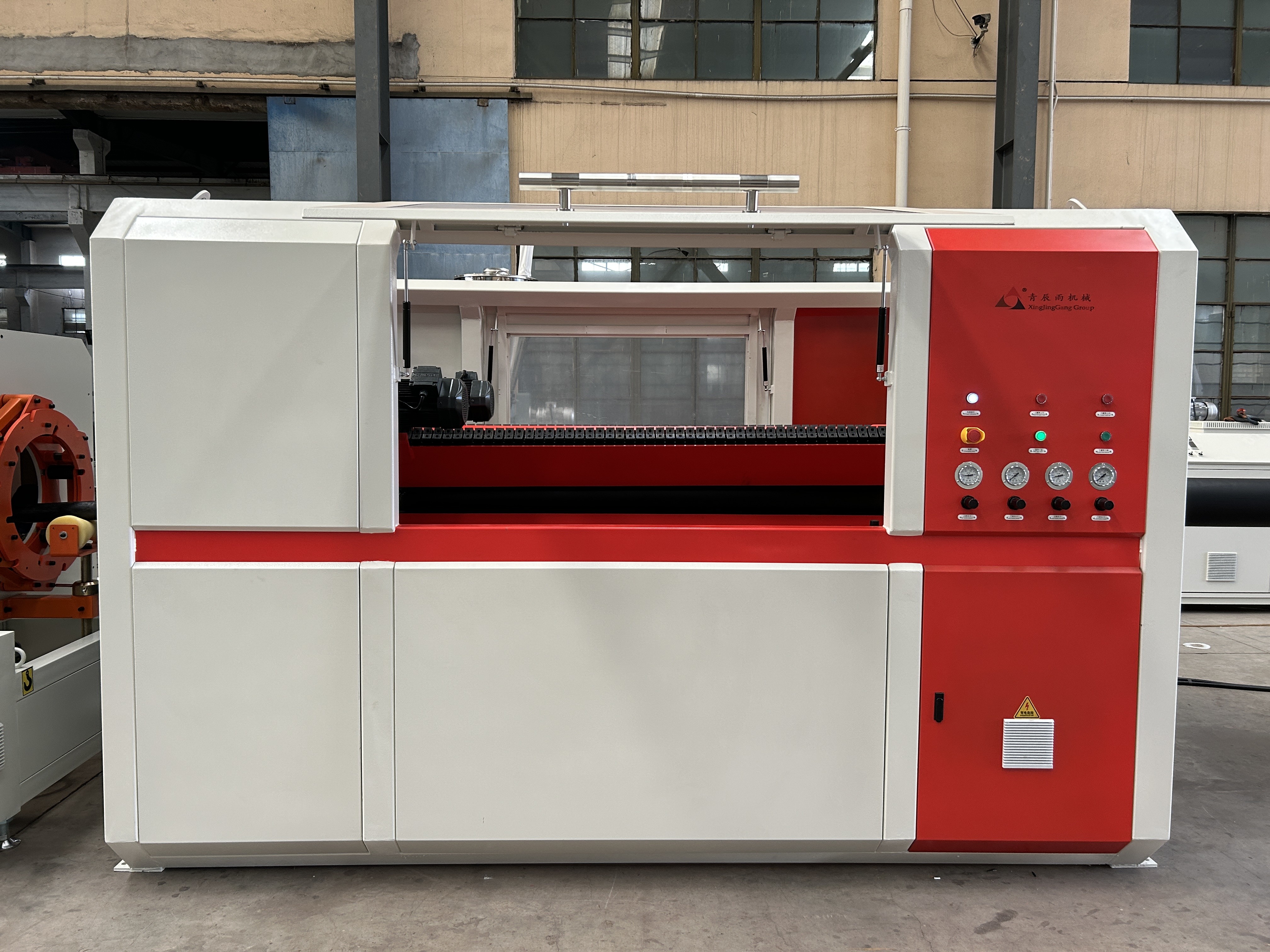

Perforating Machine & Tractor

driven by servo motor and servo controller, with high precision punching degree

Drip Tape Winding Machine

servo type traversing device, driven by SIEMENS servo motor

with tension control device to auto adjust winding speed

Advantages of PE Pipe Extrusion Line

High-output extruder with advanced screw design for uniform melting and extrusion.

Vacuum calibration system for precise diameter control and smooth surface finish.

Advanced cooling system to ensure optimal product solidification.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
