PE Plastic Water Supply Energy Extrusion Pipe Tube Production Line Extruder Machine
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
Energy pe pipe extrusion machine,Water Supply pe pipe production line |
||
Product Description
PE Plastic Water Supply Energy Extrusion Pipe Tube Production Line Extruder Machine
APPLICATION:
Our PE Plastic Water Supply Energy Extrusion Pipe/Tube Production Line is a high-efficiency, automated system designed for manufacturing high-quality polyethylene (PE) pipes used in water supply, irrigation, and energy applications. This production line ensures excellent durability, pressure resistance, and corrosion-free performance, making it ideal for municipal, industrial, and agricultural water distribution systems.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
PE Production Flow:

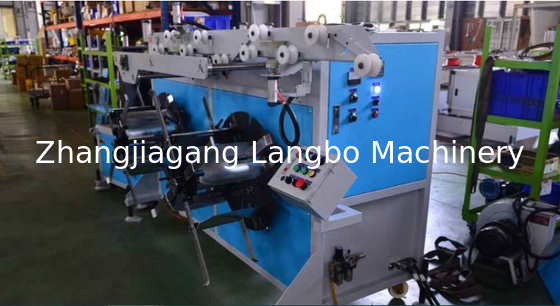

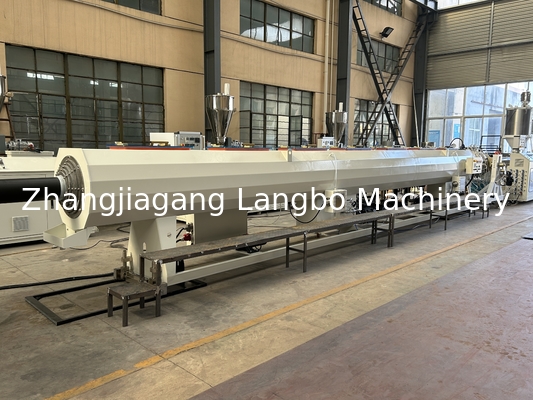

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler
1.Raw Material Feeding
PE pellets (HDPE/PP) are fed into the hopper of the extruder.
Optional: Color masterbatch can be added for colored pipes.
2. Melting & Extrusion

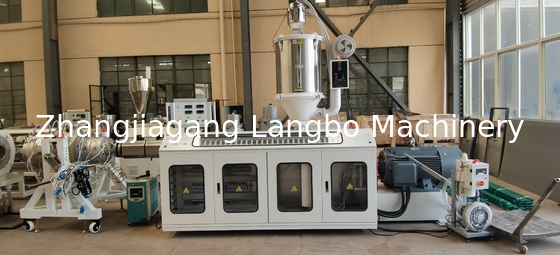

The material is heated and melted in the single/twin-screw extruder (depending on model).
Molten plastic is pushed through the die head to form a continuous pipe shape.
3. Corrugation Molding
The pipe enters the corrugator mold, where a vacuum forming system shapes it into a corrugated structure (bellows design).
Cooling water tanks solidify the pipe structure instantly.
4. Traction & Cutting

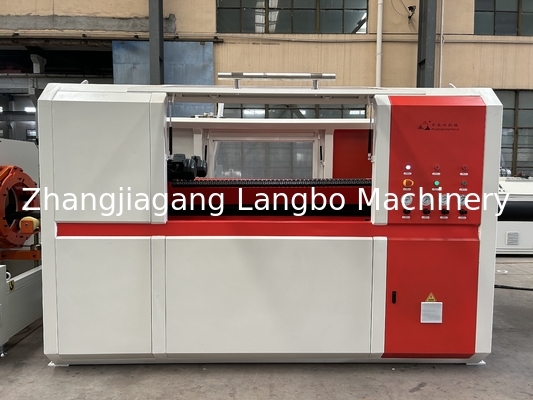

The haul-off unit pulls the pipe at a controlled speed.

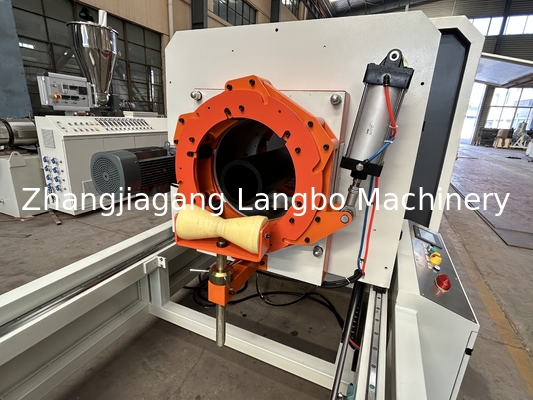

An automatic cutting machine slices the pipe into desired lengths (e.g., 6m, 12m).
5. Stacking & Packaging
Finished pipes are collected and stacked by an automatic stacking machine.
Bundled for storage or shipment.
Applications:
Drinking water supply pipelines
Agricultural irrigation systems
Industrial fluid transportation
Gas distribution networks
Mining and drainage systems
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
we will offer customers spare parts at cost prices all life long of the machines.
