Automatic Plastic HDPE PE Water Cable Pipes Extruder Extrusion Making Machine

Automatic Plastic HDPE PE Water Cable Pipes Extruder Extrusion Making Machine


APPLICATION:

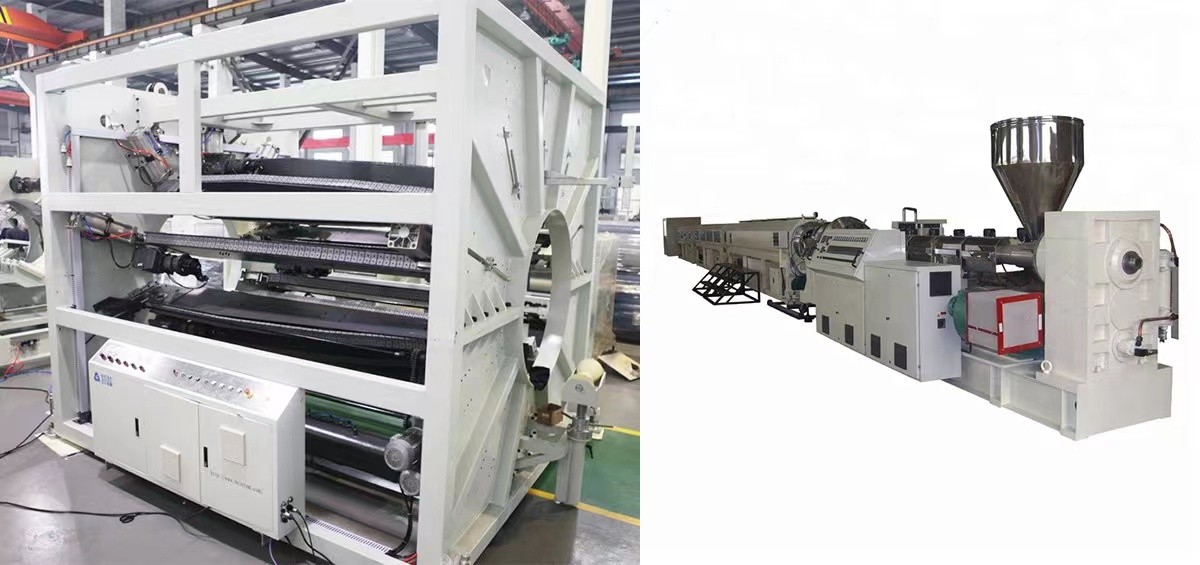

The production line is mainly used to produce PE plastic pipes, such as HDPE water supply pipes and MPP pipes which are widely used in municipal, telecommunications, electrical power, gas, water, heat and other pipeline projects. The PE pipe extrusion line consists of vacuum feeder, high efficient single screw extruder, extruder mold, vacuum calibration tank, spray cooling tank, haul off machine, planetary cutting machine and PLC micro control system. it is reliable quality with high performance.

PE PIPE PRODUCTION SPECIFICATIONS:


PE Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

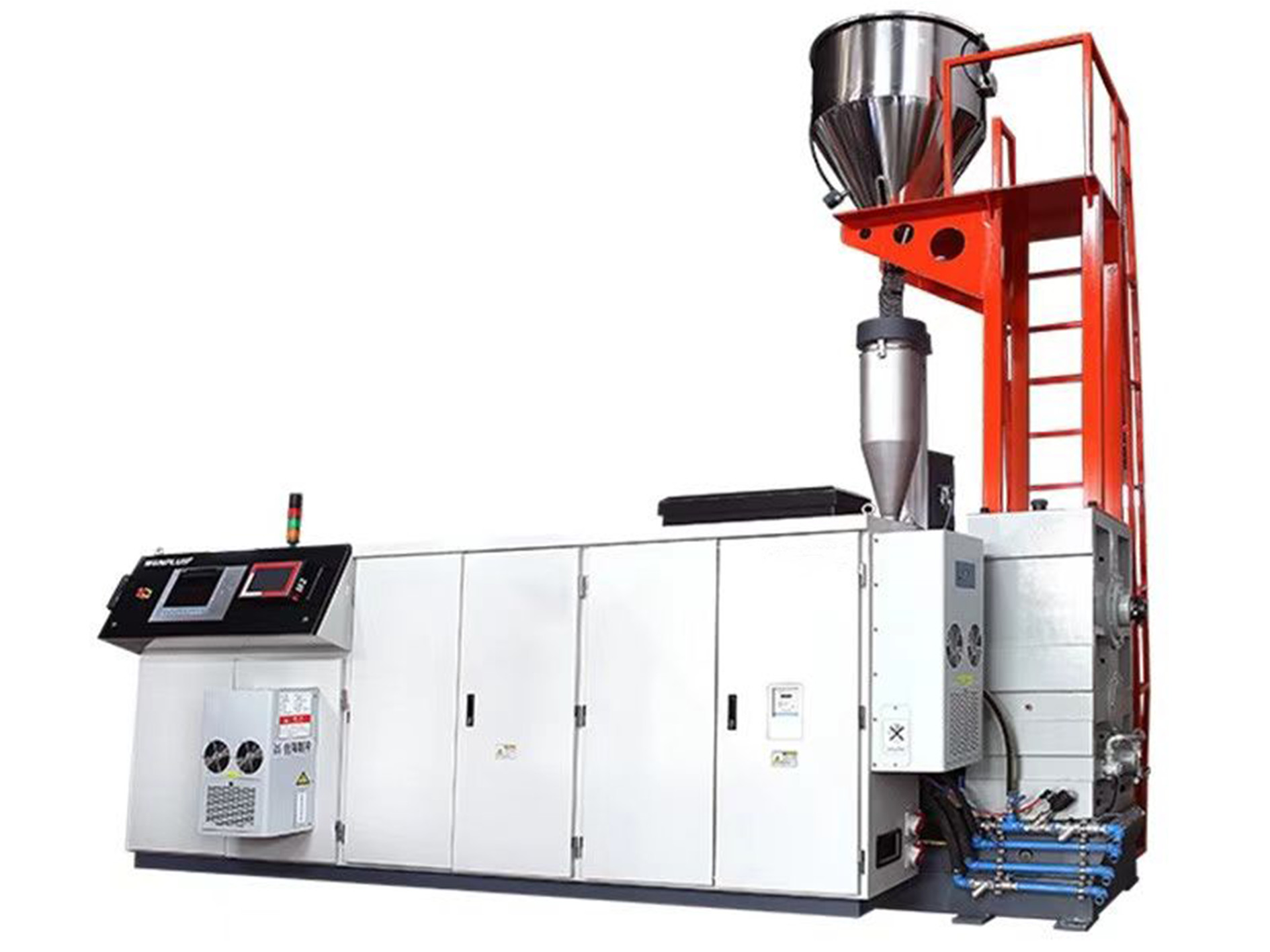

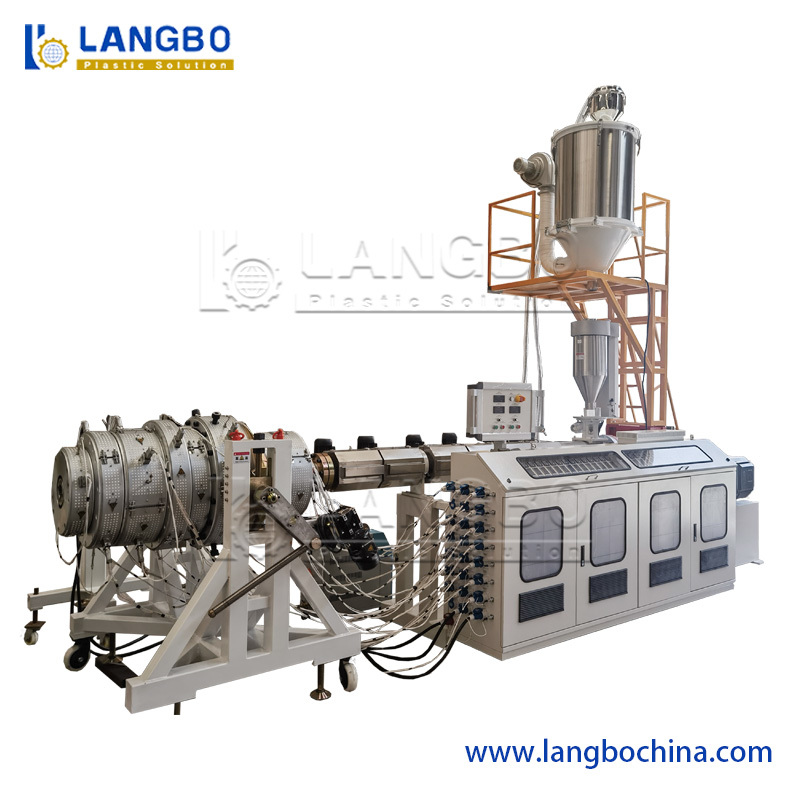

Melting & Extrusion

The material is heated and melted in the extruder barrel via a rotating screw.

The molten plastic is pushed through a die head to form a continuous pipe shape.

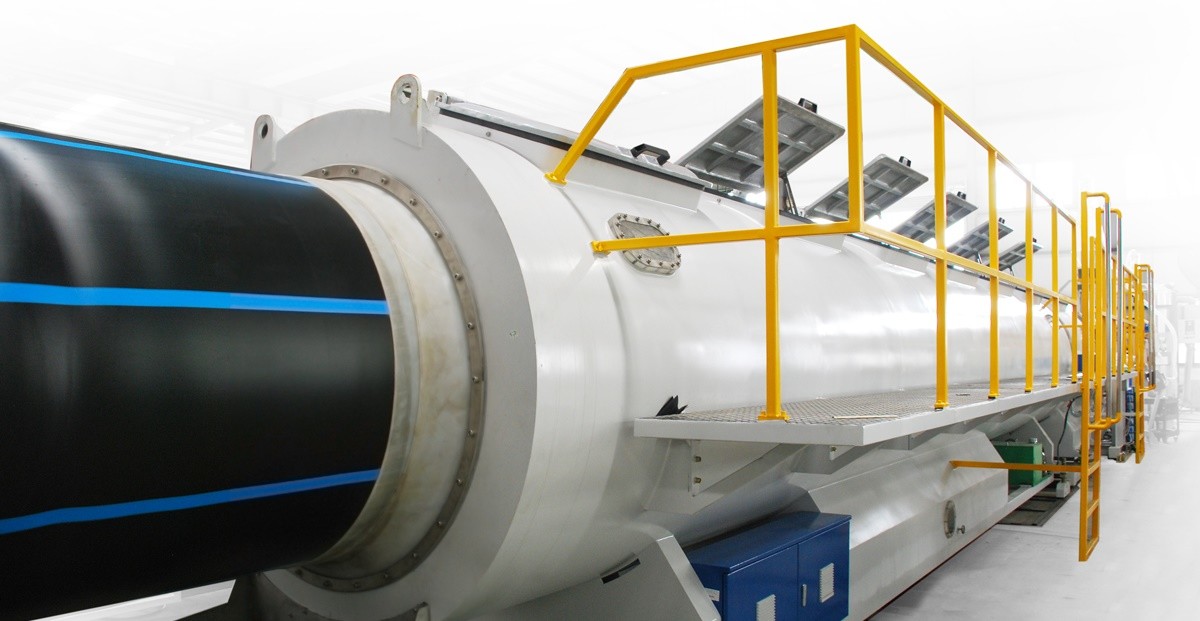

Vacuum Calibration

The pipe passes through a vacuum tank to ensure precise diameter and wall thickness.

Cooling System

The pipe is cooled in a water bath or spray cooling system to solidify its structure.

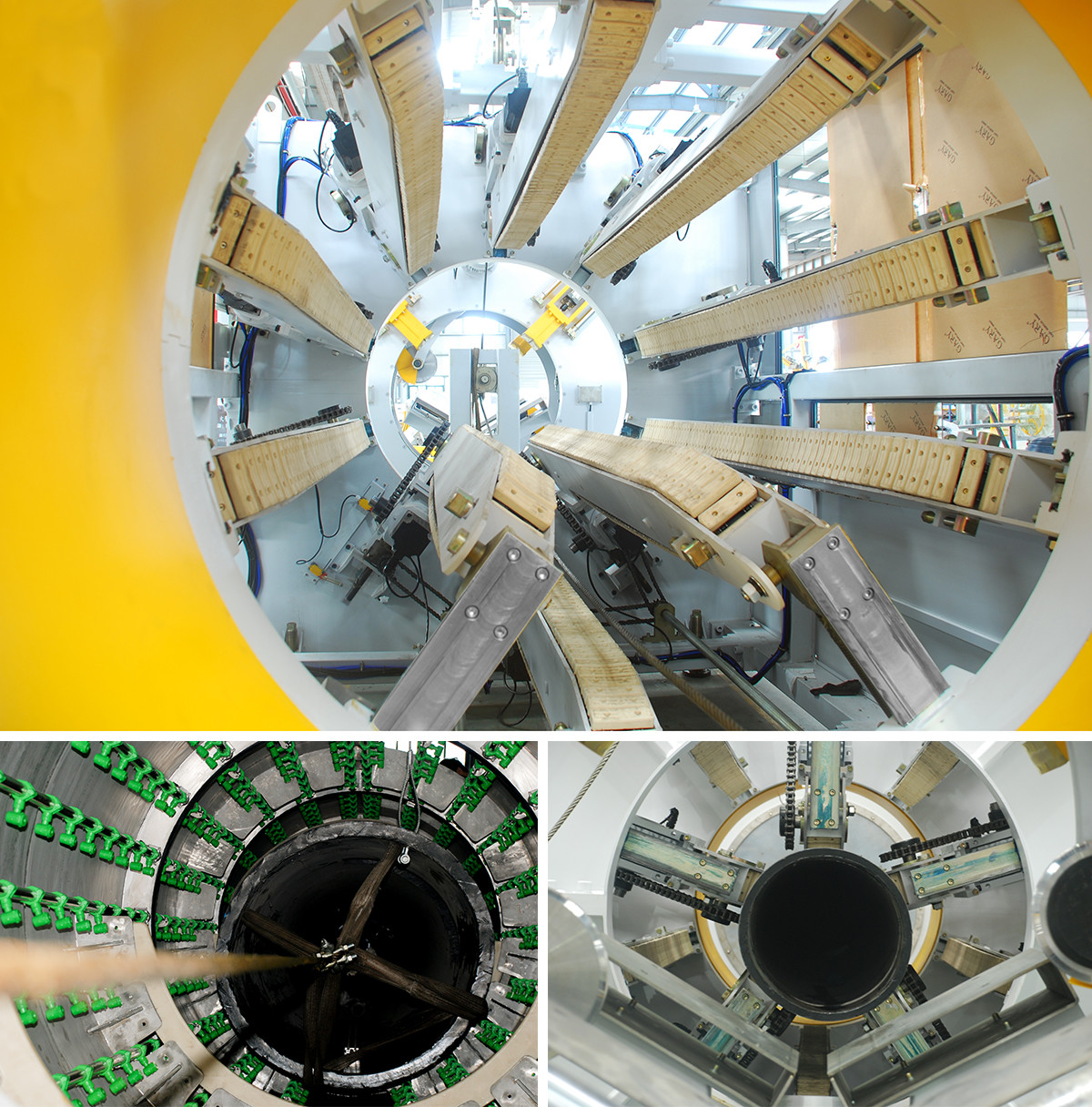

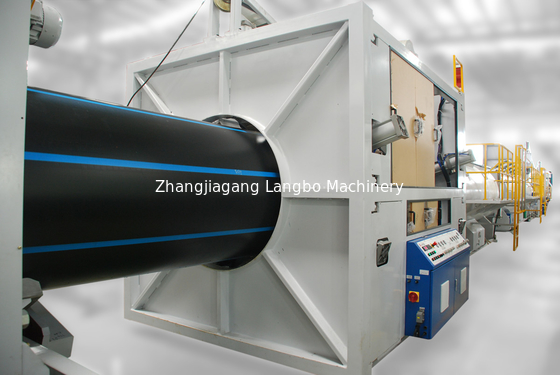

Haul-Off & Traction

A caterpillar haul-off unit pulls the pipe at a controlled speed for uniform thickness.

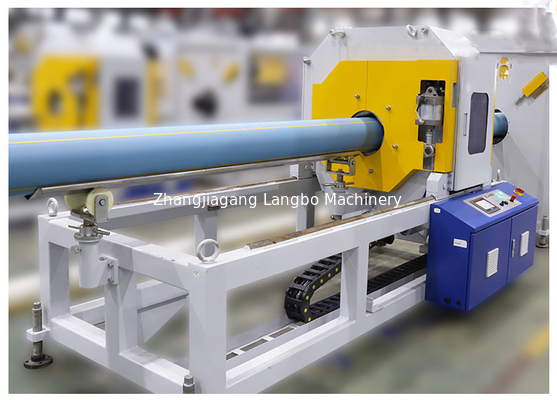

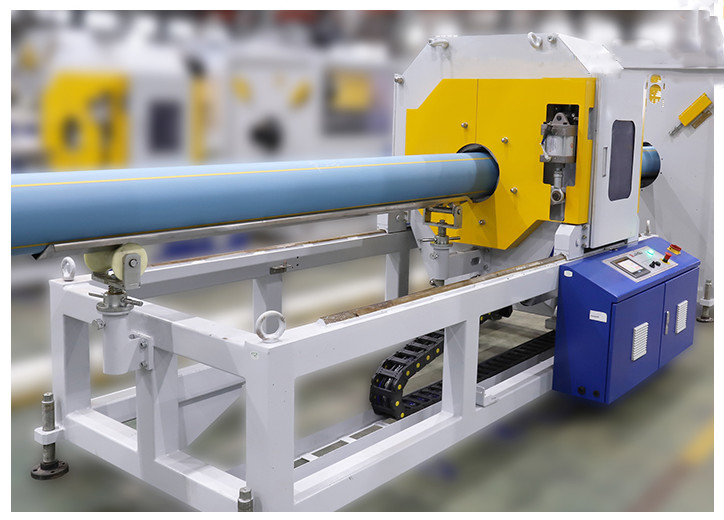

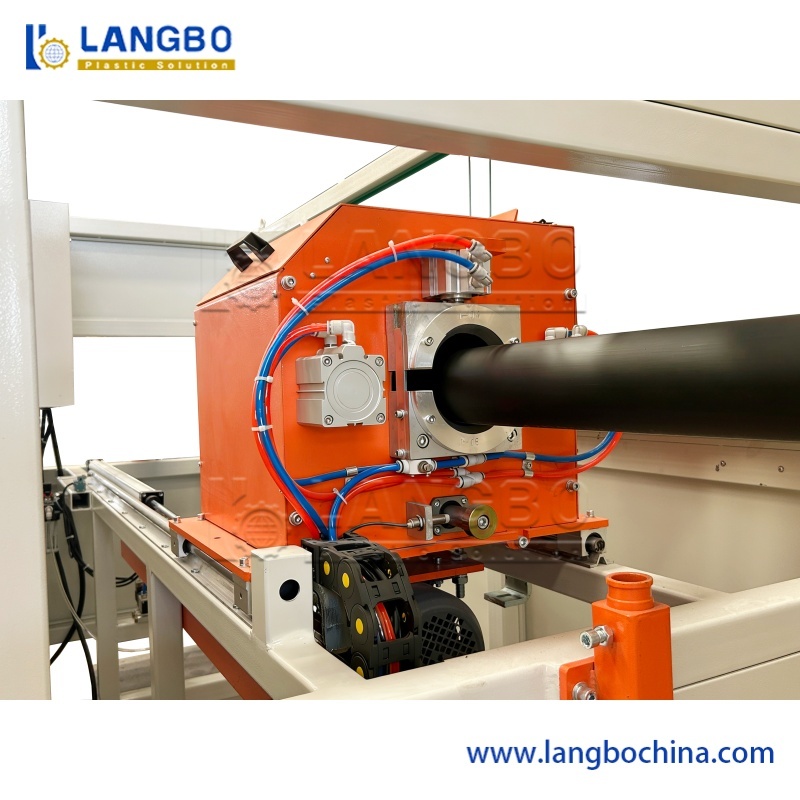

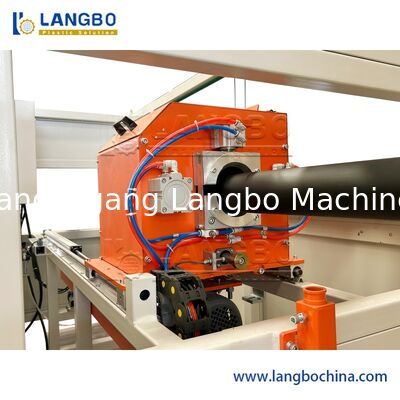

Cutting & Length Measurement

An automatic cutting saw trims the pipe to the required length (e.g., 4m, 6m, or custom sizes).

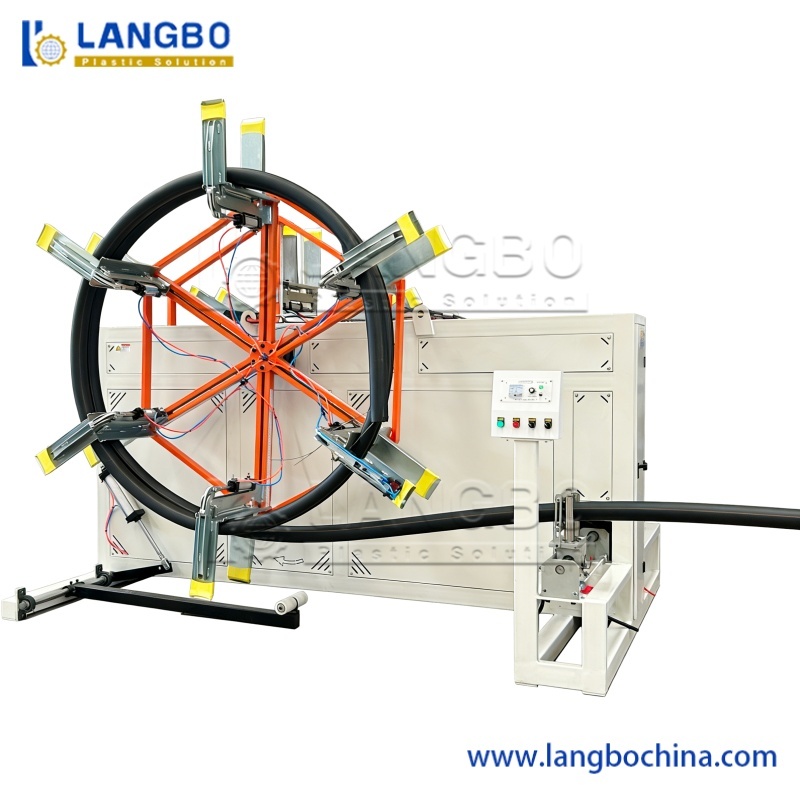

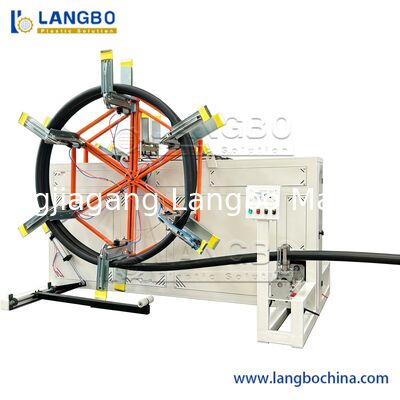

Stacking & Packaging

Finished pipes are stacked or coiled (for smaller diameters) and prepared for packaging.

Quality Inspection

Each pipe undergoes checks for diameter, wall thickness, and surface smoothness.


PE Pipe Extrusion Machine Main Features:
*PLC control, high automation;
*Adopting specialized screw with good plasticizing effect.
*Vacuum calibration, constant temperature control, eliminating pipe stress;
*Adopting co-extrusion head to add color line;
*High extrusion capacity, low and equal temperature of melt.




PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
we will offer customers spare parts at cost prices all life long of the machines.
