PE Medical Pipe Extrusion Line Plastic Tube Extruder Hose Making Machine

PE Medical Pipe Extrusion Line Plastic Tube Extruder Hose Making Machine

APPLICATION:

The PE Medical Pipe Extrusion Line is a high-precision manufacturing system designed for producing medical-grade plastic tubes, hoses, and pipes with strict quality control. This extrusion line is engineered to meet industry standards for hygiene, durability, and performance, making it ideal for medical fluid transfer, IV tubes, catheters, and other healthcare applications.

Constructed with advanced extrusion technology, the machine ensures smooth, consistent output with excellent dimensional accuracy and surface finish. It features a fully automated process, including extrusion, cooling, sizing, printing (optional), cutting, and coiling/winding, ensuring high efficiency and minimal human intervention.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Pipe Extrusion Line Process Flow

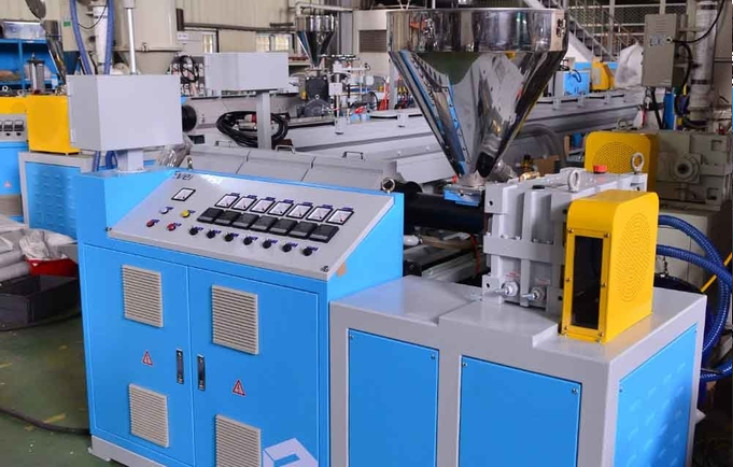

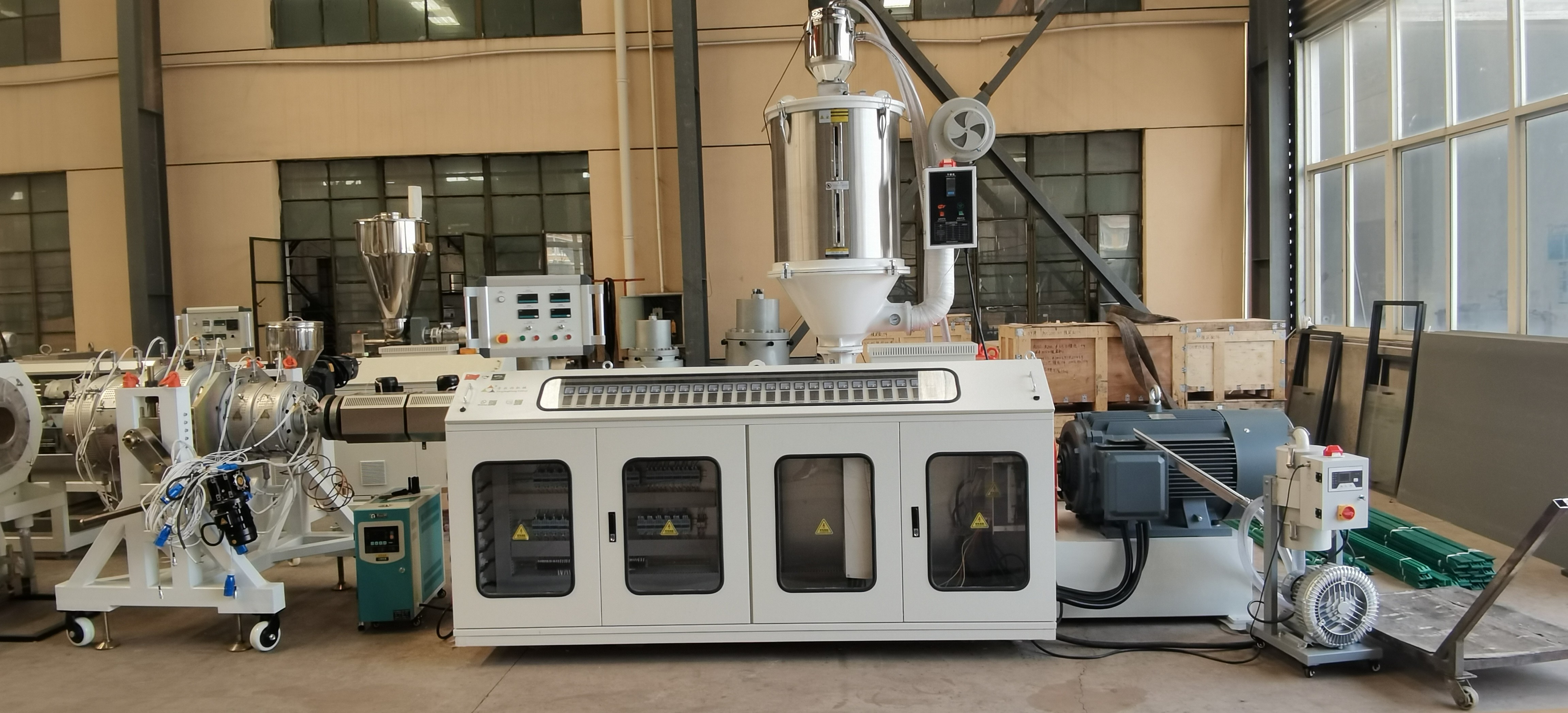

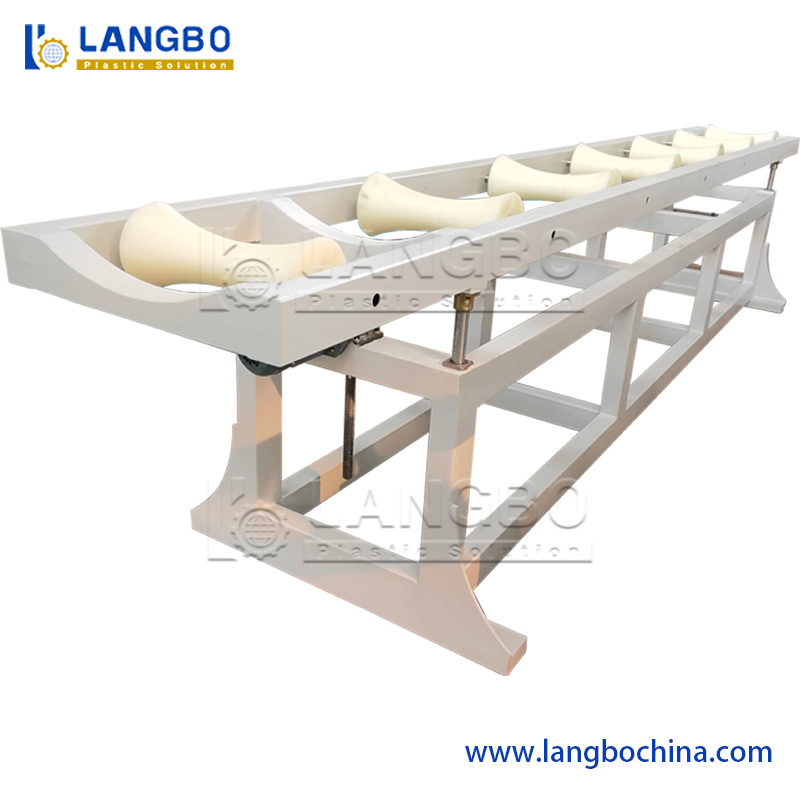

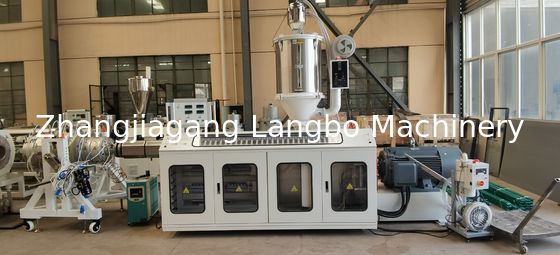

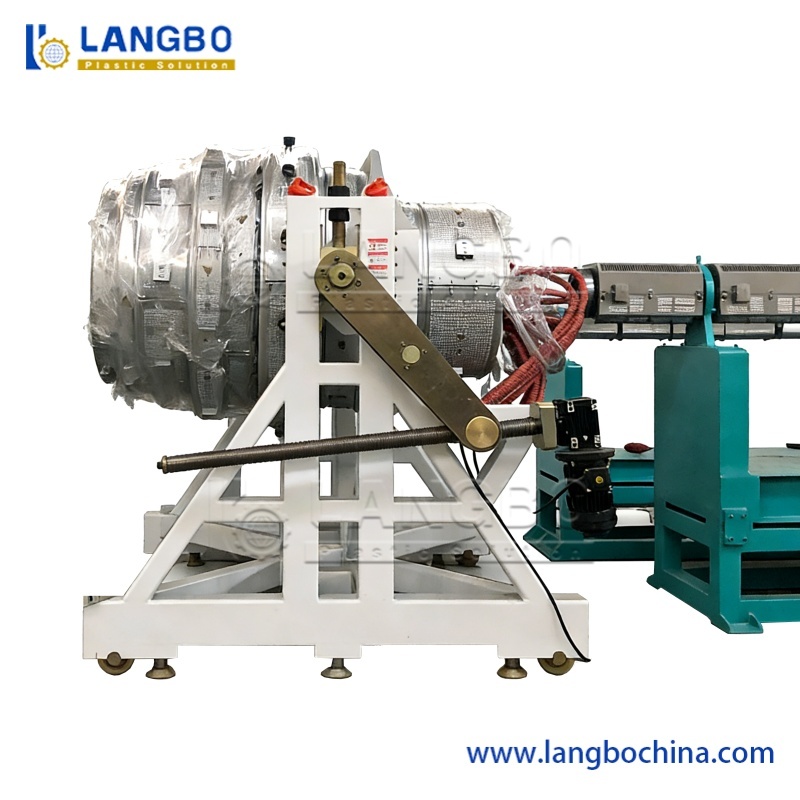

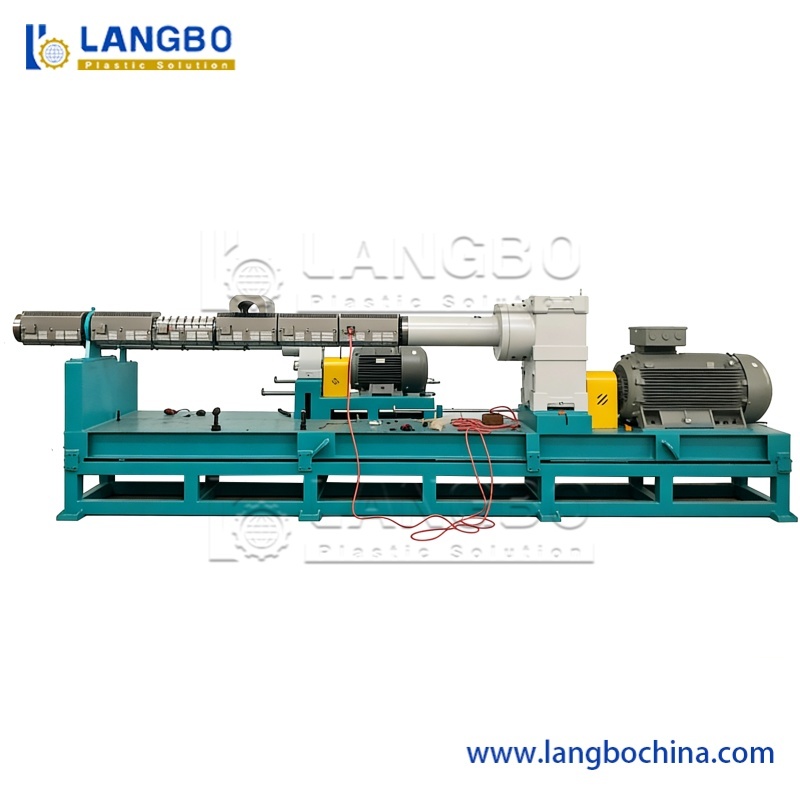

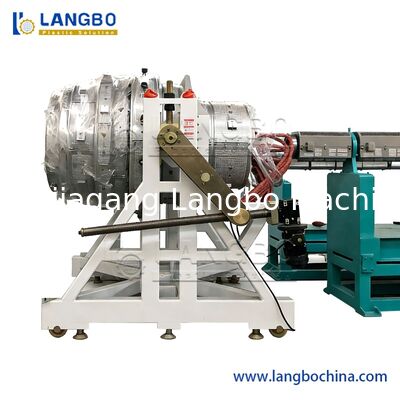

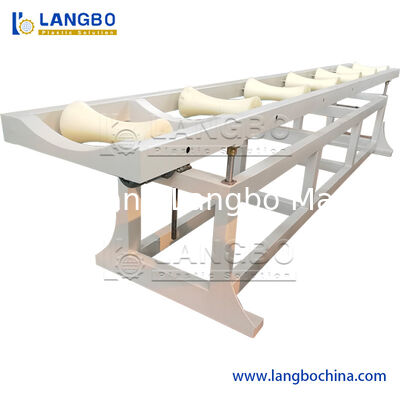

SINGLE-SCREW EXTRUDER---DIE HEAD & MOULD---VACUUM WATER COOLING TANK---WATER COOLING TANK---TRACTION---CUTTING MACHINE---AUTOMATIC UNLOADING RACK---SINGLE POSITION WINDER

Material Preparation

PE resin pellets are dried (if necessary) and fed into the hopper of the injection molding machine.

Pipe Sizing & Calibration

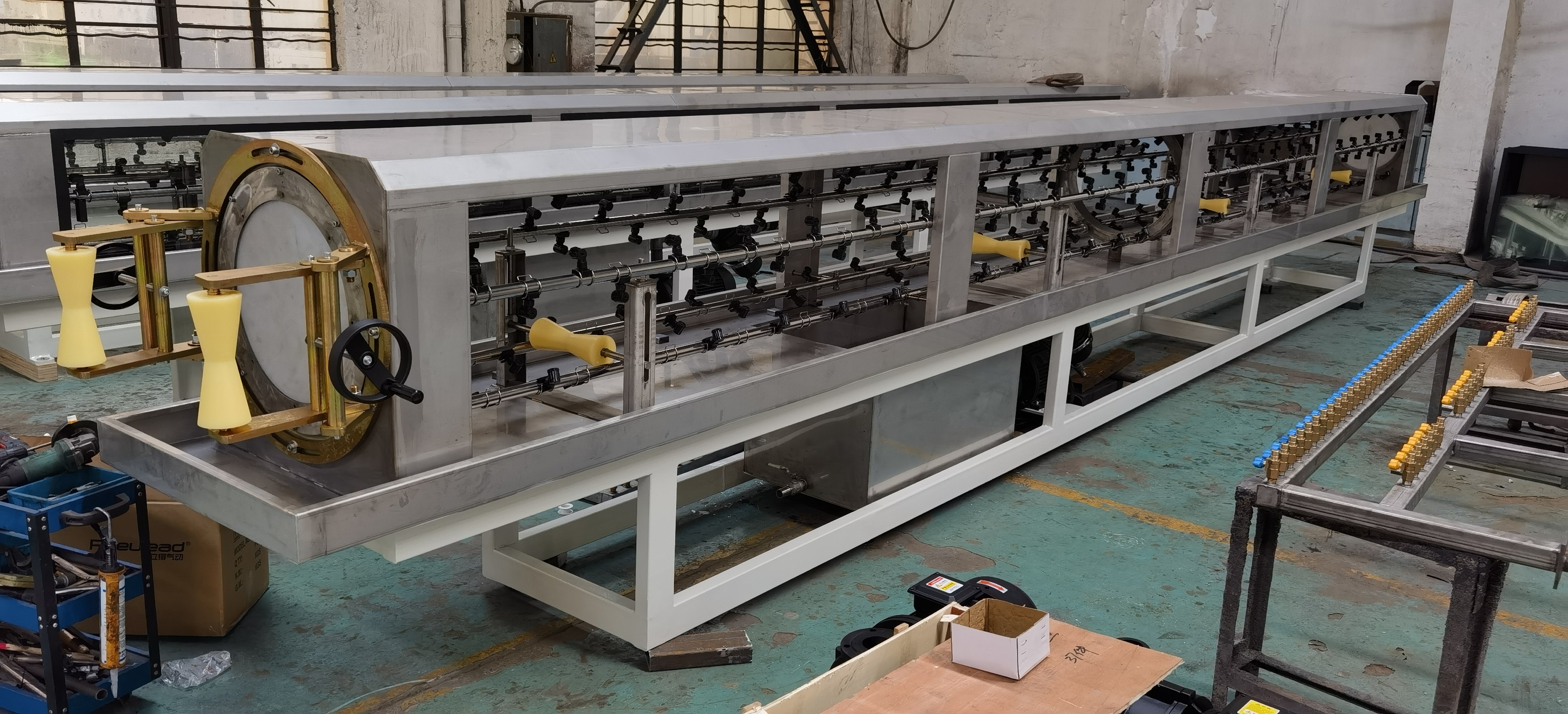

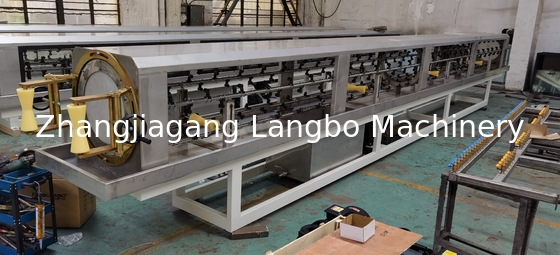

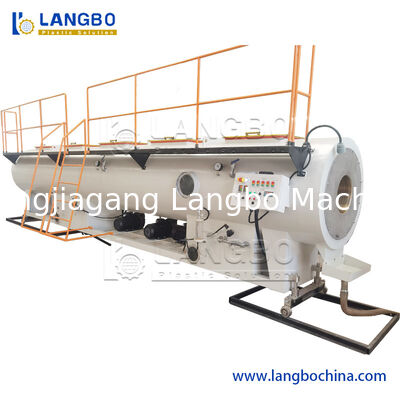

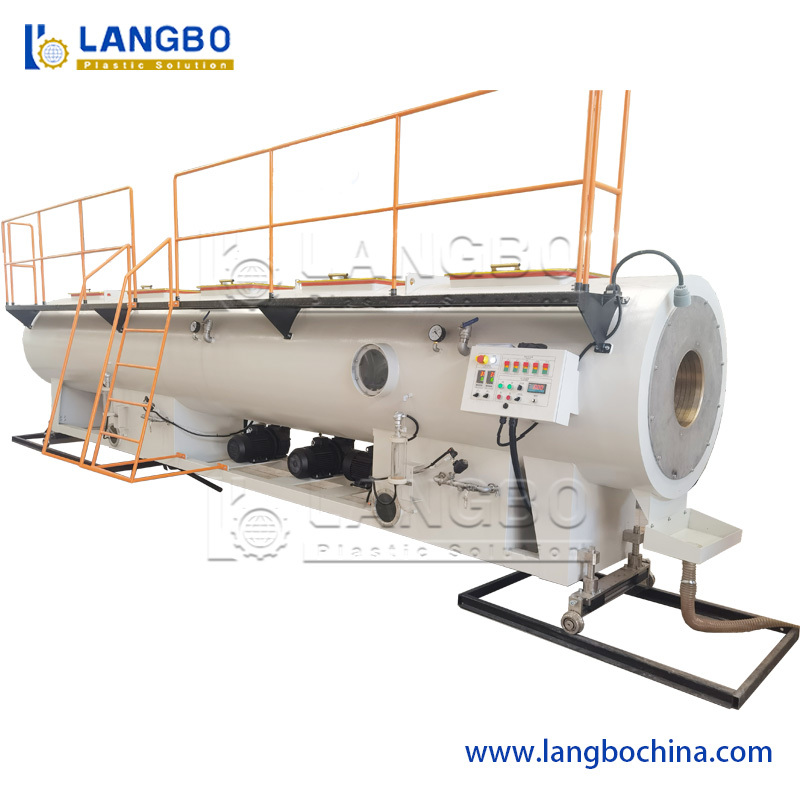

Vacuum Sizing Tank: The hot pipe enters a vacuum tank to solidify its outer diameter (OD) and ensure dimensional accuracy.

Pulling & Haul-Off

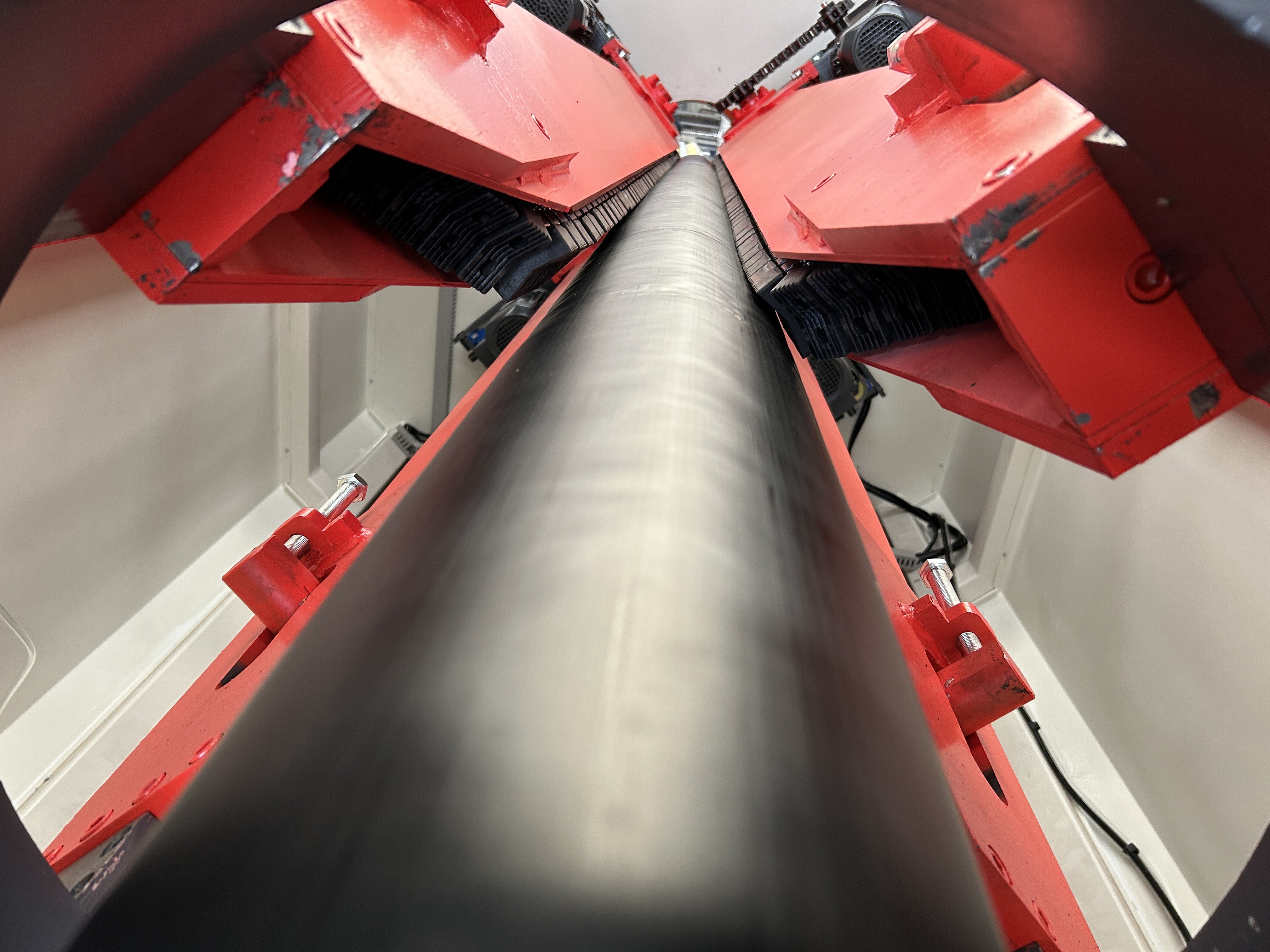

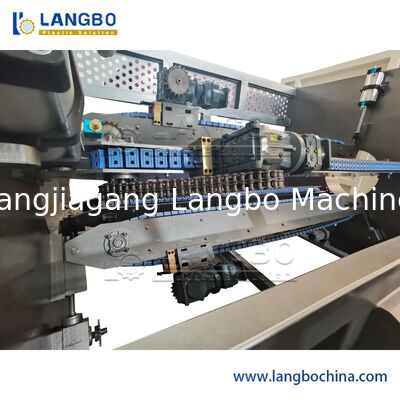

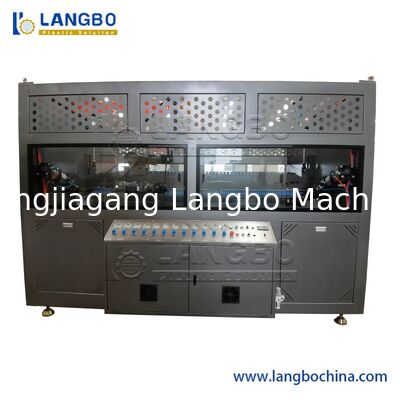

Haul-Off Unit: Motorized caterpillar tracks pull the pipe at a controlled speed, synchronizing with extrusion output.

Cutting & Stacking

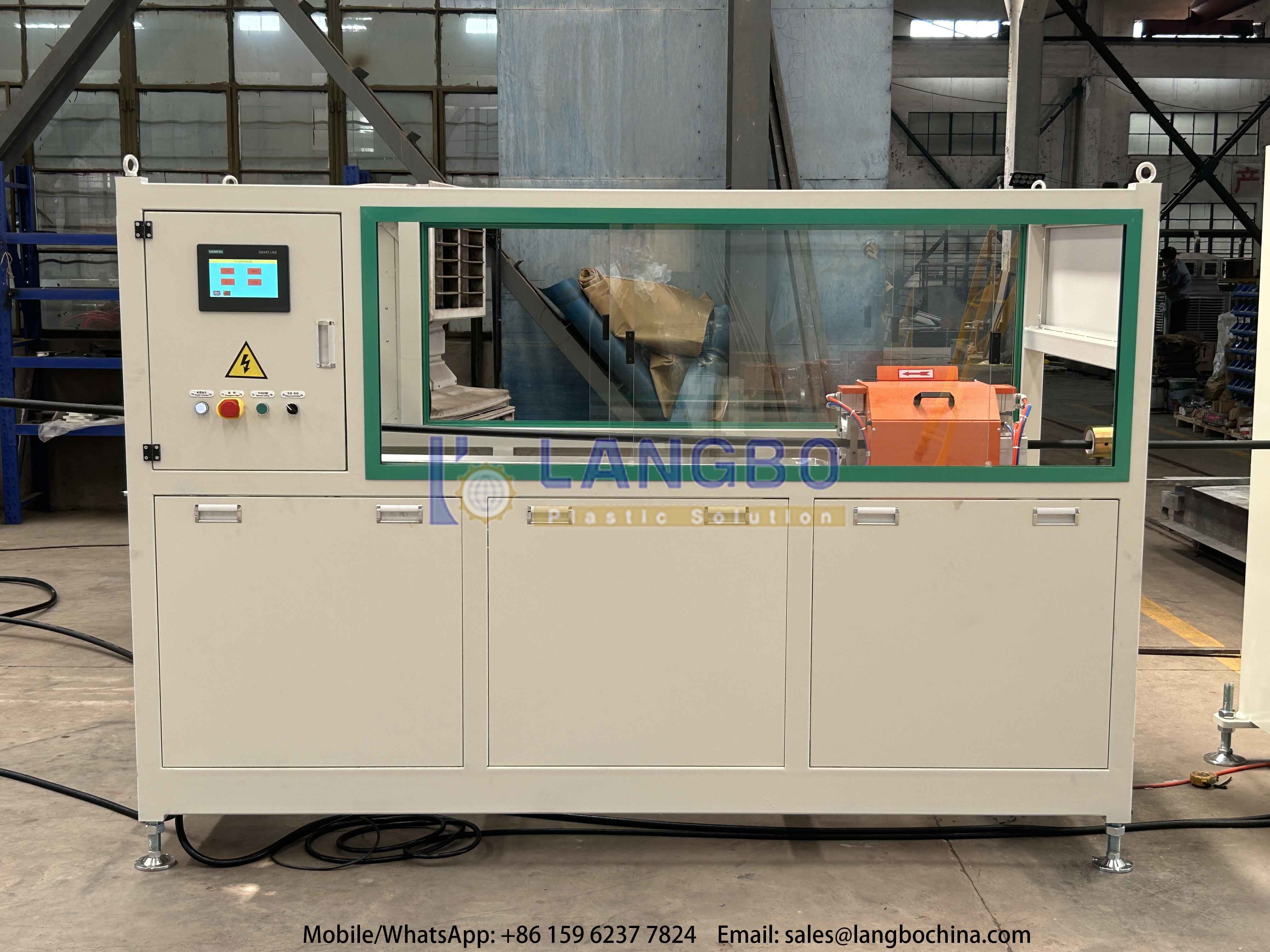

Cutting Saw: An automatic cutter slices the pipe to specified lengths (e.g., 6m, 12m).

Quality Control

Wall Thickness Monitoring: Ultrasonic/laser sensors verify uniformity.

Key Advantages of PE Pipe Extrusion Line

High-Precision Extrusion: Produces uniform PE (Polyethylene) or other polymer tubes with tight tolerances.

Medical-Grade Compliance: Meets ISO 13485, FDA, or other relevant certifications for medical applications.

Automatic Control System: PLC and touch-screen HMI for easy operation and monitoring.

Efficient Cooling & Sizing: Vacuum calibration and water cooling ensure stable tube dimensions.

Customizable Options: Adjustable extrusion diameter, printing/marking, cutting length, and winding systems.

Energy-Efficient Design: Optimized for low power consumption and high output.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
