Automatic PE Plastic Water Pipe Extruder Cutter Production Line Machine

Automatic PE Plastic Water Pipe Extruder Cutter Production Line Machine

APPLICATION:

The Automatic PE Plastic Water Pipe Extruder Cutter Production Line Machine is a high-efficiency, fully automated system designed for the continuous production and cutting of polyethylene (PE) water pipes. This advanced production line integrates extrusion, cooling, calibration, printing, hauling, and cutting into a seamless process, ensuring consistent pipe quality with precise dimensions and smooth surfaces.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw Material Feeding

PE pellets (HDPE/MDPE) are fed into the hopper of the extruder.

A drying system (optional) removes moisture for better extrusion quality.

Extrusion Process

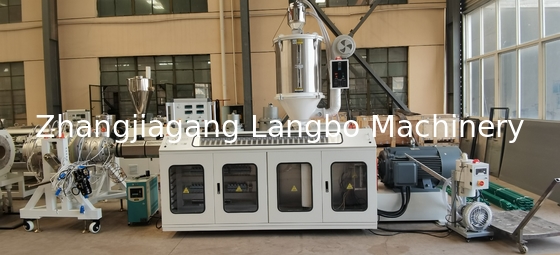

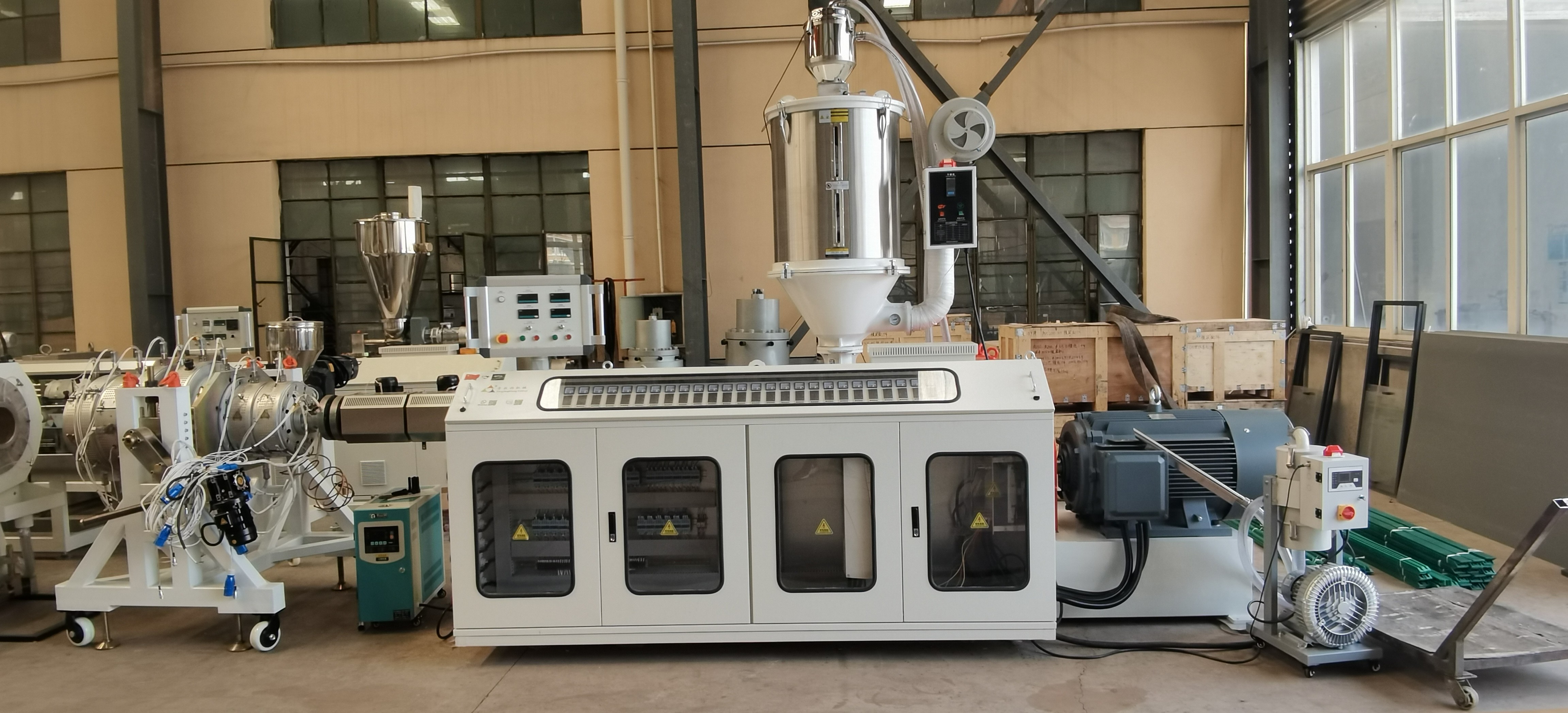

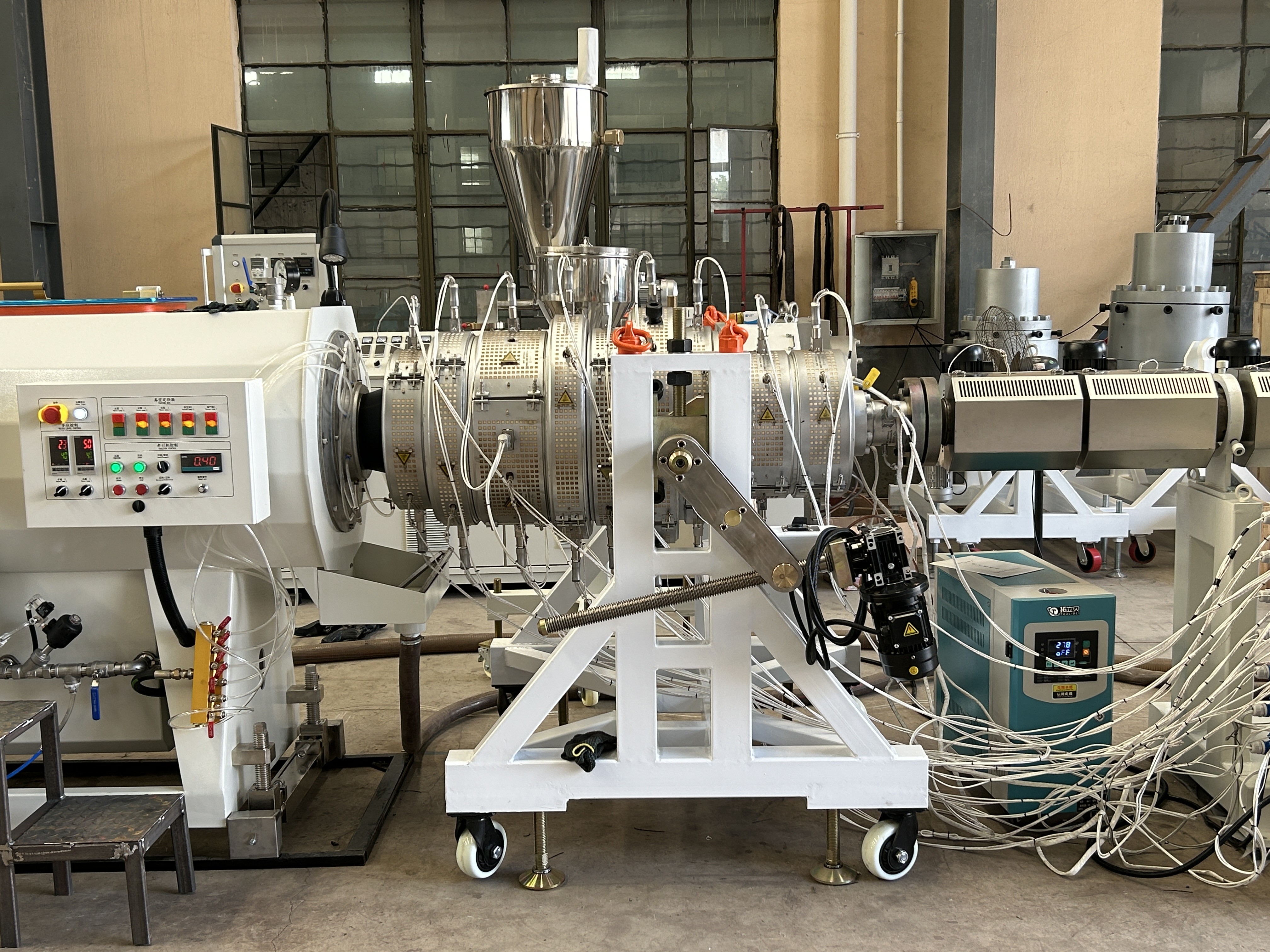

The material is melted in the single/twin-screw extruder at controlled temperatures (160°C–220°C).

The molten PE is pushed through a die head to form a continuous pipe shape.

Vacuum Calibration & Cooling

The pipe passes through a vacuum calibration tank to ensure precise diameter and roundness.

A water cooling system solidifies the pipe for structural stability.

Hauling & Cutting

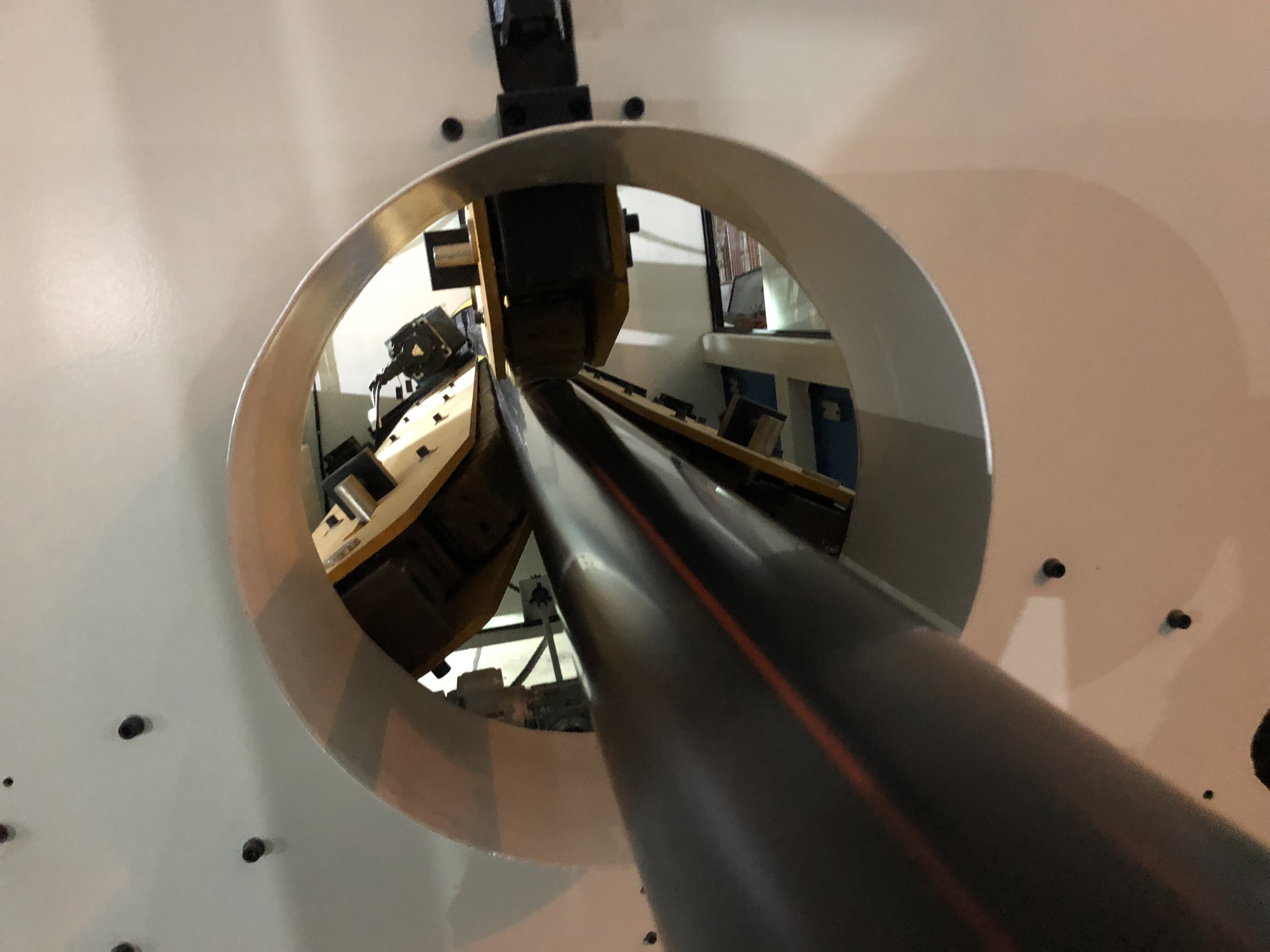

A haul-off unit pulls the pipe at a consistent speed.

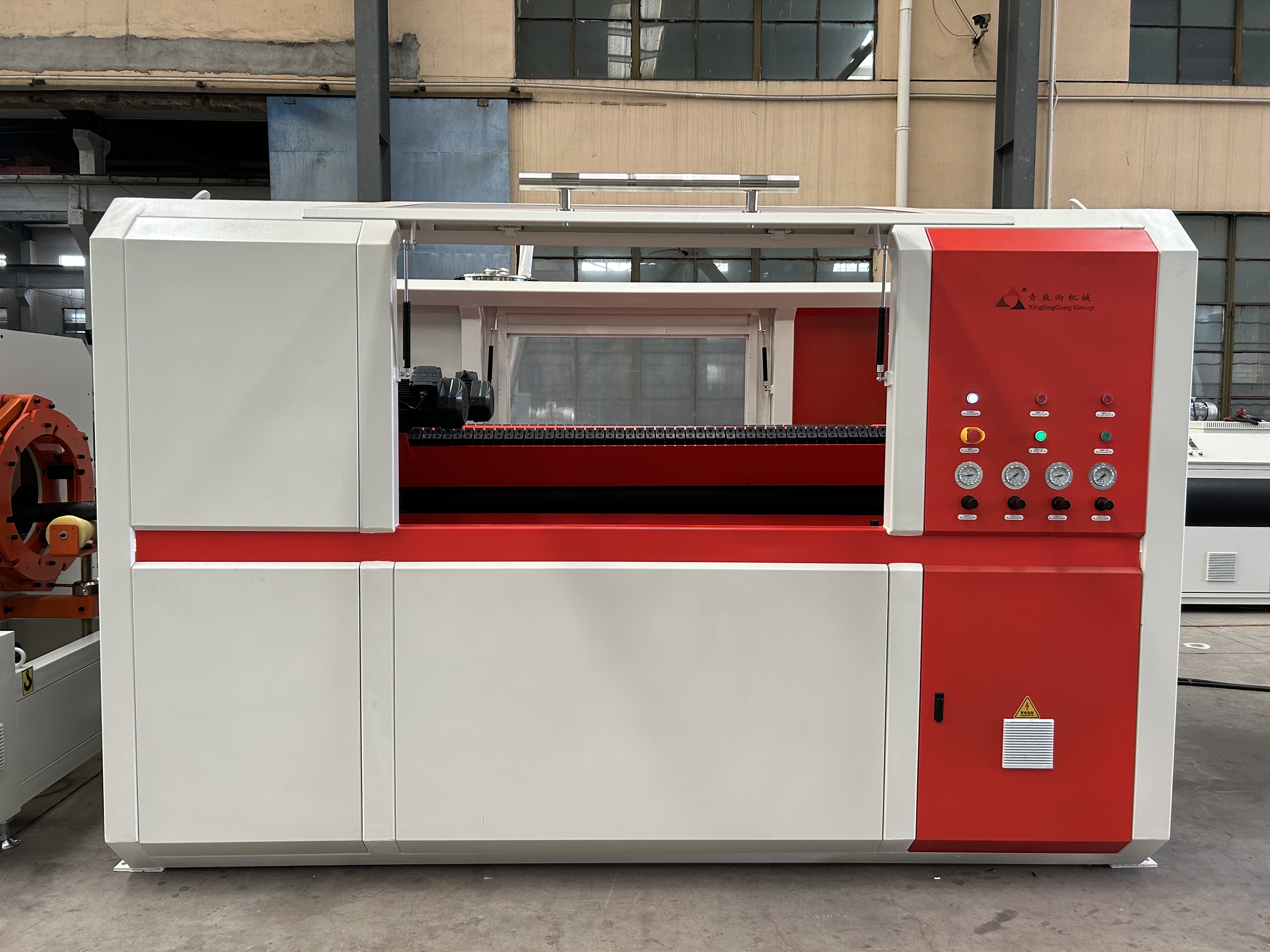

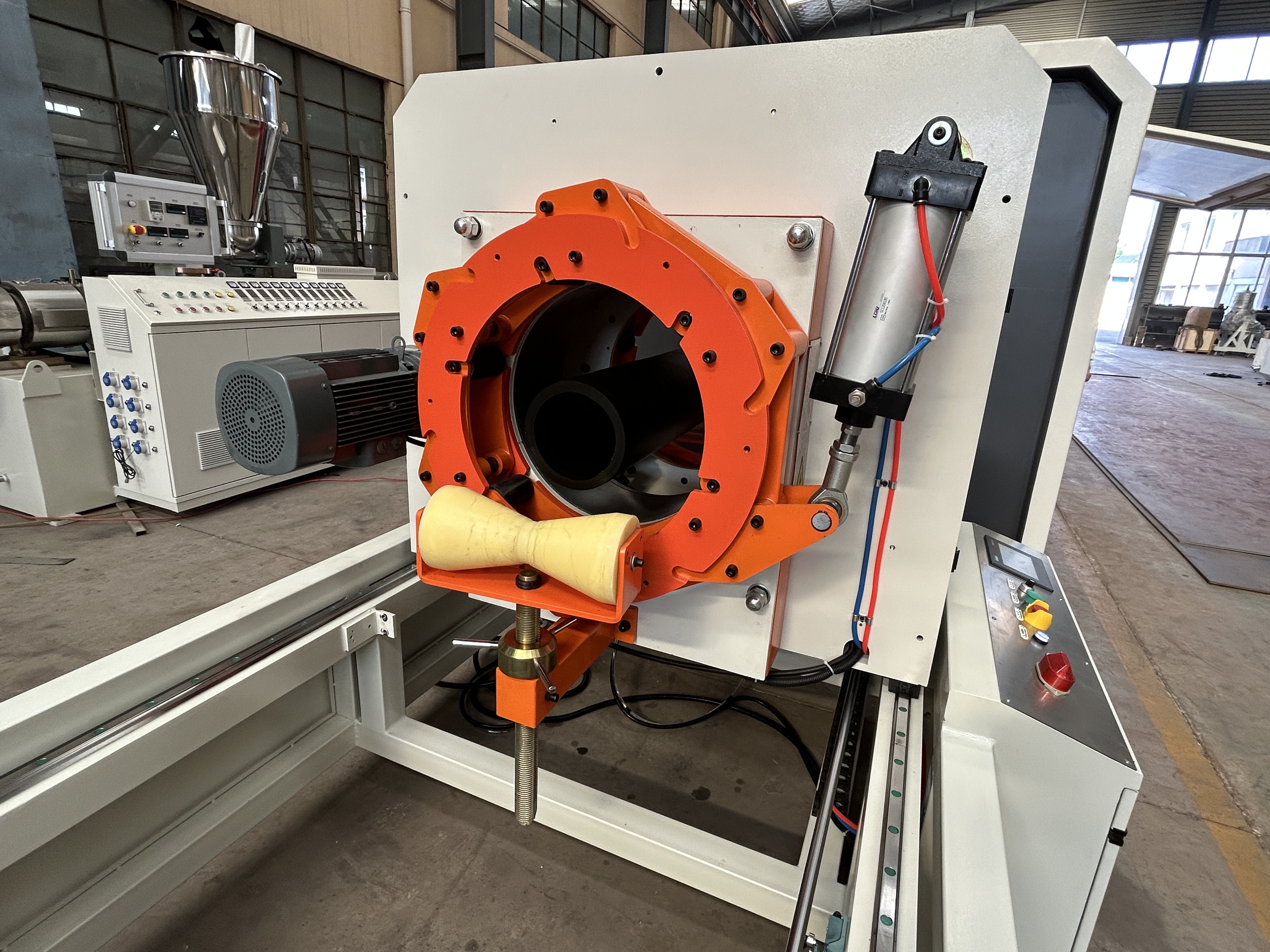

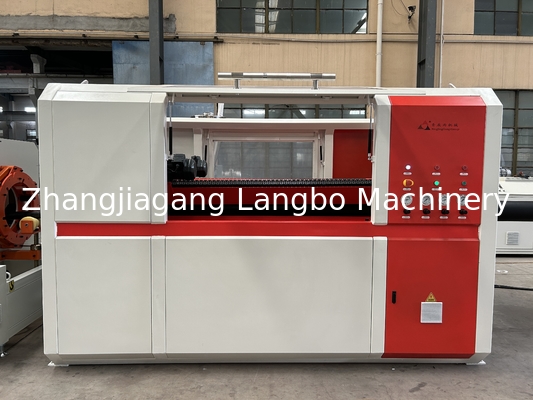

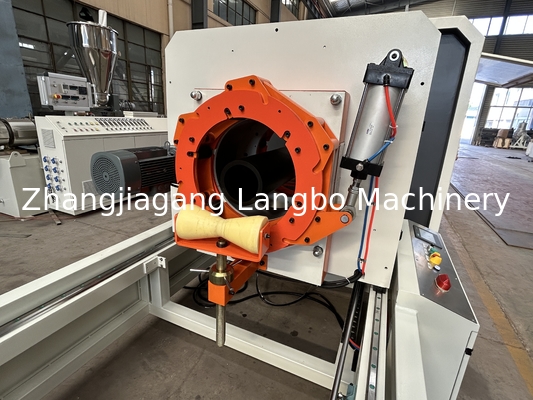

An automatic cutting machine slices the pipe into desired lengths (6m, 12m, or custom sizes).

Printing & Coiling (Optional)

Inkjet printers mark the pipe with specifications (size, pressure rating, manufacturer details).

For smaller pipes (up to Ø63mm), a coiling machine can wind them for compact storage.

Quality Inspection & Packaging

Hydrostatic pressure testing ensures leak-proof performance.

Pipes are stacked or packed in bundles for shipment.

Advantages of PE Pipe Extrusion Line

High-Quality Extrusion: Single or twin-screw extruder for uniform melting and stable pipe formation.

Precision Calibration & Cooling: Vacuum sizing tank and spray cooling system ensure accurate diameter and wall thickness.

Automatic Cutting: Servo-driven cutter for clean, burr-free cuts with adjustable length settings.

PLC Control System: Touchscreen interface for easy operation, monitoring, and adjustment.

Haul-Off & Coiling: Optional haul-off unit or coiler for straight pipes or coiled tubing.

Durable Construction: Robust design with corrosion-resistant components for long service life.

Energy Efficient: Optimized heating and cooling systems reduce power consumption.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
