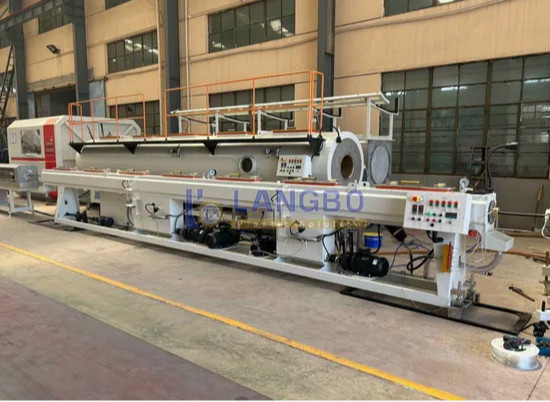

16-63mm PE Plastic Pipe Extruder Machine For Production
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
PE Plastic Pipe Extruder Machine,16-63mm Pipe Extruder Machine,16-63mm pe pipe extrusion line |
||
Product Description
16-63mm PE Plastic Pipe Extruder Machine for Sale
APPLICATION:
PE pipe prodution line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1600mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. It also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Produce process for PE Pipe :
Material →Color Mixer →Automatic Feeder→Hopper Dryer →Single Screw Extruder→ mark line co-extruder →Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank → Laser Printer → Haul-off Unit → Cutter →Stacker or Winding machine
Material Feeding
PE resin pellets (HDPE/LDPE) are fed into the hopper.
Melting & Extrusion

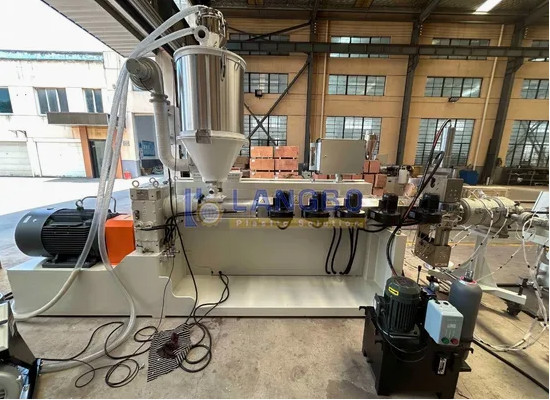

The single-screw extruder heats and melts the plastic, pushing it through the die head to form a continuous pipe.
Vacuum Sizing & Calibration
The molten pipe passes through a vacuum sizing tank to ensure precise diameter and roundness.
Cooling System
The pipe is cooled in a water bath or spray cooling chamber to solidify its structure.
Hauling & Traction
The puller unit grips and pulls the pipe at a controlled speed for consistent thickness.
Cutting & Winding

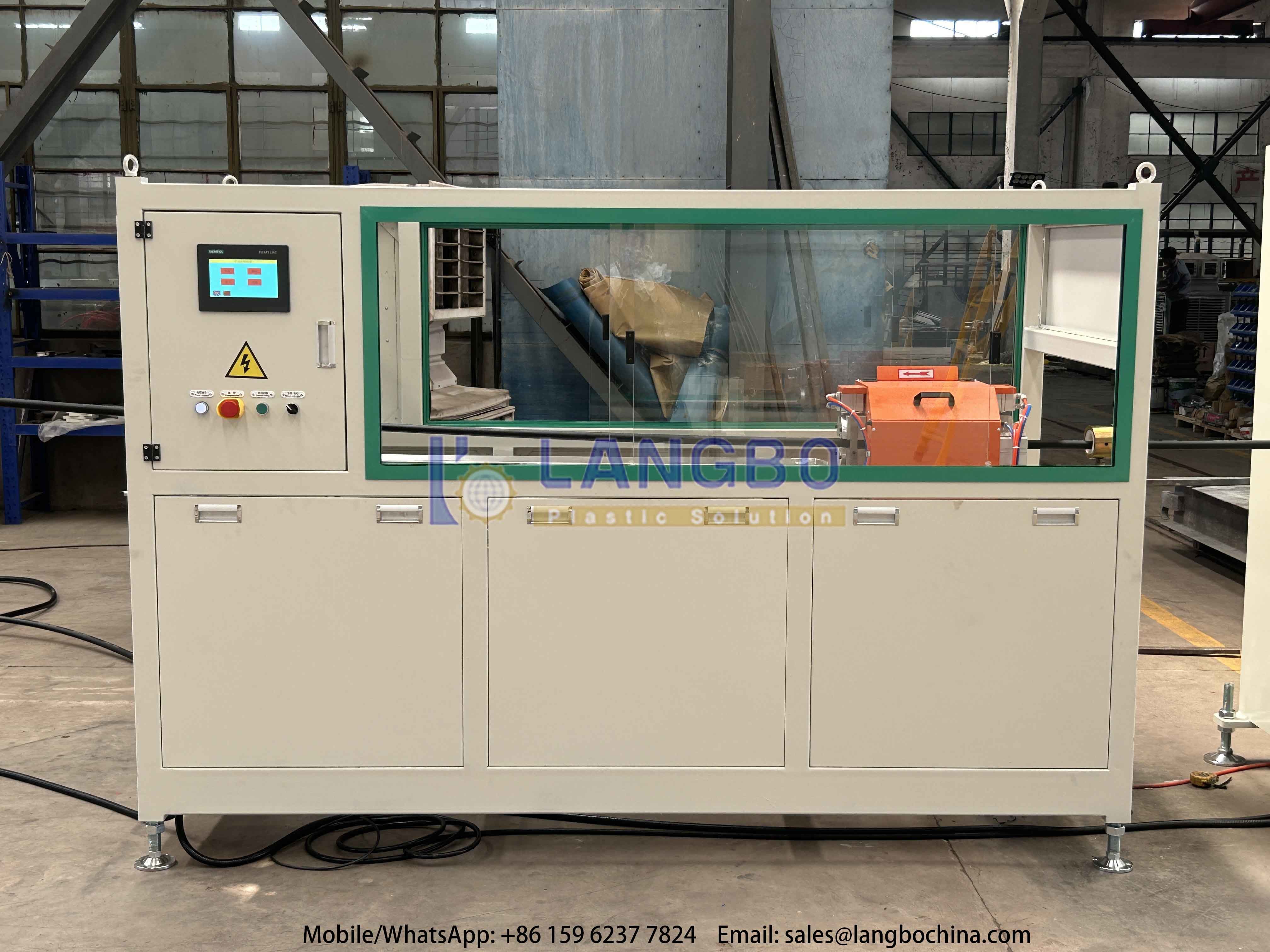

For rigid pipes: An automatic cutter cuts them into fixed lengths.
For drip irrigation hoses: A coiling machine winds them into rolls.
Stacking/Packaging

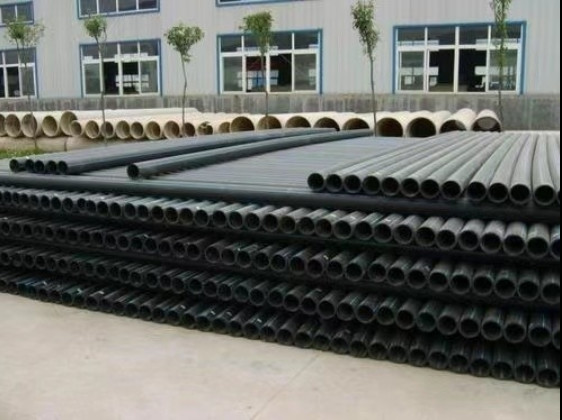

Finished pipes/hoses are collected, inspected, and packed for shipment.
Features of Pipe Machiner:
High Efficiency – Stable extrusion with precise control for consistent pipe quality.
Energy Saving – Advanced screw design reduces power consumption.
User-Friendly – PLC control system for easy operation and monitoring.
Durable Construction – Robust components ensure long service life.
Customizable – Adjustable production parameters for different pipe specifications.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
