Advanced Plastic PPR Pipe Extruding Making Machine Production Line

Plastic PPR Pipe Extruding Making Machine Production Line

PPR pipe production line:

This Plastic PPR Pipe Extruding Making Machine is mainly used to produce agricultural/water supply pipes, gas supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PPR pipe making machine adopts advanced design concept to ensure the efficient extrusion of material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

The feature of Plastic PPR Pipe and machinery:

1) PPR pipes are used widely for hot&cold water, central heating system and so on.

2) The production line can choose to load labeled extruder to produce pipe material with color labeled.

3) It can also produce PE pipe.

The working process of Plastic PPR Pipe machinery:

Raw material-----mixing----vacuum feeder and drier-----single screw extruder-----co-extruder-----mould and calibrator-----vacuum forming table-----

water tank (spraying cooling tank) ------ haul-off machine ------ cutting machine----- stacker(winding machine).

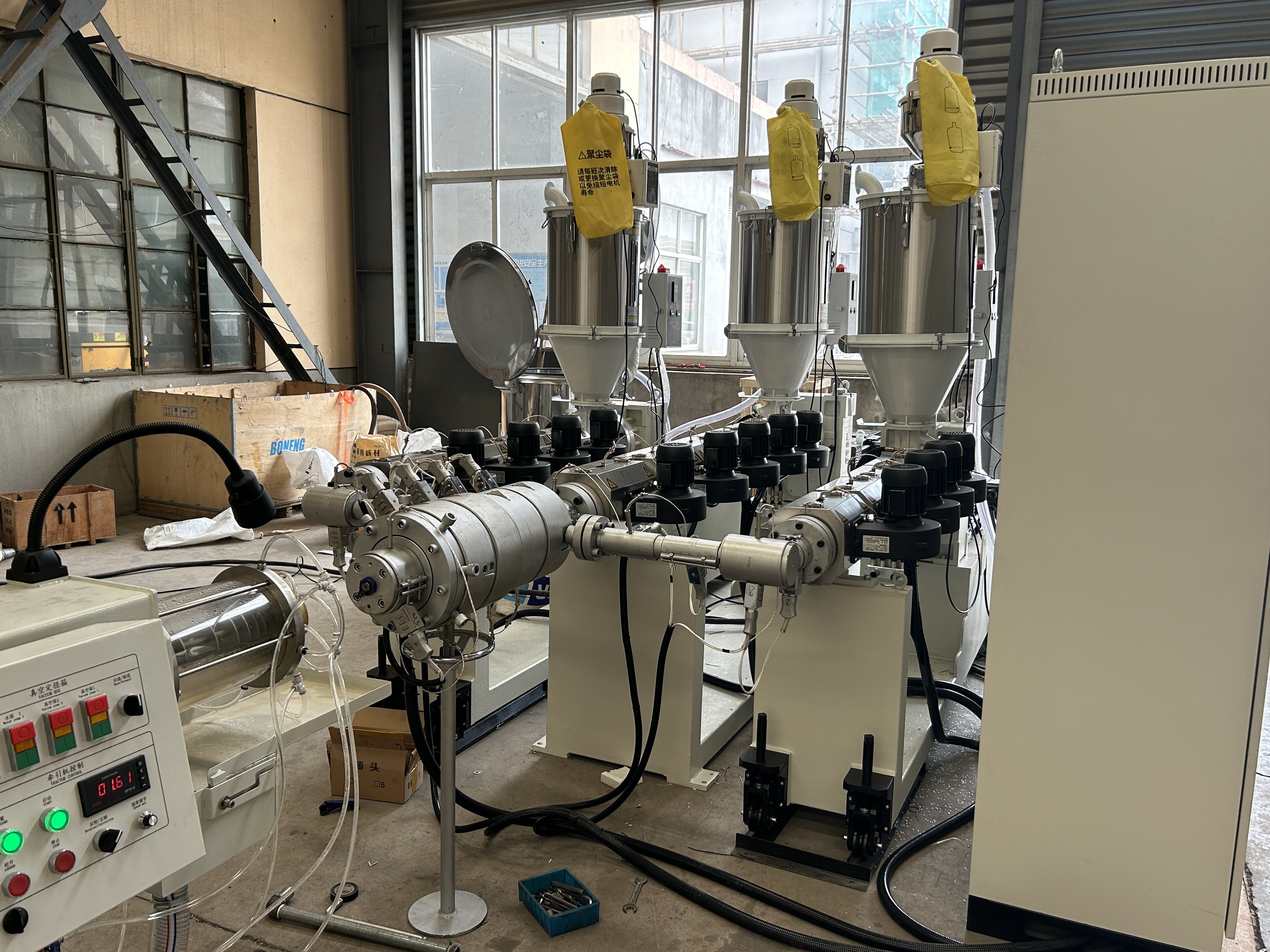

Single screw extruder:
Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

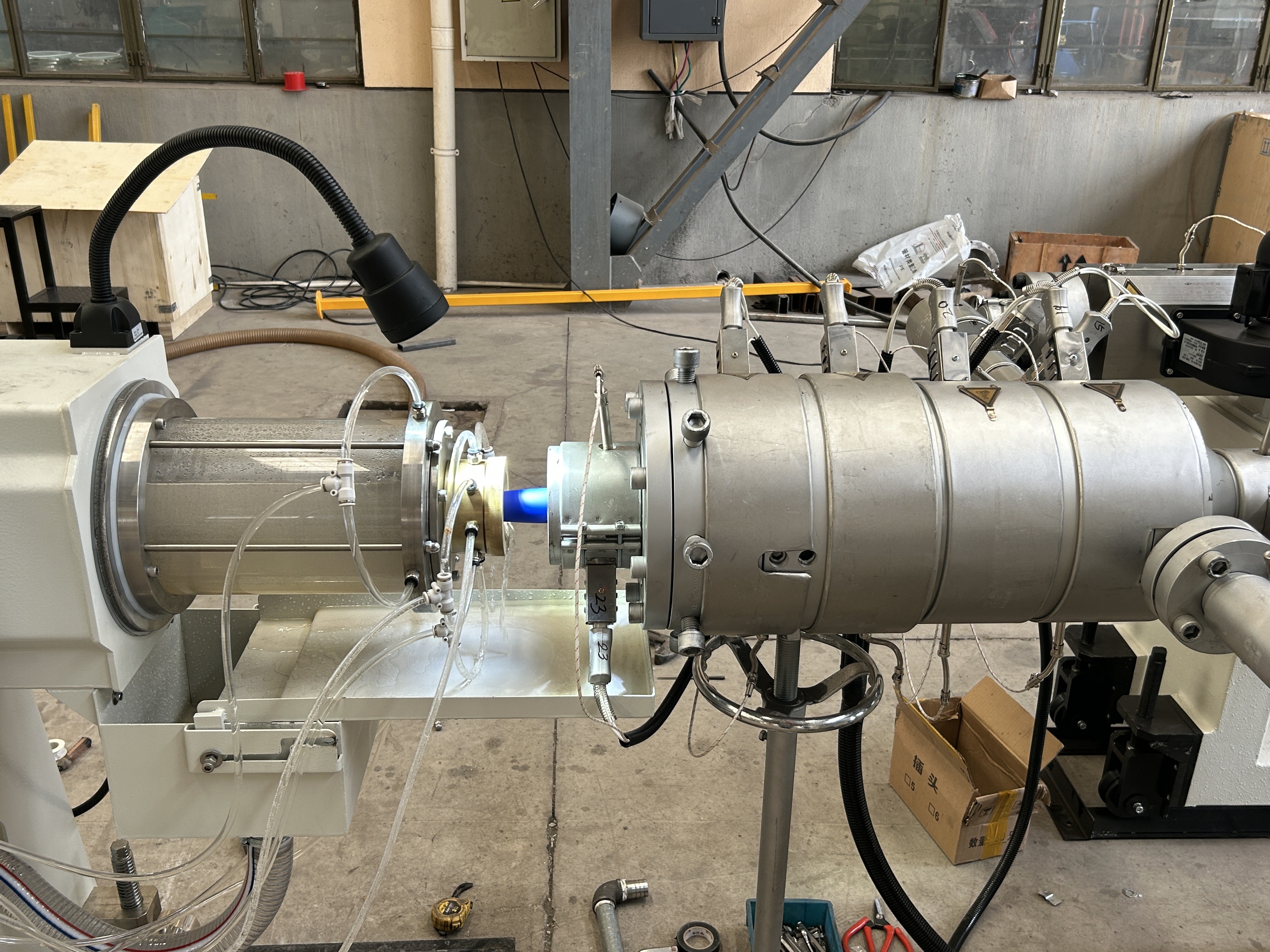

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

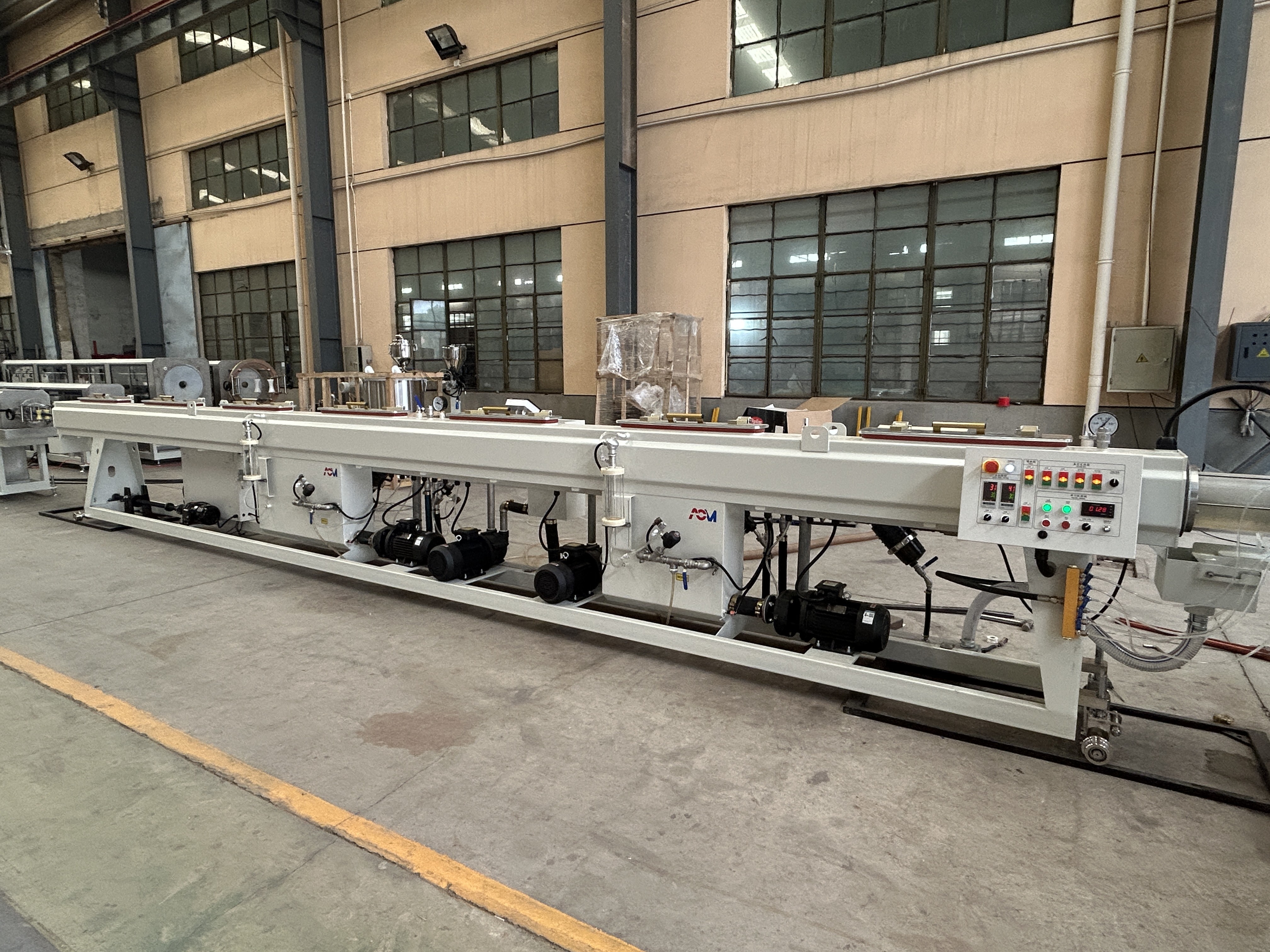

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

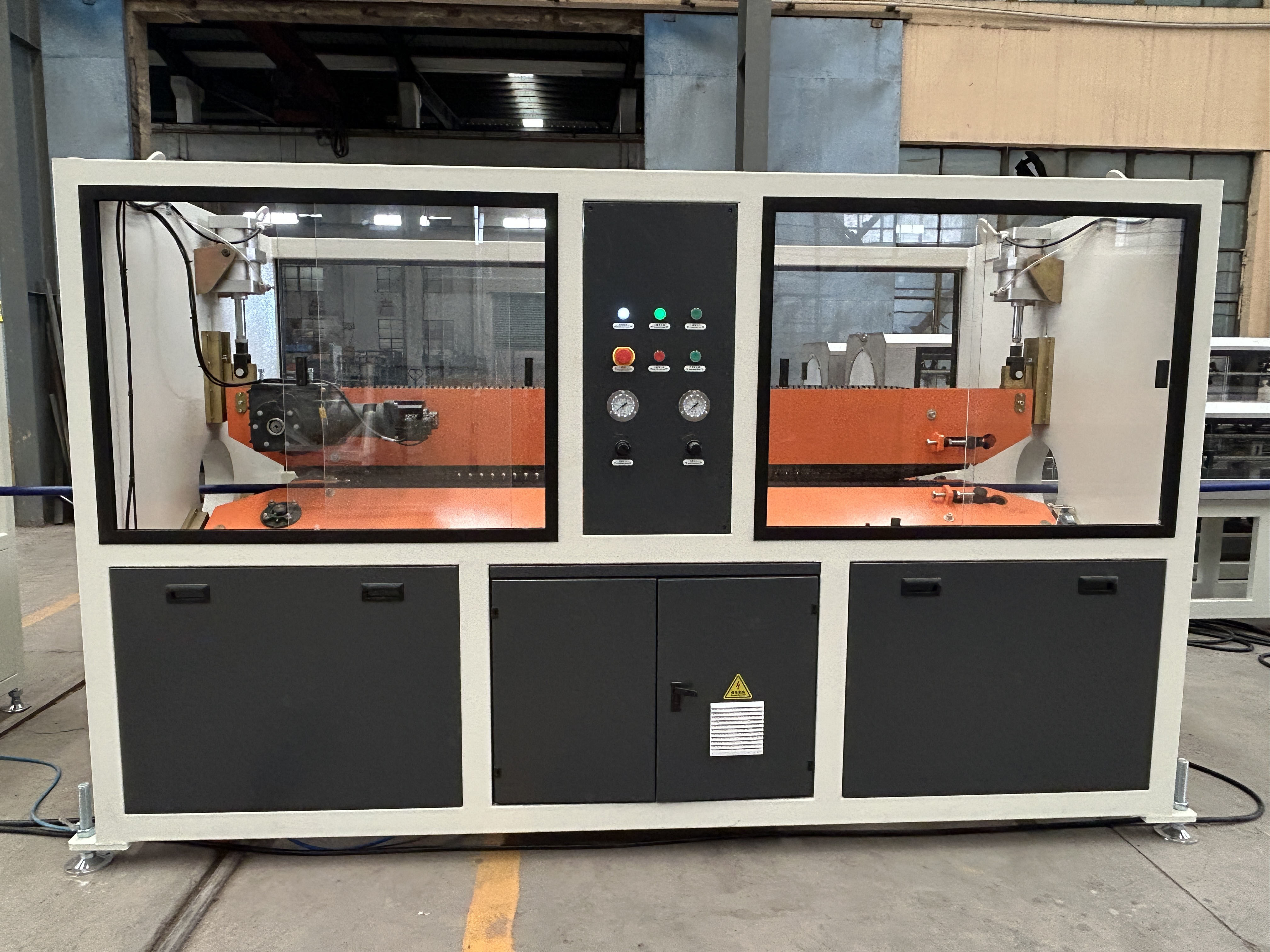

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

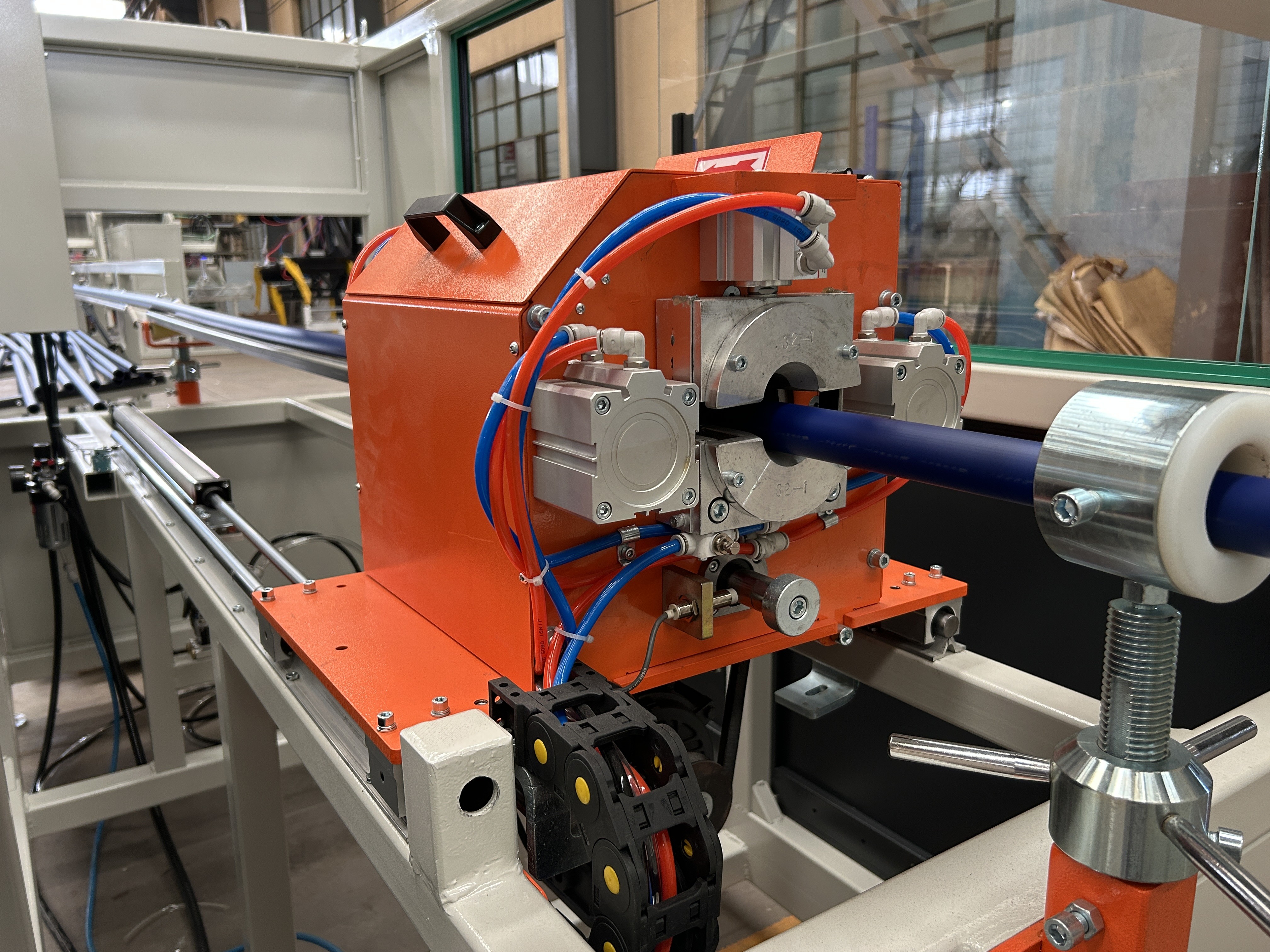

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.


PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
