PPR Supply Drainage Electric Conduit Hose Tube Production Single Wall Corrugated Pipe Extrusion Line

PPR Supply Drainage Electric Conduit Hose Tube Production Single Wall Corrugated Pipe Extrusion Line

Introduction:

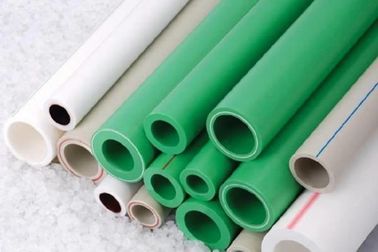

This advanced Single Wall Corrugated Pipe Extrusion Line is designed for manufacturing high-quality PPR (Polypropylene Random Copolymer) pipes used in supply, drainage, electric conduit, and hose/tube applications. The production line ensures excellent corrugation, durability, and flexibility, making it ideal for construction, electrical, agricultural, and industrial piping systems.

Extrusion line details:

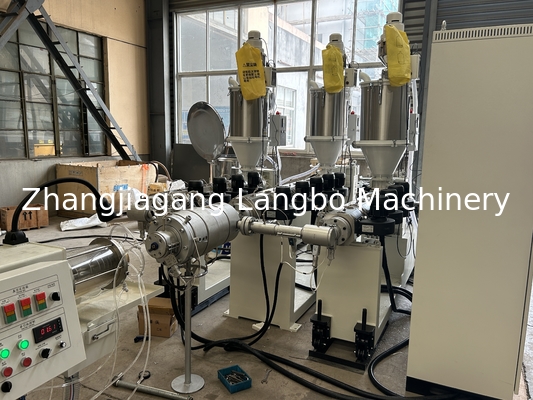

Material Feeding
PPR pellets are fed into the hopper of the extruder.
Optional drying system ensures moisture-free material for better quality.

Extrusion & Melting
The single-screw extruder heats and melts the PPR material uniformly.
Precise temperature control zones maintain optimal melting conditions.

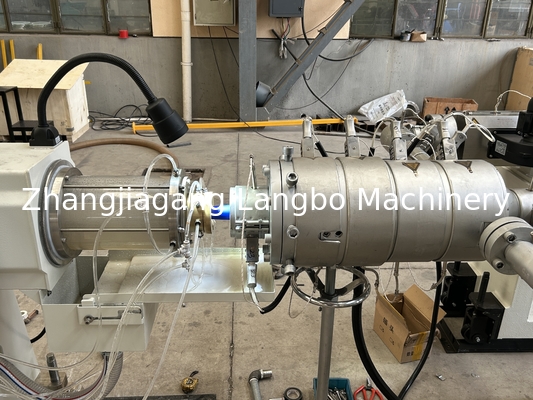

Pipe Molding (Corrugation)
Molten PPR is pushed through a corrugated mold to form the pipe structure.
Vacuum calibration system ensures smooth and consistent pipe shape.

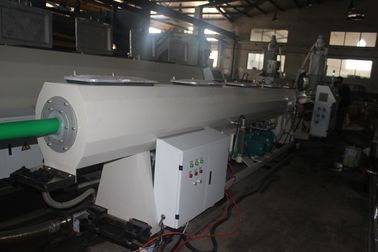

Cooling & Shaping
The corrugated pipe passes through a water cooling tank for rapid solidification.
Adjustable haul-off unit maintains proper tension for dimensional accuracy.

Cutting & Coiling

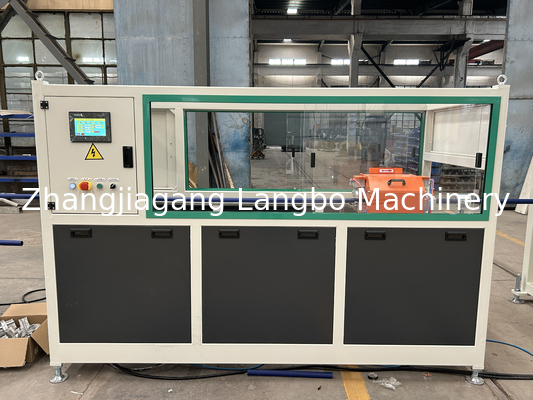

Automatic cutting machine trims pipes to desired lengths.
Coiling system (for flexible pipes) or stacking system (for rigid pipes) ensures neat packaging.

Quality Inspection & Packaging
Laser measurement checks diameter and wall thickness.
Final pipes are packed in coils/bundles for shipment.

Technical Specifications:
Pipe Diameter Range: 20mm – 630mm (customizable)
Production Speed: 5 – 20 m/min (adjustable)
Power Supply: 380V / 50Hz (or as per customer requirements)
Control System: PLC + Touch Screen (user-friendly interface)

This PPR Single Wall Corrugated Pipe Extrusion Line guarantees high productivity, low maintenance, and superior pipe quality, making it a top choice for manufacturers worldwide.
