Plastic PVC Agricultural Irrigation Conduit Water Supply Garden Hose Corrugation Pipe And Extrusion Making Machine
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
Plastic Pipe Extrusion Making Machine,PVC Pipe Extrusion Making Machine,Agricultural Pipe Extrusion Making Machine |
||
Product Description
Plastic PVC Agricultural Irrigation Conduit Water Supply Garden Hose Corrugation Pipe and Extrusion Making Machine
Short desciption
Our high-quality PVC Agricultural Irrigation Conduit and Garden Hose Corrugation Pipe are designed for efficient water supply, drainage, and irrigation systems. Made from durable UV-resistant PVC material, these pipes offer excellent flexibility, corrosion resistance, and long-lasting performance in agricultural, landscaping, and industrial applications.
Tech Features & Advantages
energy saving and ECO system (15% down),
high standard (Bimetallic & PLC Intelligence),
reliable quality (vertical gearbox with SKF thrust bearing)
Producting process
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Mixing & Feeding
PVC resin, stabilizers, plasticizers, and other additives are precisely weighed and mixed in an automatic mixer.
- The blended material is fed into the hopper of the extruder.
2. Extrusion & Pipe Forming

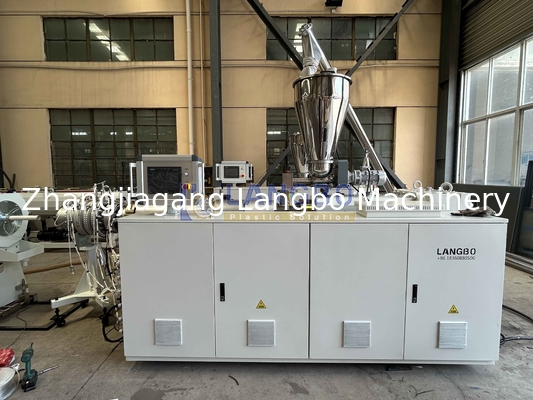

- The twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous pipe shape.
- The pipe diameter and wall thickness are controlled by the extrusion die and sizing sleeve.
3. Vacuum Sizing & Cooling

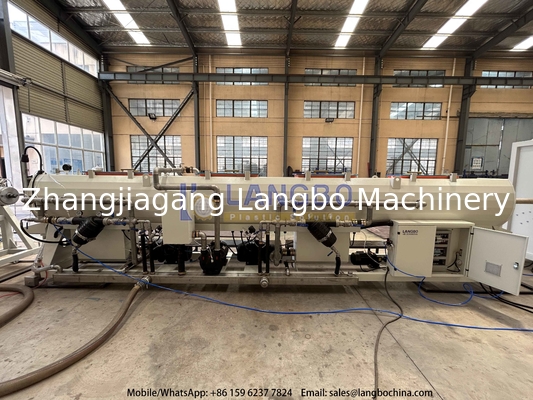

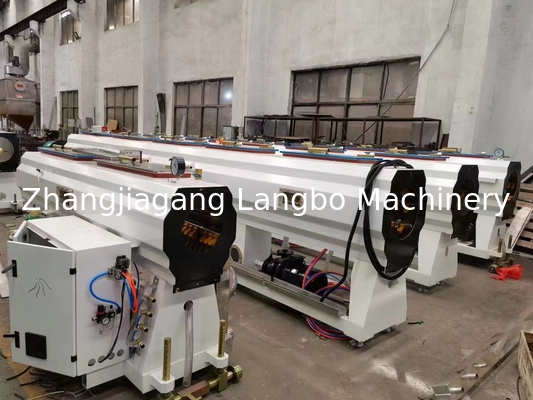

- The newly formed pipe passes through a vacuum sizing tank to ensure precise dimensions.
- It then enters a cooling water tank to solidify the structure and maintain shape stability.

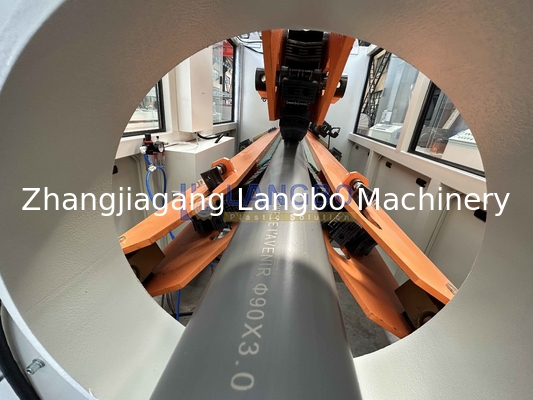

4. Hauling & Cutting

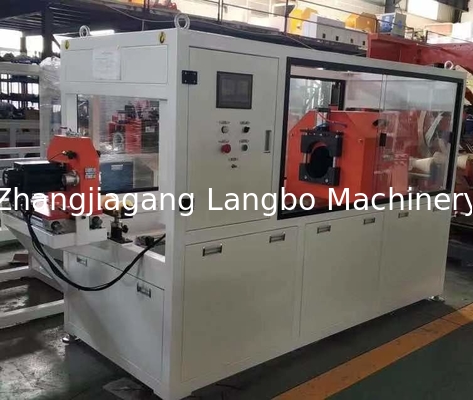

- A haul-off machine pulls the pipe at a controlled speed to maintain consistency. - An automatic cutting machine cuts the pipe into desired lengths (e.g., 4m, 6m). 5. Stacking & Packaging
- The finished pipes are automatically stacked and packed for storage or shipment.

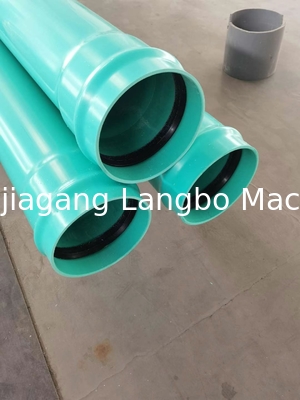

High Pressure Resistance – Suitable for efficient water transport and irrigation systems.
Lightweight & Easy to Install – Saves labor costs and time during setup.
Weather & Chemical Resistant – Withstands harsh environmental conditions.
Multiple Sizes Available – Customizable diameters and lengths to fit different needs.
