Plastic PVC Water Electric Conduit Pipe Tube Extruding Making Production Line Machine
Short desciption
Our PVC Water & Electric Conduit Pipe Extrusion Production Line is a high-efficiency, fully automated system designed for manufacturing high-quality PVC pipes used in water supply, drainage, and electrical conduit applications. The production line ensures precise dimensions, excellent durability, and smooth surface finish, meeting international standards such as ISO, ASTM, and DIN.
Application
The final produced UPVC pipe is used for the electrical conduit pipe, water supply pipe, sewage pipe, house decoration, chemical transportation, gas distribution line and so on. It has widely used in the industrial and daily life. The pvc pipe has the features of high strength and rigidity, structural integrity, excceleent chemical resistance,durability,thermal stability,non-toxic and safe,low maintenance and cost-effective.
Producting process
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum and cooling tank—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.
Specifications:
MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
Raw Material Mixing & Feeding
- PVC resin, stabilizers, plasticizers, and additives are precisely measured and mixed in a high-speed mixer.

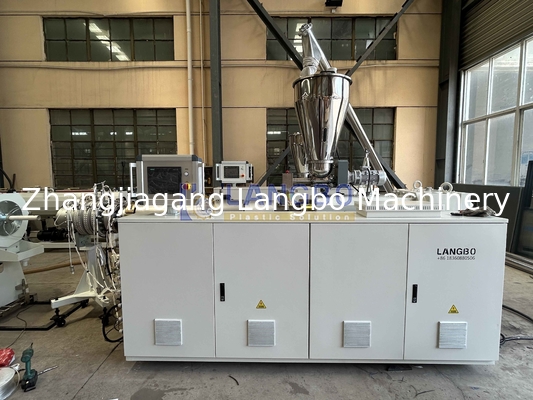

Extrusion Process
- The prepared PVC compound is fed into a twin-screw extruder, where it is melted and homogenized.

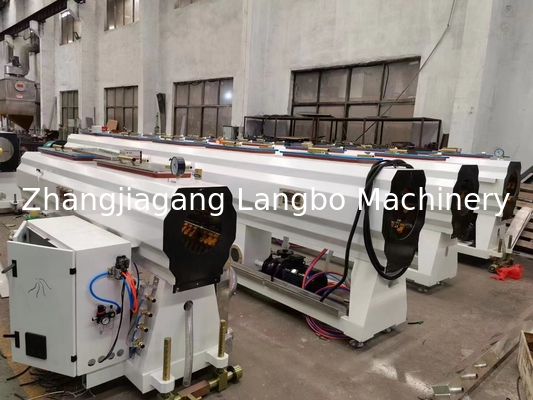

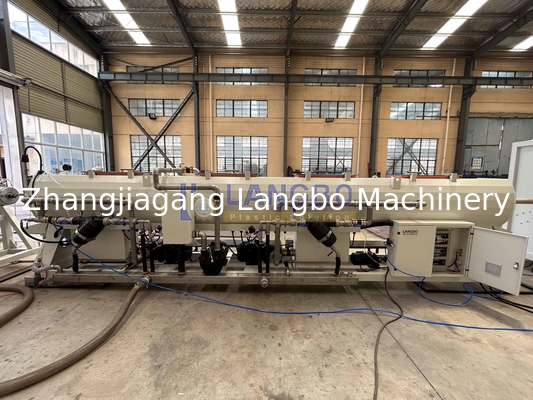

Vacuum Calibration & Cooling
- The extruded pipe passes through a vacuum calibration tank to ensure precise diameter and wall thickness.

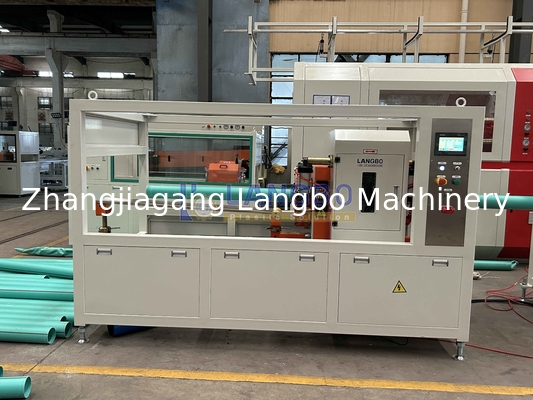

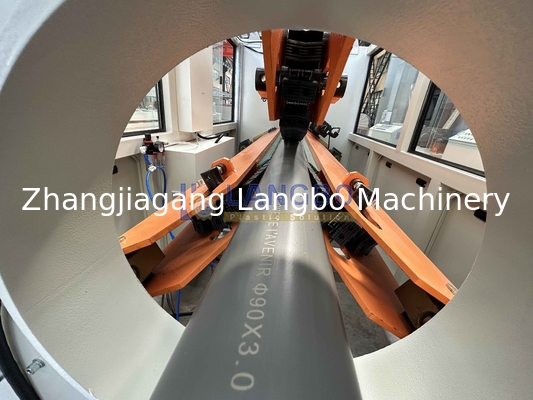

Haul-Off & Cutting
- A puller (haul-off unit) steadily draws the pipe forward at a controlled speed.
Stacking & Packaging
- The finished pipes are automatically stacked by a collection rack.
F & Q:
Are you a trading company or factory? Can I have a factory visiting?
We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.
We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.
For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.
Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.
confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support
T/T, D/P, Letter of credit, Cash transaction
We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.
Factory visiting before order
Product sample posting to Langbo for a better understanding of customer’s expectations and configuration communication
On-site checking during test running
Yes. Both our extrusion machine and plastic recycling machine have CE Certification.
Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.
One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems
After the handover of the machine, Langbo provides free new parts for every non-man-made damage.
How to get the required area of the machine?
For a new plant, you can contact me. (sales@langbochina.com/ whatsapp:8615962377824) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
