PVC Plastic Pipe Manufacturing Extruder Machine

PVC Plastic Pipe Manufacturing Extruder Machine

Short desciption

The PVC Plastic Pipe Manufacturing Extruder Machine is a high-performance industrial machine designed for the continuous production of PVC (Polyvinyl Chloride) pipes used in plumbing, irrigation, drainage, and electrical conduits. This machine ensures precision, efficiency, and durability in manufacturing pipes of various diameters and thicknesses.

Equipped with advanced extrusion technology, the machine features a robust screw and barrel system, precise temperature control, and a high-speed vacuum calibration system to ensure smooth production with consistent quality. It is suitable for both rigid and flexible PVC pipe manufacturing, offering customizable options for different industry requirements.

Tech Features & Advantages
Construction: Drainage, sewerage, and ventilation systems.
Agriculture: Irrigation pipes, greenhouse frameworks.
Utilities: Potable water distribution, electrical conduits.
Industrial: Chemical-resistant piping, cable protection.

Producting process
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

Specifications:



Product detail
Raw Material Feeding
PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

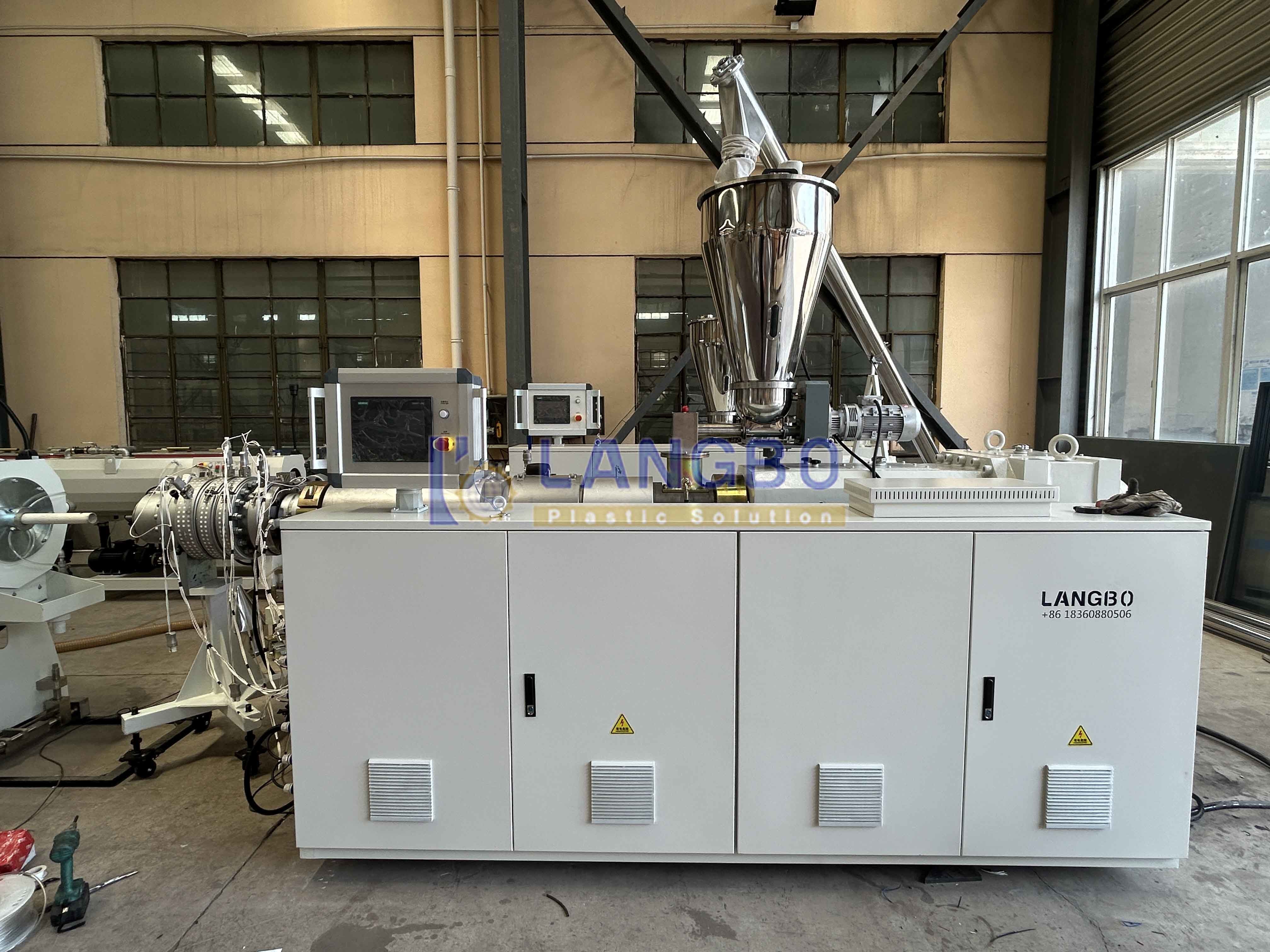

Twin screw extruder machine

The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.

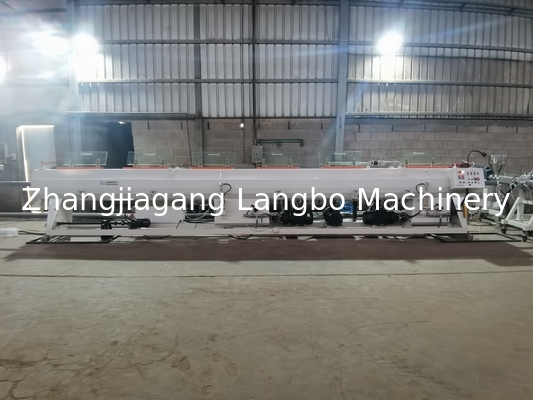

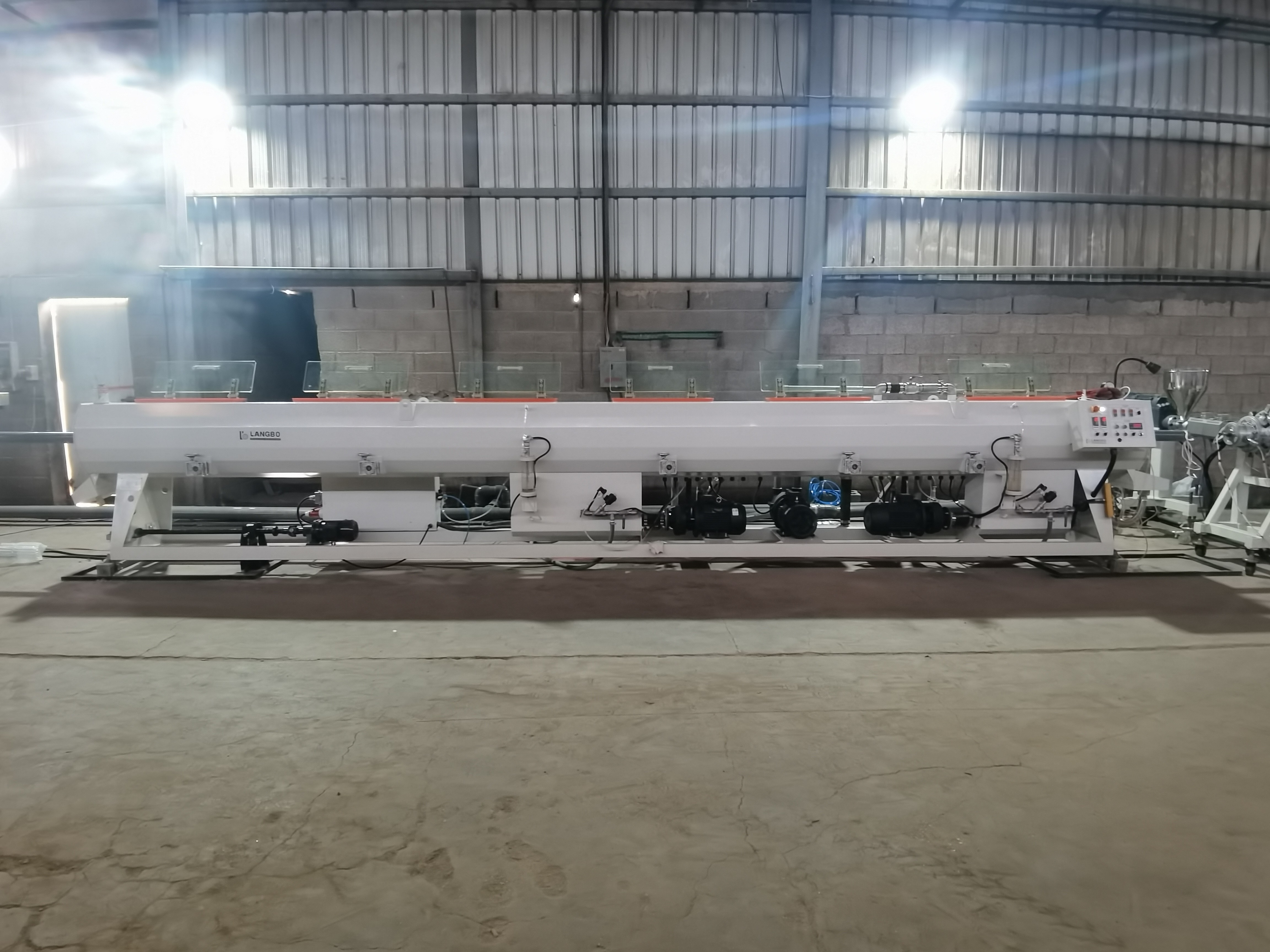

Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.

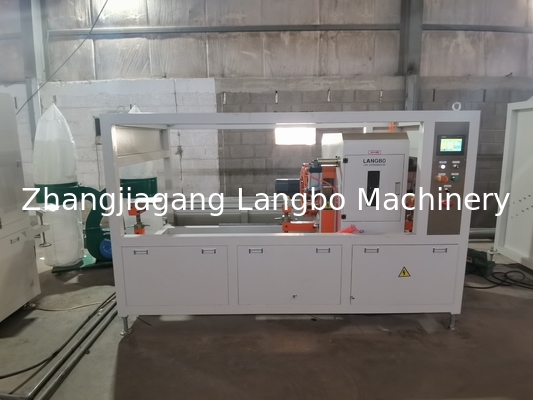

Haul-off Unit
The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

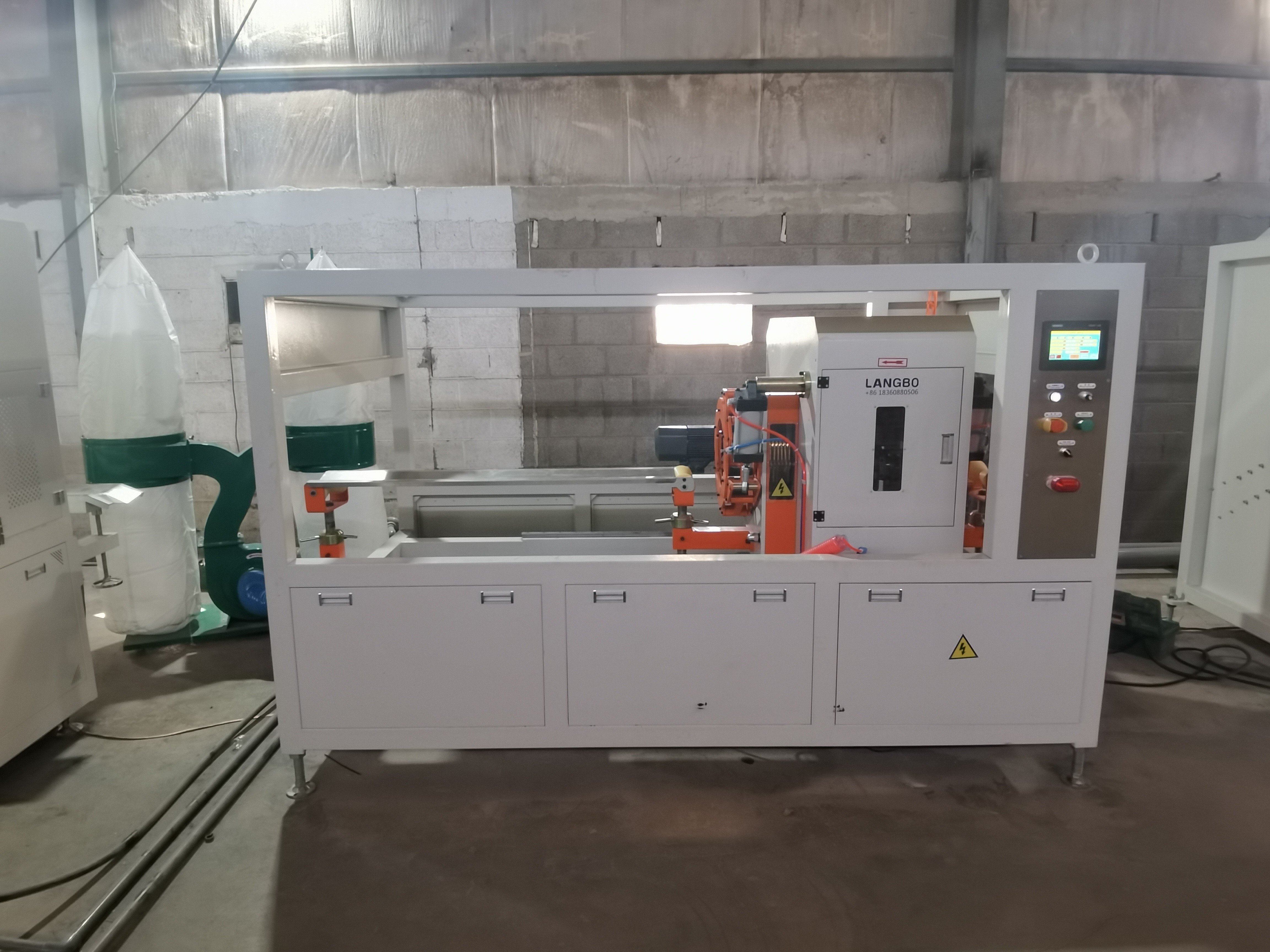

Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.



Technical Features:

- High Output Efficiency – Continuous extrusion for mass production.
- Precision Control – Advanced PLC system for temperature, speed, and thickness regulation.
- Durable Construction – Corrosion-resistant materials for long service life.
- Energy Saving – Optimized motor and heating system to reduce power consumption.
- Multi-Layer Extrusion – Optional co-extrusion for reinforced pipes.
- Easy Maintenance – Modular design for quick cleaning and part replacement.

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case



Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.











Our factroy



Our Exhibition



Our Goods Shipping
