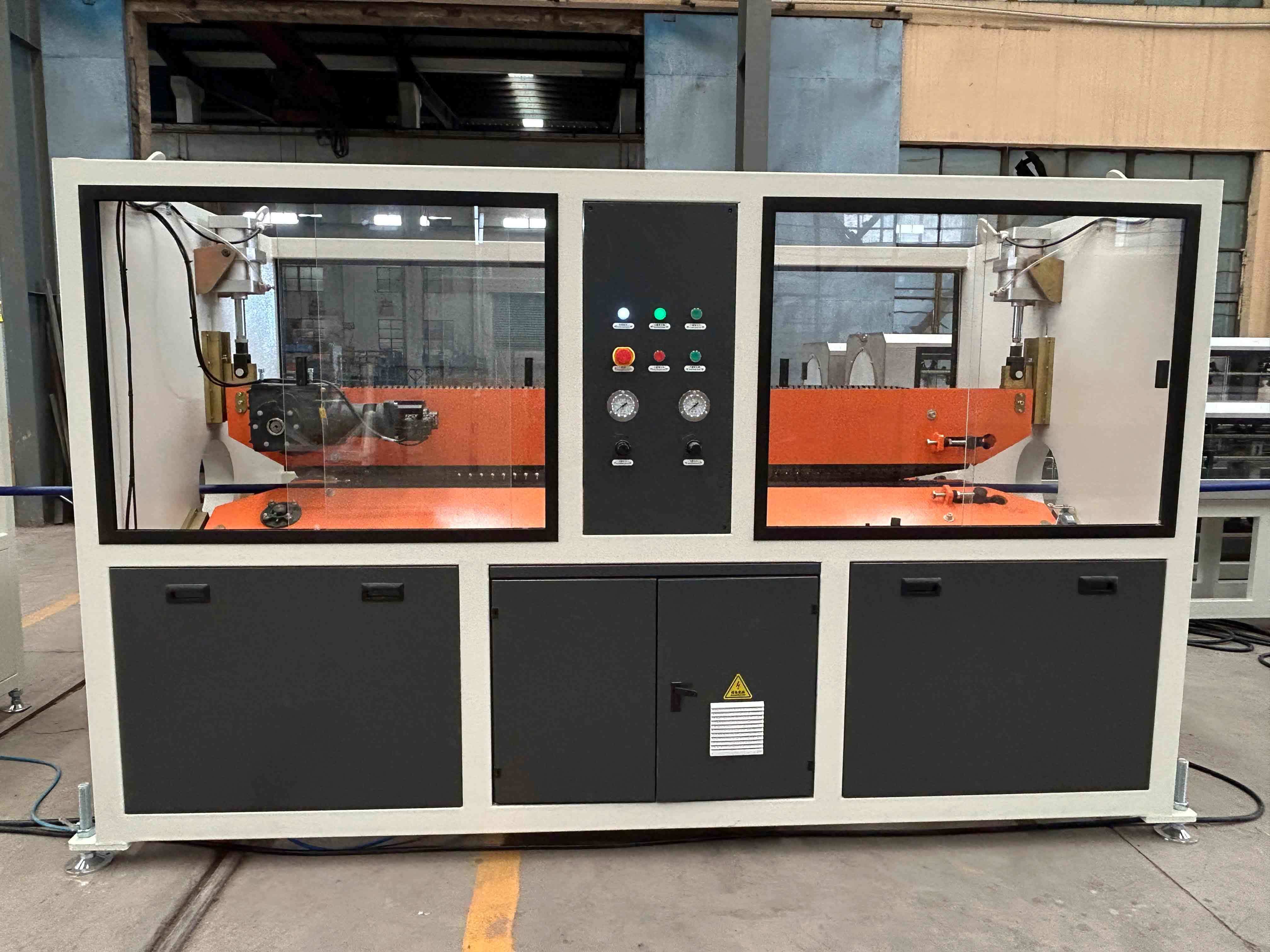

PPR Pipe Extrusion Pipe Making Extruder Production Line

PPR Pipe Extrusion Pipe Making Extruder Production Line

Introduction:

The PPR Pipe Extrusion Pipe Making Extruder Production Line is a state-of-the-art manufacturing system designed for the efficient and high-quality production of Polypropylene Random Copolymer (PPR) pipes. This fully automated production line integrates advanced extrusion technology, precision molding, and intelligent control systems to ensure consistent pipe dimensions, superior strength, and excellent thermal resistance.

Ideal for producing PPR pipes used in hot/cold water supply, HVAC systems, and industrial fluid transport, this production line offers high output, energy efficiency, and long-term reliability. The system includes extruder, vacuum calibration unit, cooling tank, haul-off machine, cutting device, and stacker, providing a complete solution for pipe manufacturing.

Extrusion line details:

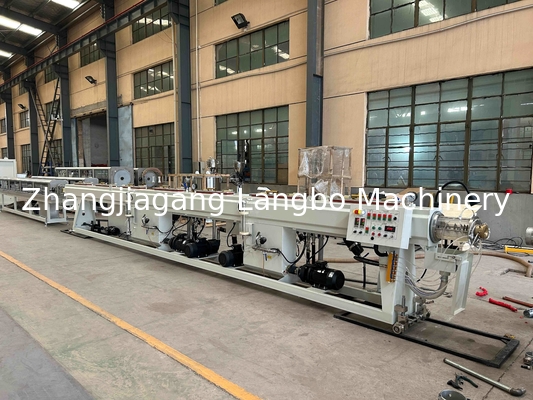

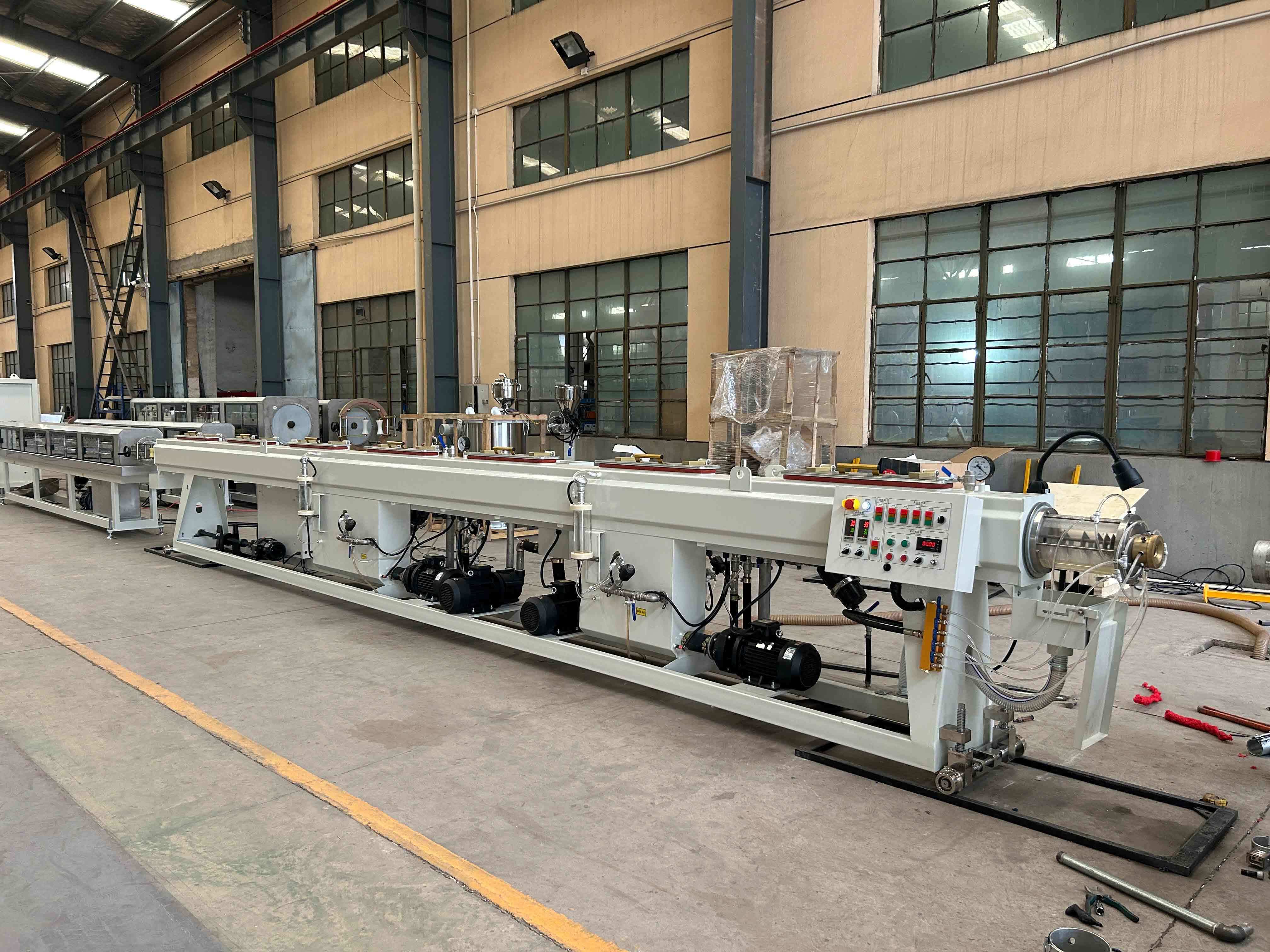

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

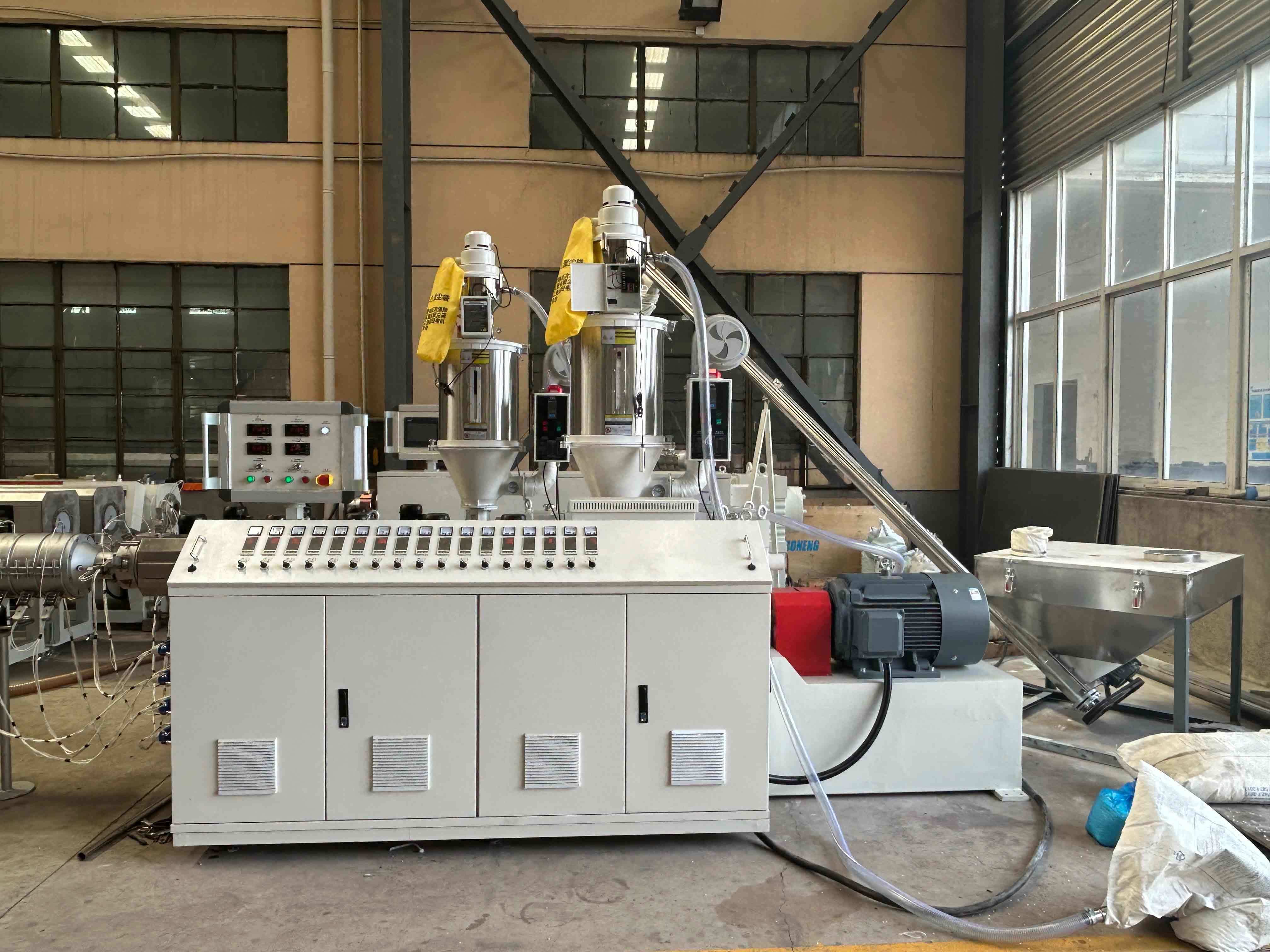

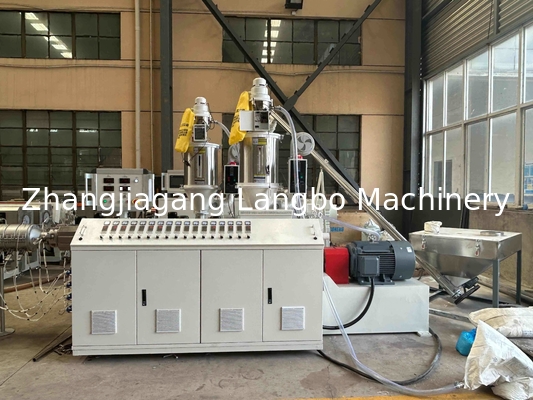

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

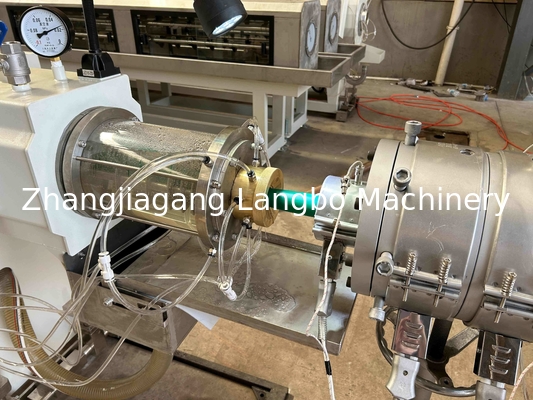

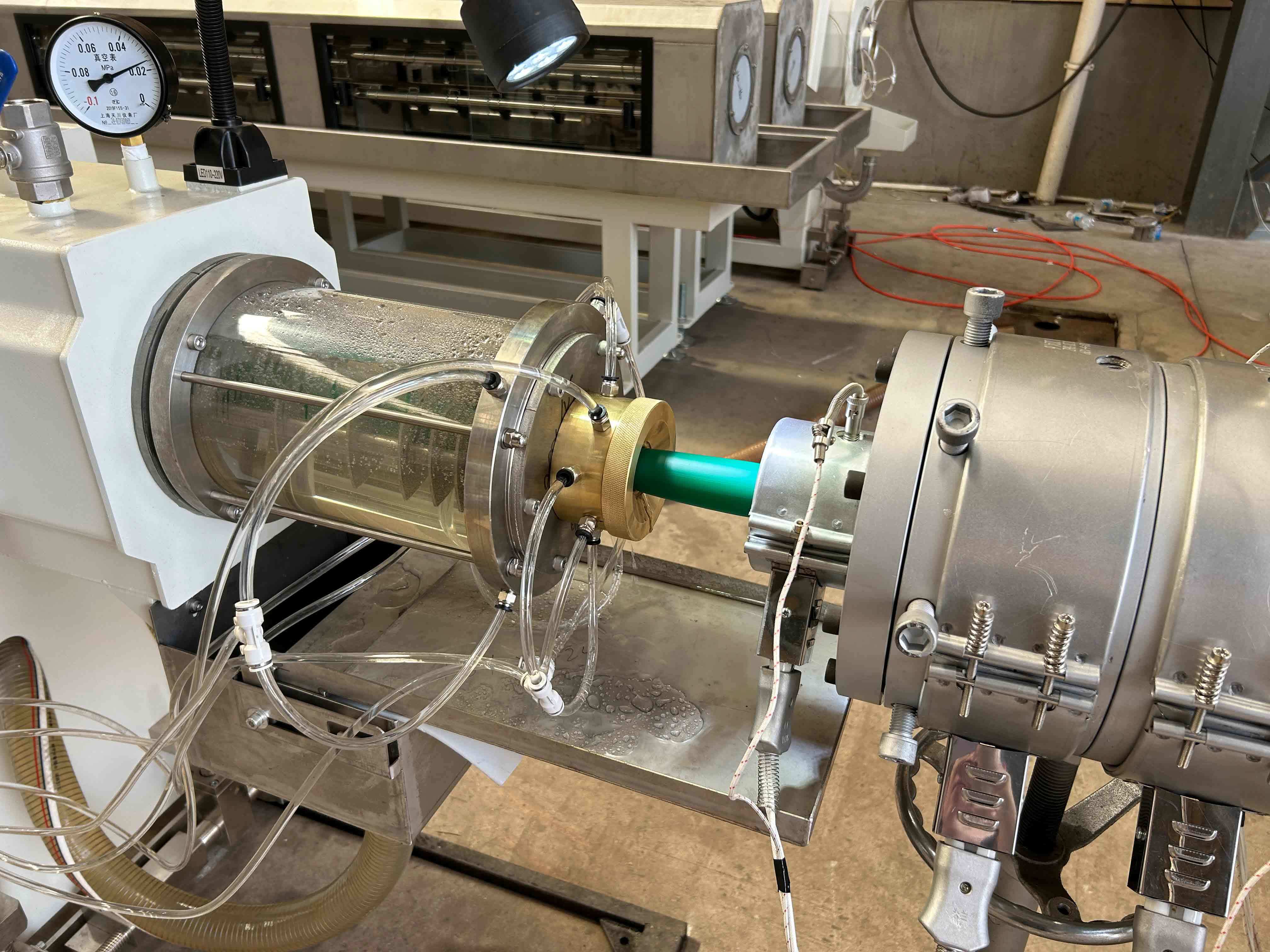

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

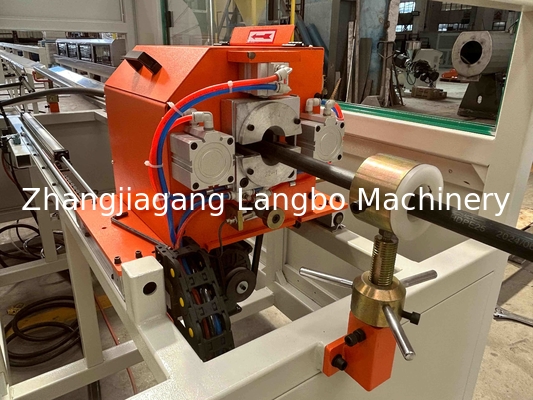

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High Efficiency & Output – Advanced extrusion technology ensures fast and stable production, maximizing productivity.

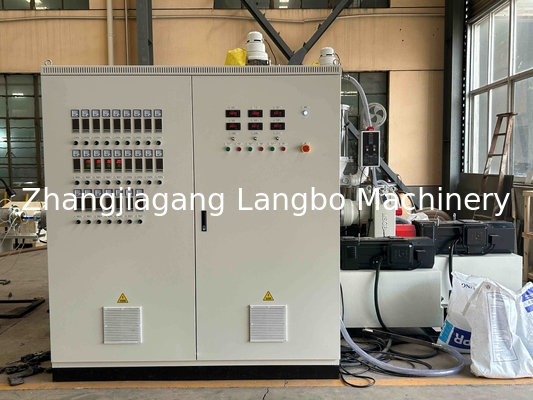

Precision Control – Automated PLC system guarantees consistent pipe dimensions (OD, wall thickness) and smooth surfaces.

Energy Saving – Optimized screw design and heating system reduce power consumption while maintaining performance.

Durability & Stability – High-quality components and robust construction ensure long service life with minimal maintenance.

Versatility – Adjustable parameters support various PPR pipe sizes (e.g., 20mm–160mm) and pressure ratings (PN10–PN25).

User-Friendly Operation – Intuitive touch-screen interface allows easy monitoring and adjustment.

Eco-Friendly Production – Low noise, minimal waste, and compliance with international environmental standards.

Reliable After-Sales Support – Comprehensive technical assistance, training, and spare parts availability.

This PPR Pipe Extrusion Production Line is the ideal choice for manufacturers seeking high-quality, cost-effective, and sustainable pipe production solutions.
