16-63mm PPR Pipe Making Line Extrusion Equipment with Price

16-63mm PPR Pipe Making Line Extrusion Equipment with Price

Introduction:

The 16-63mm PPR Pipe Making Line Extrusion Equipment is a high-performance production line designed for manufacturing Polypropylene Random Copolymer (PPR) pipes with diameters ranging from 16mm to 63mm. This advanced extrusion system ensures precise, stable, and efficient production of high-quality PPR pipes, widely used in hot/cold water supply, HVAC systems, and industrial fluid transportation.

The equipment features automated control, energy efficiency, and durable construction, making it suitable for large-scale pipe manufacturing. With easy operation and low maintenance, this production line helps businesses enhance productivity while maintaining consistent pipe quality.

Extrusion line details:

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

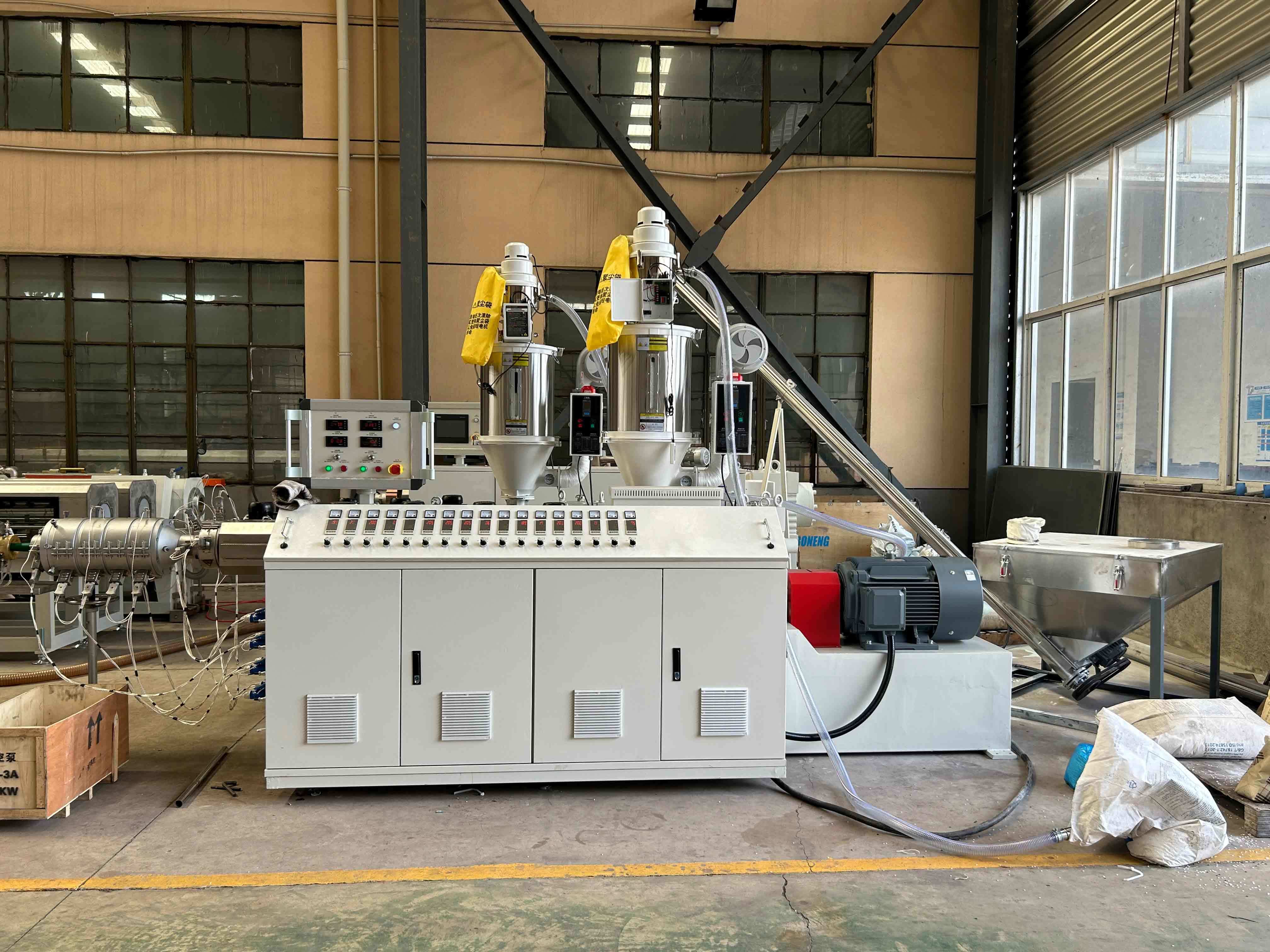

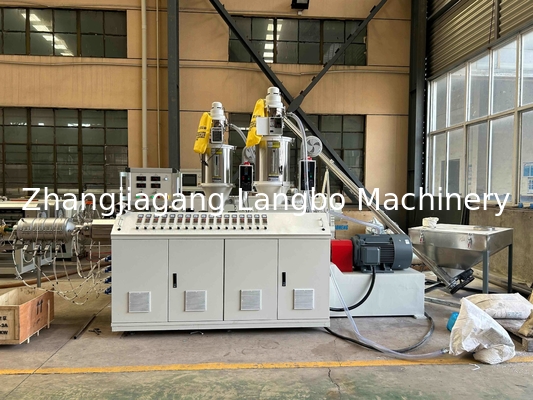

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

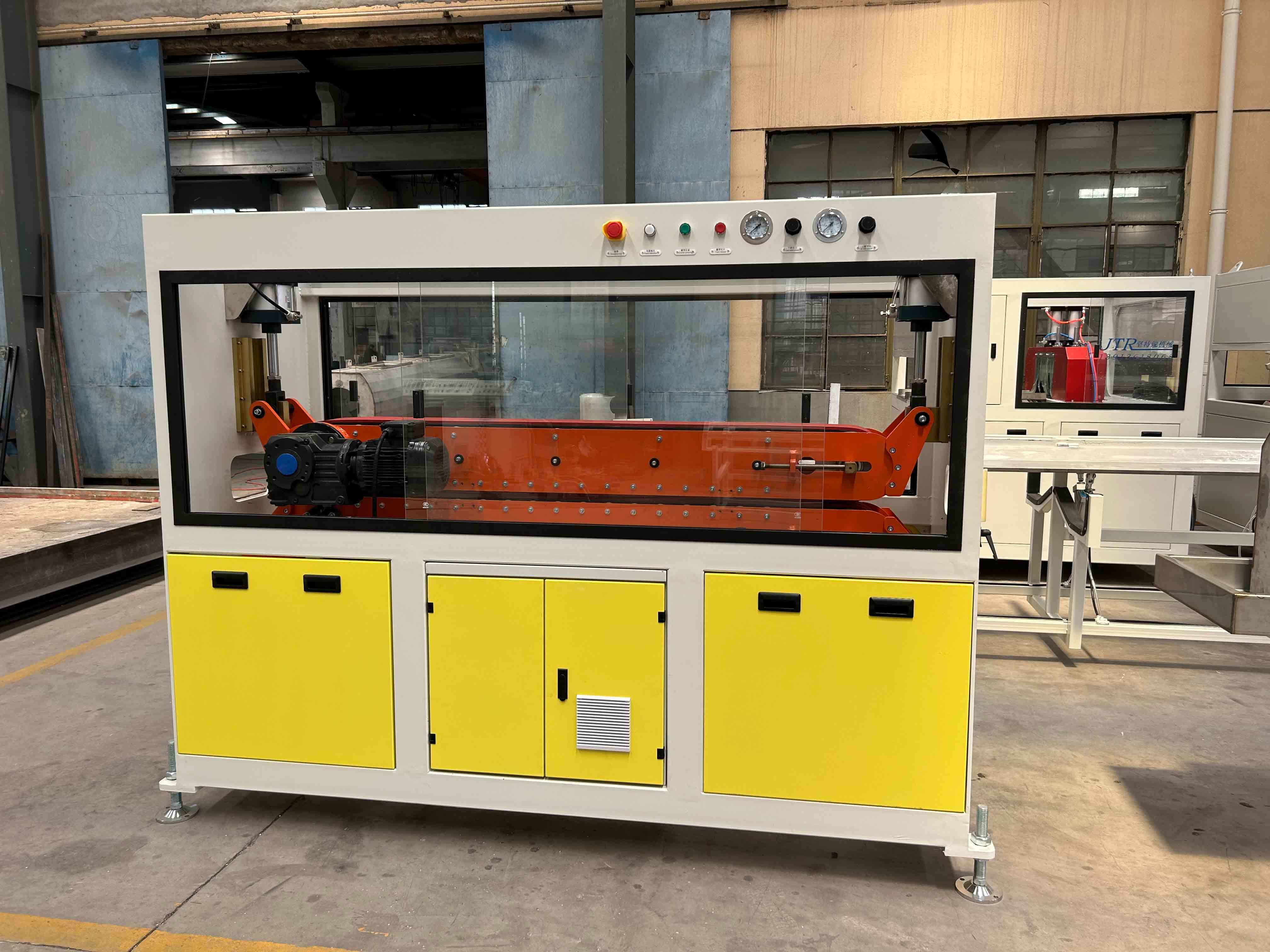

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High Precision & Stability – Advanced extrusion technology ensures uniform wall thickness and smooth pipe surfaces.

Wide Application – Produces PPR pipes from 16mm to 63mm, catering to residential and industrial needs.

Energy Efficient – Optimized design reduces power consumption, lowering operational costs.

User-Friendly Control – PLC-based automation allows easy adjustment and monitoring of production parameters.

Durable & Low Maintenance – High-quality components ensure long service life with minimal downtime.

Fast Production Speed – High output capacity maximizes efficiency and profitability.

Competitive Price – Cost-effective solution without compromising quality or performance.

This PPR Pipe Making Line is an ideal investment for manufacturers seeking reliable, efficient, and economical pipe production.
