Plastic PPR Gas Supply Single Wall Corrugated Pipe/Cable/Tube Making Machine

Plastic PPR Gas Supply Single Wall Corrugated Pipe/Cable/Tube Making Machine

Introduction:

The Plastic PPR Gas Supply Single Wall Corrugated Pipe/Cable/Tube Making Machine is a high-performance production line designed for manufacturing PPR (Polypropylene Random Copolymer) corrugated pipes, widely used in gas supply, cable protection, and fluid transportation systems. This advanced machine ensures precision, efficiency, and durability in producing single-wall corrugated pipes with excellent flexibility, pressure resistance, and corrosion resistance.

Equipped with automated controls, high-speed extrusion, and precision molding systems, this machine guarantees consistent quality and high output, making it ideal for industrial pipe and tube production.

Extrusion line details:

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

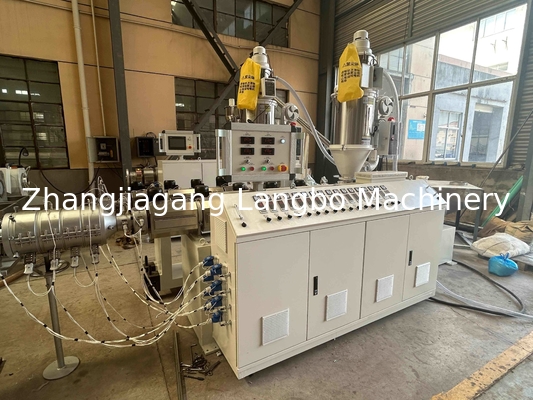

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

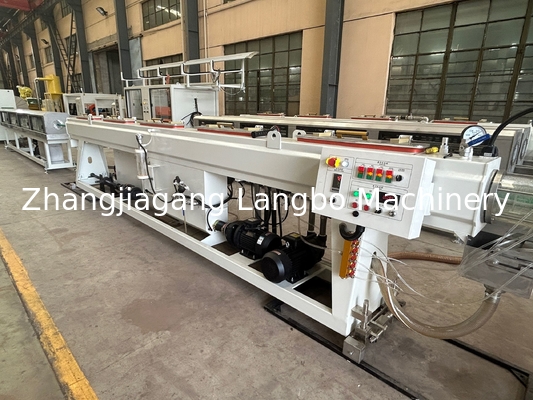

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

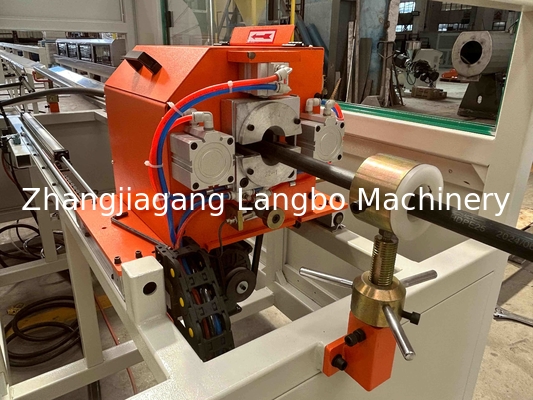

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High-Quality Material Compatibility

Designed for PPR and other thermoplastic materials, ensuring strong, durable, and leak-proof pipes suitable for gas and fluid transport.

Advanced Corrugation Technology

Produces single-wall corrugated pipes with enhanced flexibility, impact resistance, and pressure tolerance.

Energy-Efficient & High-Speed Production

Optimized extrusion and cooling systems ensure fast production cycles while reducing energy consumption.

Precision Control & Automation

Features PLC control, touch-screen interface, and automatic cutting, ensuring consistent dimensions and minimal manual intervention.

Wide Application Range

Suitable for gas supply pipes, cable conduits, drainage systems, and industrial tubing, meeting various industry standards.

Durable & Low-Maintenance Design

Robust construction with high-quality components ensures long service life and minimal downtime.

Customizable Production Options

Adjustable parameters for pipe diameter, wall thickness, and corrugation pattern, catering to different customer needs.
