16mm~630mm PVC Pipe Making Machine China Factory Price

16mm~630mm PVC Pipe Making Machine China Factory Price

Short desciption

Our PVC Water Drainage & Agricultural Drip Irrigation Hose Tube Extrusion Production Line is a high-efficiency, fully automated manufacturing system designed for producing durable and flexible PVC hoses used in agricultural drip irrigation, water drainage, and other fluid transfer applications.

This advanced production line ensures precise diameter control, uniform wall thickness, and high-quality surface finish, making it ideal for manufacturing corrugated, smooth, or perforated PVC tubes with excellent pressure resistance and long-term durability.

Tech Features & Advantages
1.The production line is used in producting pvc reinforced pipe, which is widely used in the fields of industry,agriculture, forest, architecture etc.
2.With different dies,it can produce different soft pipes.The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid.
3.Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.

Producting process

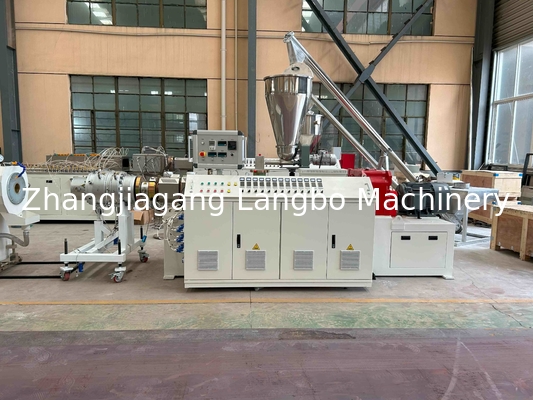

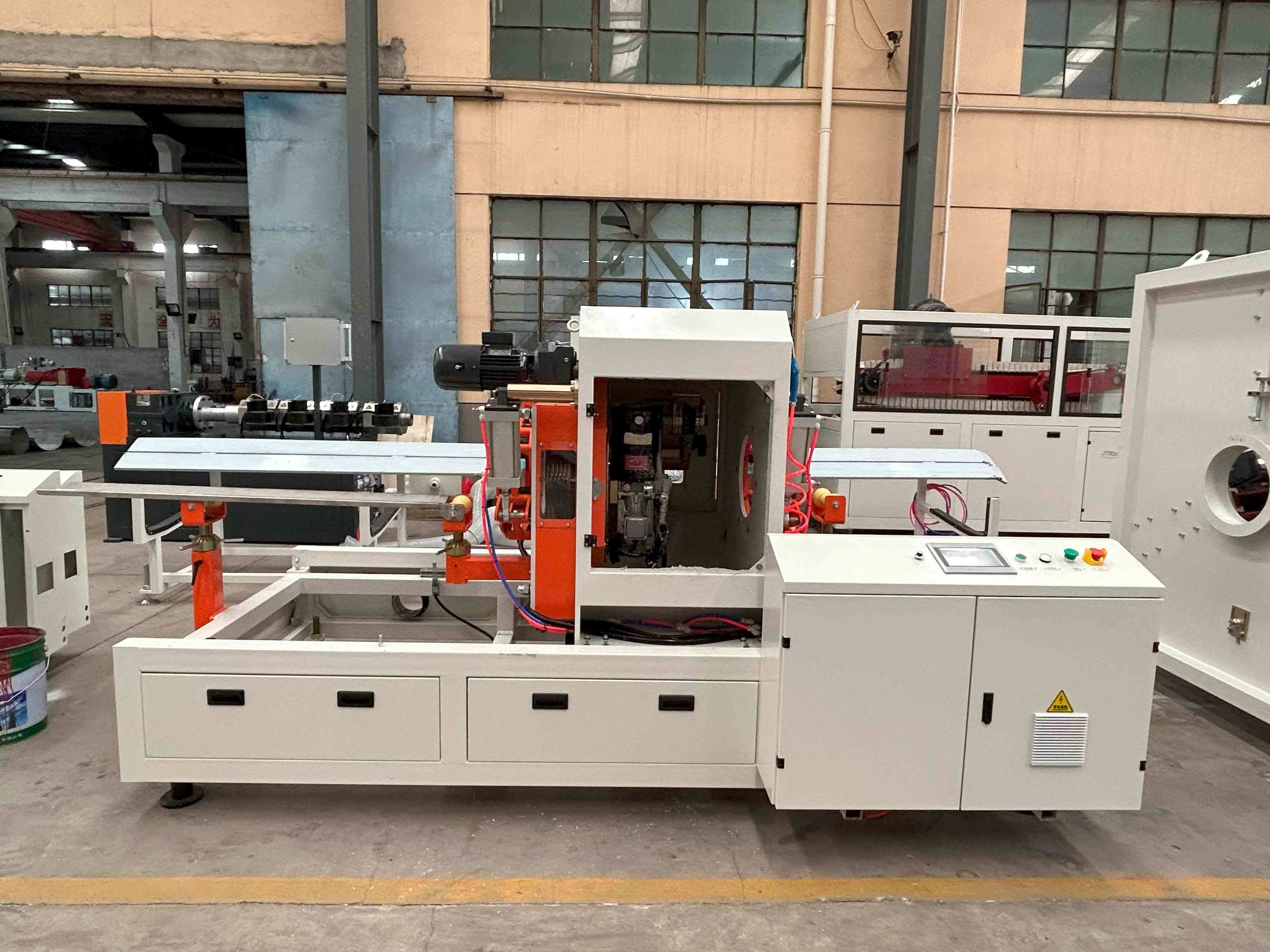

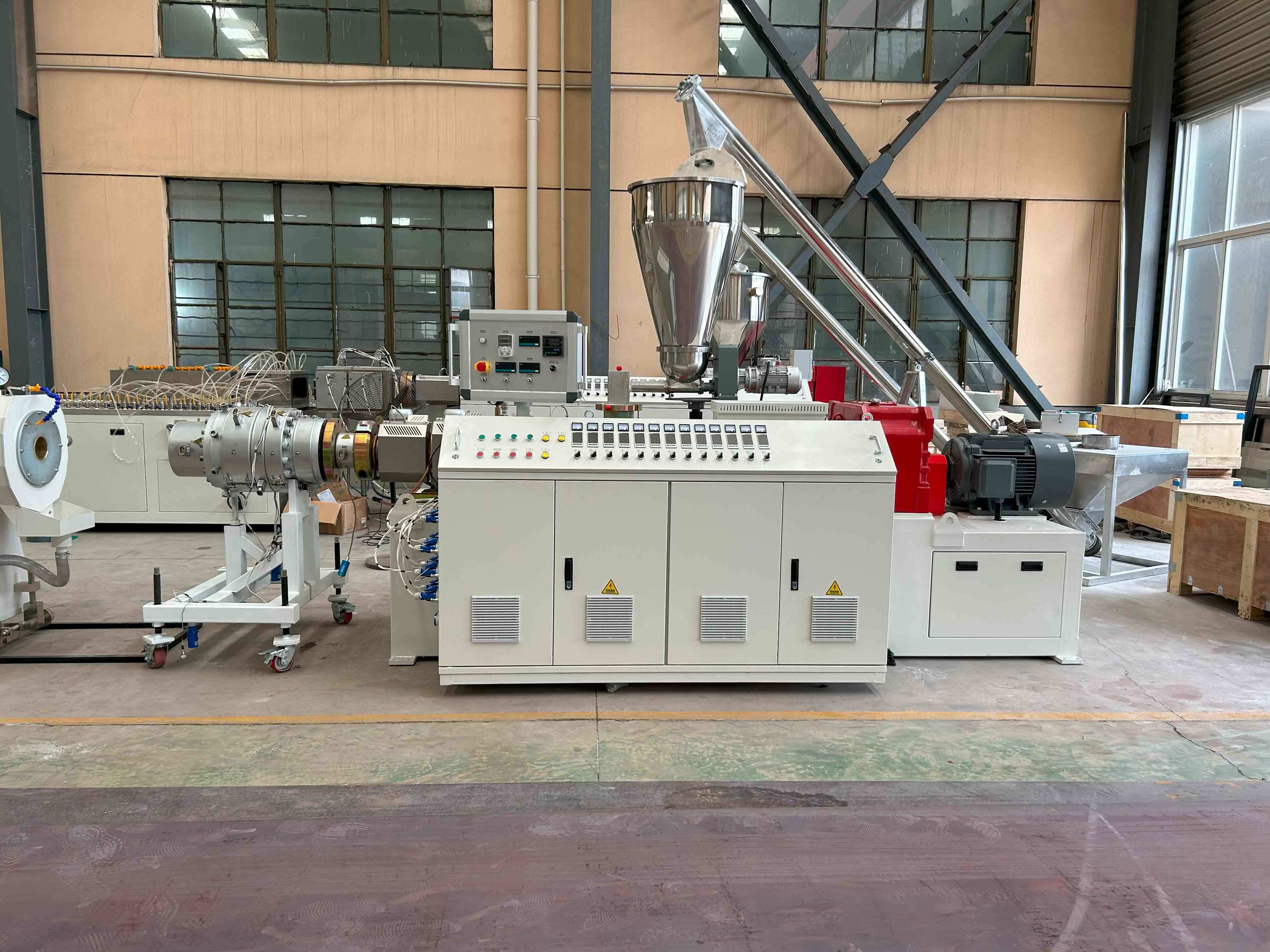

Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

Specifications:



Product detail

1. Raw Material Feeding
- PVC resin, stabilizers, plasticizers, and additives are mixed and fed into the hopper of the extruder.

2. Extrusion & Melting

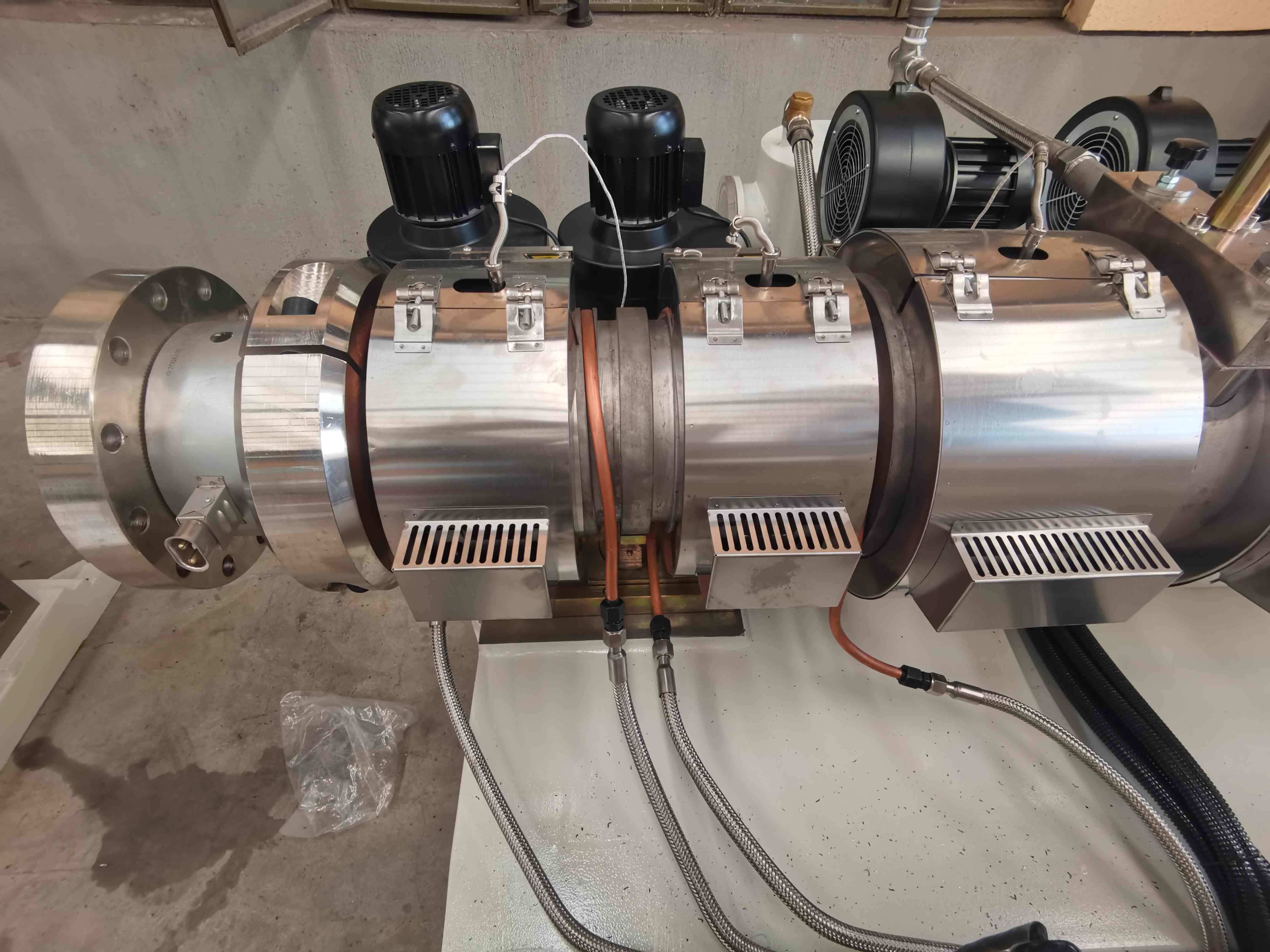

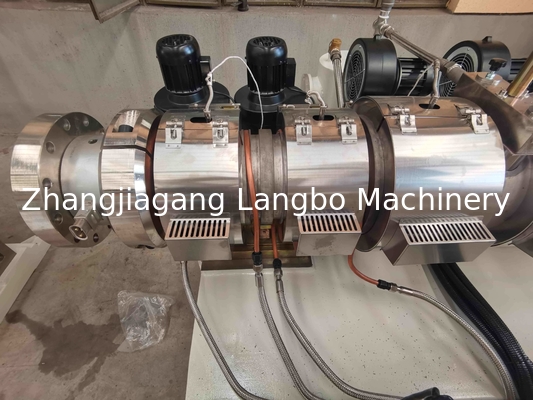

- The single/twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous tube.

3. Molding & Shaping
- For corrugated hoses, the molten PVC passes through a vacuum sizing tank and corrugator molds.
- For smooth tubes, a calibrator ensures precise diameter control.

4. Cooling & Solidification
- The shaped hose enters a water cooling tank to harden and stabilize its structure.

5. Perforation (Optional for Drip Irrigation Hoses)
- A punching unit creates evenly spaced holes for drip irrigation applications.

6. Traction & Length Control
- A puller maintains consistent speed, ensuring uniform hose length.

7. Cutting & Coiling
- An automatic cutter slices the hose into desired lengths, followed by winding into rolls or straight packing.

8. Quality Inspection & Packaging
- Final inspection for leak-proofing, pressure resistance, and dimensional accuracy before packaging.



Technical Features:

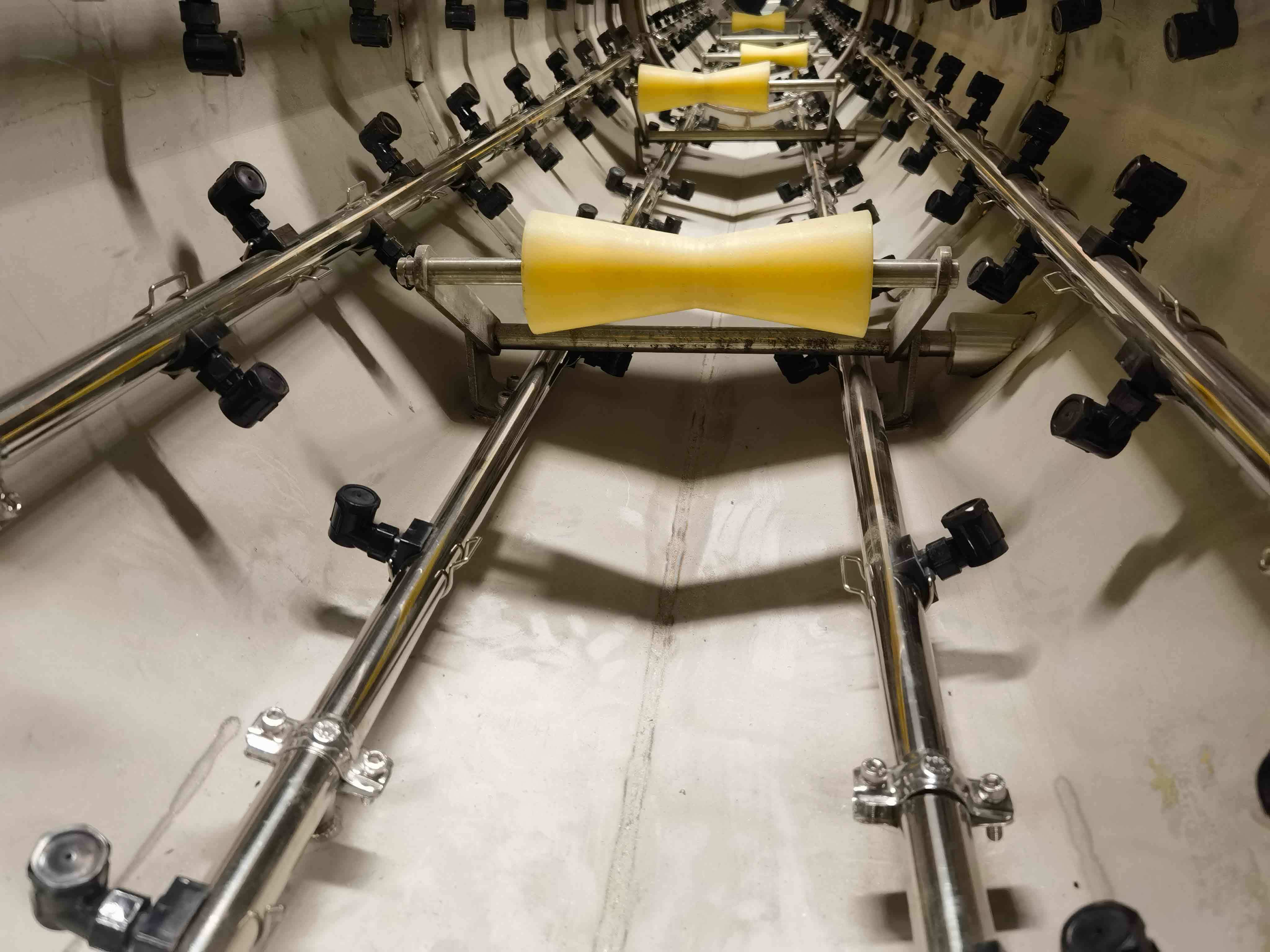

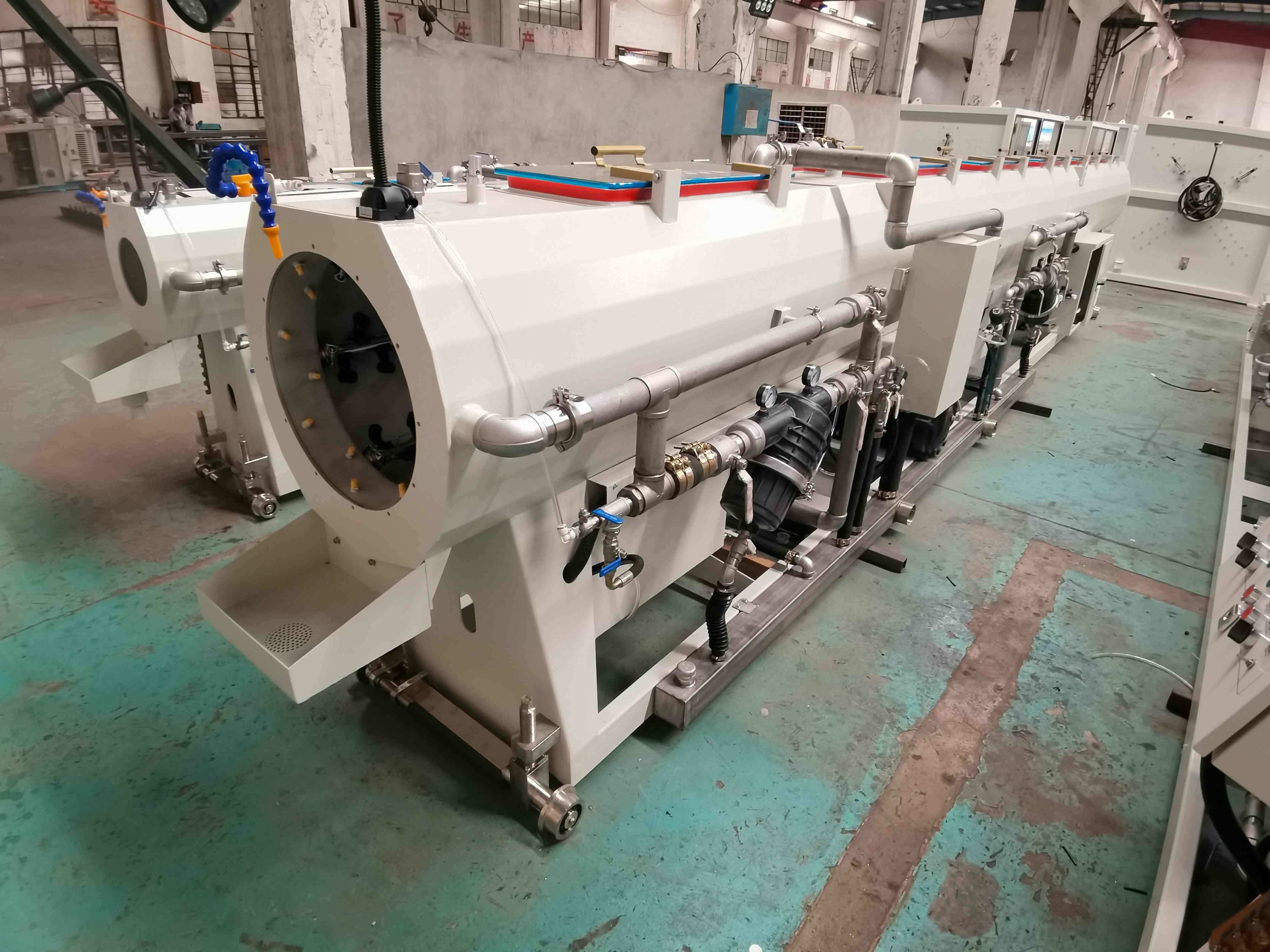

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. Its shape is advanced foreign multilateral anti-deformation structure. The cover is made of high quality casting aluminum alloy. The pipeline adopts the design of double loop pipeline, realizing non-stop pipeline clean and function of temperature control.

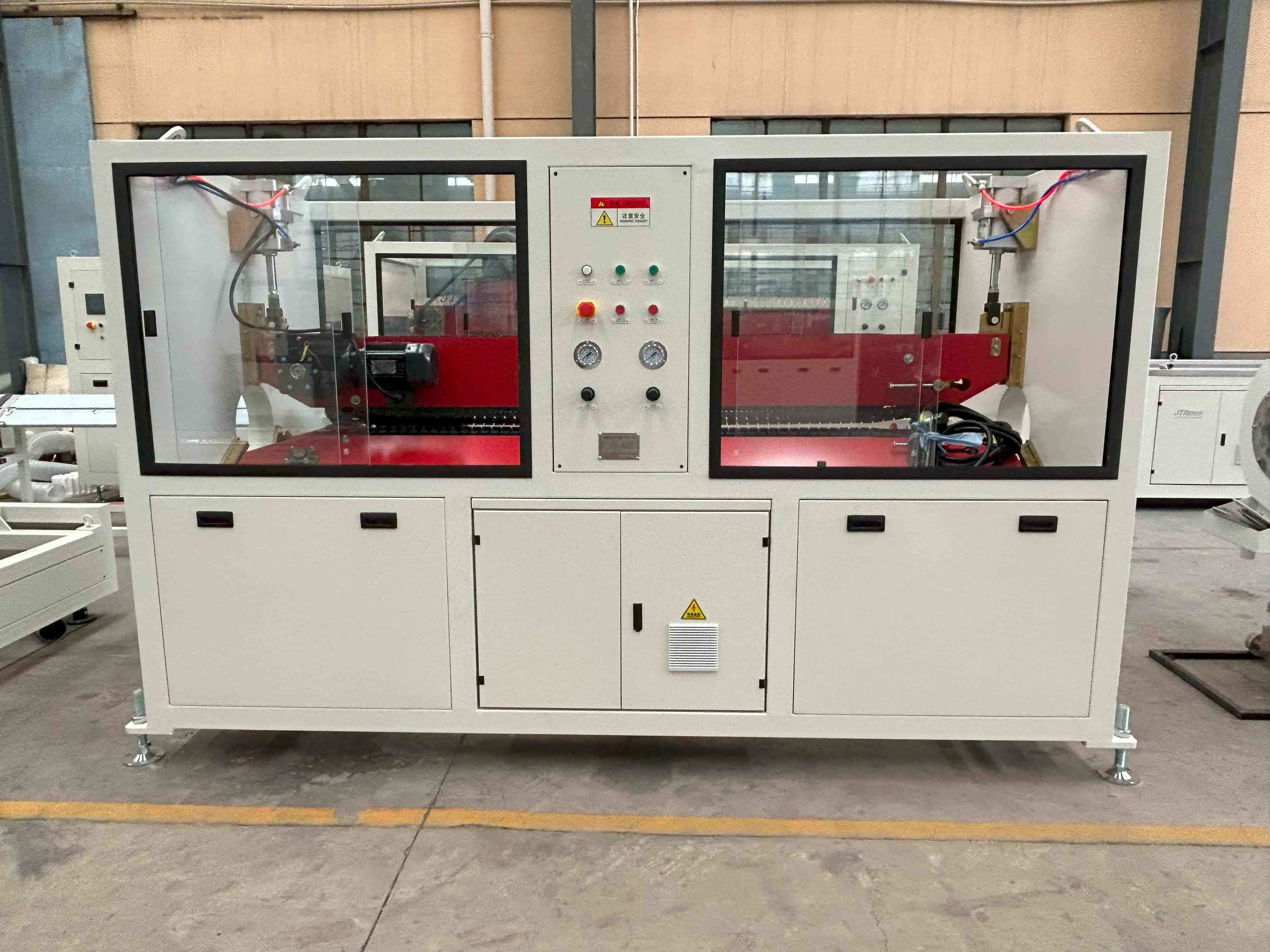

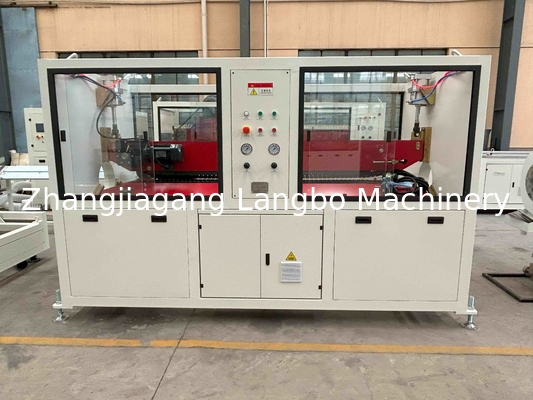

Caterpillar haul-off structure with sliding tempered glass is beautiful and practical. Traction device with V type rubber block caterpillar and controlled by imported inverter can steadily haul pipe. It also features compact structure and free-maintenance.



Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case



Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.
