PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line

1 SET
MOQ
USD EUR
Price
PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line
Features Gallery Product Description Request A Quote
Features
Specifications
PIPE DIAMETER: 75-250
EXTRUDER'S POWER: 55KW
COLOUR: CUSTOMIZED
PIPE UMBERS: DOUBLE PIPE
RAW MATERIAL: PVC POWDER & ADDITIVES
APPLICATION: WATER SUPPLY PIPE
Voltage: 380V 50Hz Or Customized
Automatic Grade: Full-automatically
Screw Design: Twin Screw And Barrel
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support
Warranty: 18 Months
Inverter: ABB
Color: Customizable
Raw Material: PVC Powder
Motor: SIEMENS Brand
Contactor: SIEMENS OR SCHNIDER
Screw And Barrel: Conical Twin Screw Extruder
Screw Diameter: 65/132
Pipe Application: Water Supply
Packages: Film And Boxes
Payment: T/T, L/C, Western Union
Delivery Time: 60 Days
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LB
Certification: CE ISO9001
Model Number: LB-32
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line


Short desciption

We provide a range of plastic pipe production lines, including 16-630mm PVC/UPVC pipe lines, 16-1200mm HDPE pipe lines, as well as lines for PP/PPR pipes, HDPE/PP/PVC double-wall corrugated pipes, and single-wall corrugated pipes. These lines can produce pipes for various applications such as water supply, drainage, gas supply, and conduit wiring. Specifically, the PVC pipe production line manufactures PVC pipes of different diameters and wall thicknesses, widely used in agricultural water supply, drainage, and electrical conduits.


Application

The UPVC pipes produced find extensive use in both industrial and daily scenarios, including electrical conduits, water supply pipes, sewage pipes, home decoration, chemical transportation, and gas distribution lines. They boast high strength and rigidity, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, low maintenance needs, and cost-effectiveness.


Producting process

PVC powder + additives → Mixing → Spring feeding → Twin-screw extruder → Mould and calibrator → Vacuum forming machine → Haul-off machine → Cutting machine → Stacker.


Specifications:


MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC


Product detail

Mixer

Boasting a specialized design, the mixer reduces raw material self-friction, which enhances energy utilization efficiency. Equipped with a vacuum suction loading system, it operates with low noise and maintains a dust-free working environment.

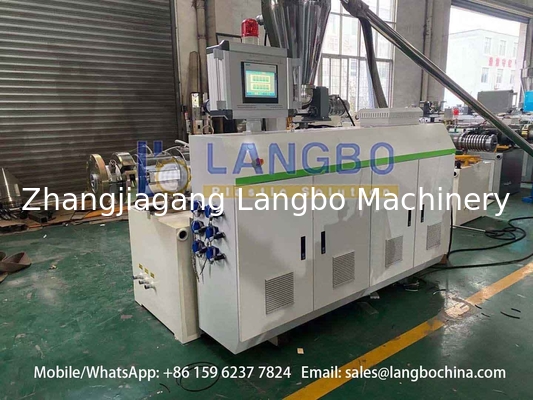

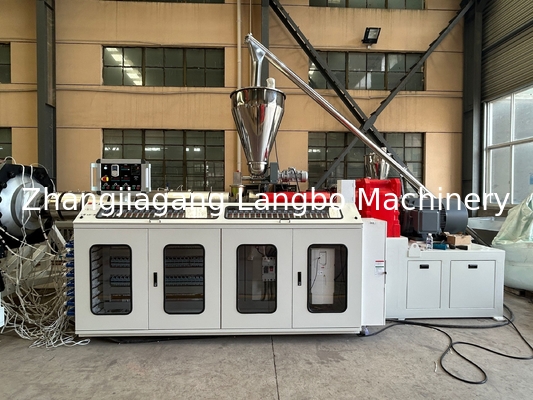

Twin screw extruder machine

Crafted with top-brand components, the extruder ensures stable production, high efficiency, and long-term durability. Its conical twin-screw design is tailored to raw material characteristics, enabling homogeneous mixing, superior plastification, and efficient conveying.

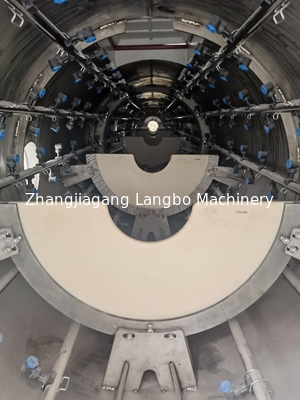

Vacuum Calibration & Cooling

The vacuum calibration tank features a two-chamber structure, integrating vacuum calibration and cooling functions. Both the vacuum tank and spraying cooling tank are made of 304 stainless steel. The high-performance vacuum system guarantees precise pipe sizing.


Haul-off Unit

Equipped with three caterpillar belts, the haul-off machine ensures stable movement of produced pipes. By adjusting the general control, it can be customized into tailored hauling modes to meet specific production requirements.

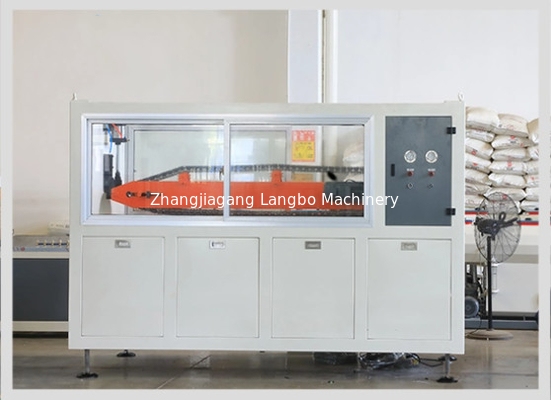

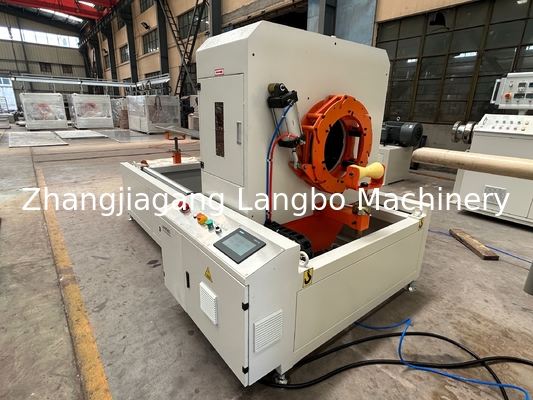

Cutting Unit

A high-precision encoder ensures accurate and stable cutting lengths. Controlled by a PLC system, it supports manual operation for cutting according to specific application needs.


Technical Features:
1- PLC control, high degree of automation
2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line 0 PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line 1PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line 2 PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line 3PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line 4 PVC Production Machine 20-110mm Plastic PVC Pipe Extruder Making Machine Extrusion Line 5

F & Q:

Are you a trading company or factory? Can I have a factory visiting?

We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.

How to build trust with Langbo

We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.


For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.

Is the shipping cost included in the quotation?

Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.


What will happen after order confirmation

confirmation of Configuration

Sign of Proforma invoice

30% of total price pre-payment for production starting

Test running in the house, customers on-site or video connecting

Confirmation of machine condition

70% of the total price for delivery preparation

Confirmation of Delivery date

Shipping to customer

On-site commissioning

Training in machine operation and maintenance

Confirmation of handover

One year guarantee

Whole lifecycle service and technical support

What is the Payment Method?

T/T, D/P, Letter of credit, Cash transaction

How to guarantee the machine quality made by Langbo

We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.

How can customers get the exact machine as they wish?

Factory visiting before order

Product sample posting to Langbo for a better understanding of customer’s expectations and configuration communication

On-site checking during test running

Do you have CE Certification?

Yes. Both our extrusion machine and plastic recycling machine have CE Certification.

What is the delivery time between order confirmation and delivery?

Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.

What are services for after-sale

One-year quality guarantee.

Quick response for technical support

Problem analysis for production problems

What means one-year quality guarantee

After the handover of the machine, Langbo provides free new parts for every non-man-made damage.


How to get the required area of the machine?


For a new plant, you can contact me. (sales@langbochina.com/ whatsapp:8615962377824) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
