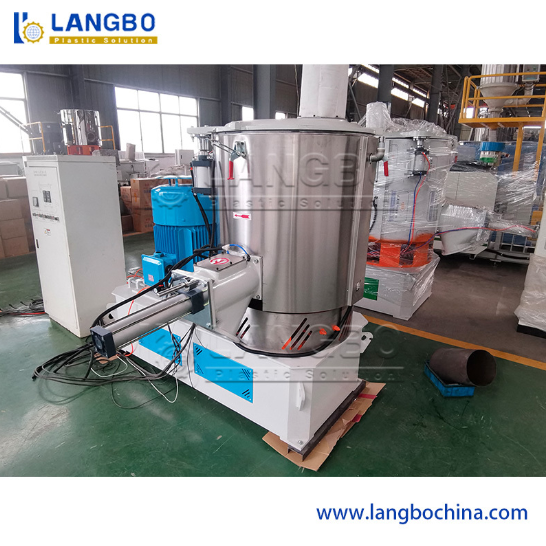

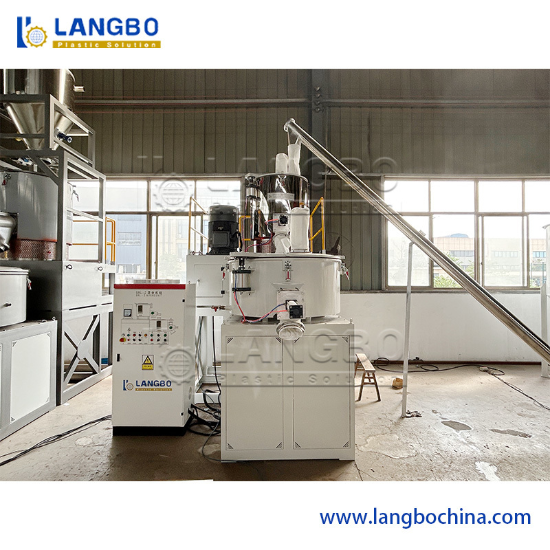

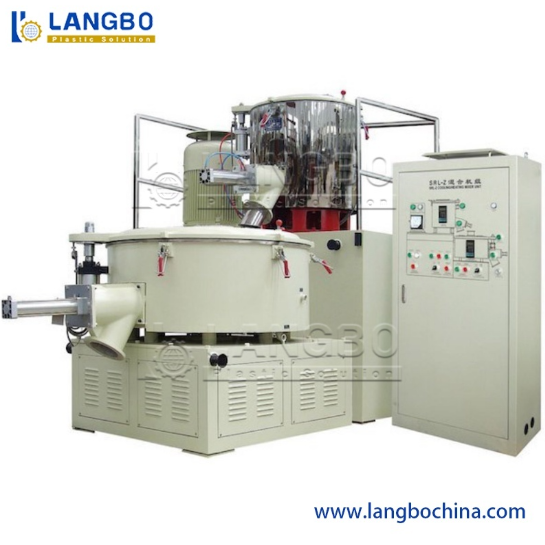

PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature
Product Details
| MIXER: | VERTICAL/HORIZONTAL COMBINATION | CONTROL: | AUTOMATIC |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Shipping: | By Sea | Mixture Material: | PVC |
| Highlight |
PVC mixer machine high shear mixing,PVC mixer adjustable temperature control,PVC mixer stable batch processing |
||
Product Description
- Blade made of stainless steel with dynamic and static balance refinement
- Double sealing cap with pneumatic start for easy operation
- Stainless steel cylinder with 8mm wall thickness
- Temperature auto control or time control discharge
- ABB inverter for motor start and speed regulation
- Direct & stable control type with analog display screen
- Automated manufacturing procedure reduces labor intensity and production costs
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kw) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
- One year guarantee for entire machine
- 24 hours technical support
- Overseas installation & commissioning services available
- Maintenance guidance and spare parts provision after warranty period
- Operator training services
