PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs

1 SET
MOQ
Negotiable（USD EUR）
Price
PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Packing Method: Wooden And Film Packages
Voltage: 380V Or Customized
Machinelength: Approximately 15 Meters
Dimensions: 16-300mm
Capacity: 250-300kg/h
Haul-Offspeed: 0-20 M/min Adjustable
Mark Line: SINGLE SCREW EXTRUDER
Productname: PPR Pipe Extrusion Line
Pipediameterrange: 16mm - 110mm
Electrical Components: Or Schnider
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE/ISO
Model Number: LB-63
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WOKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs
Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes

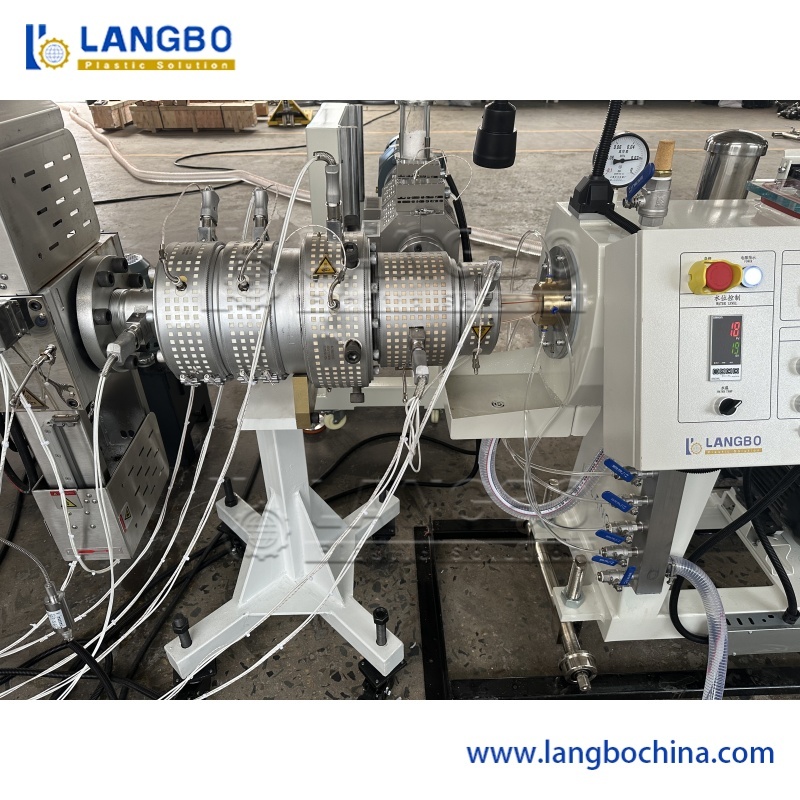

  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter

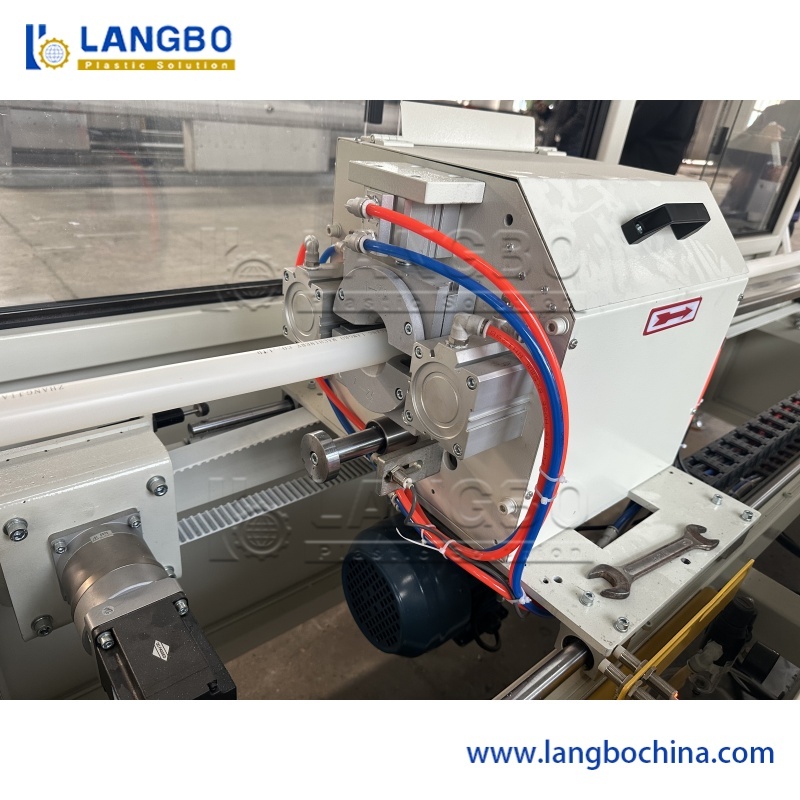

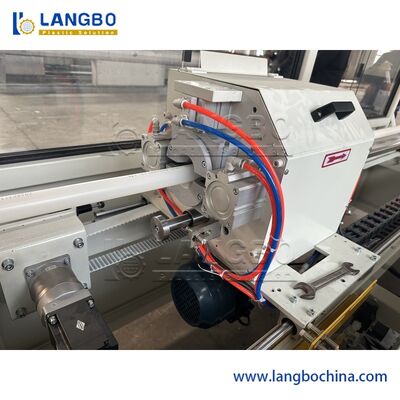

  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 0


PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 1

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 2PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 3

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

F
Fahad Al Quraishi
Saudi Arabia Oct 22.2025
Helpful (12)
We tested various PVC formulations, and the line handled them well. The calibration table ensures perfect profile shaping. Very suitable for mass production of shelf-edge price tags.
O
Olivia Grant
Canada Oct 16.2025
Helpful (24)
We mainly produce electrical conduit. The line performs consistently with precise diameter control. Energy consumption is lower than our previous system, and the vacuum tank is well designed for stable shaping. Highly recommended.
R
Rajesh Kumar
India Nov 27.2024
Helpful (15)
Plasticizing performance is consistent, and the output quality meets our production requirements.
