PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System

1 SET
MOQ
Negotiable（USD EUR）
Price
PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Screw Design: Single-screw
Pipe Diameter: 20-110MM
Length: 20mx2.5mx2.2m
Output: 120kg/h
Heatingzones: 4-6 Zones
Packing Method: Wooden And Film Packages
Materialtype: Polypropylene Random Copolymer (PPR)
Max Output: 150kg/h
Production Speed: 12m/min; 20m/min; 28m/min
Contactor: Schneider
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE/ISO
Model Number: LB-63
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WOKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System
This specialized PPR pipe making machine is designed for manufacturing pipes used in plumbing and floor heating systems, utilizing advanced co-extrusion technology for superior product quality.
Co-Extrusion Process
Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.
Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes

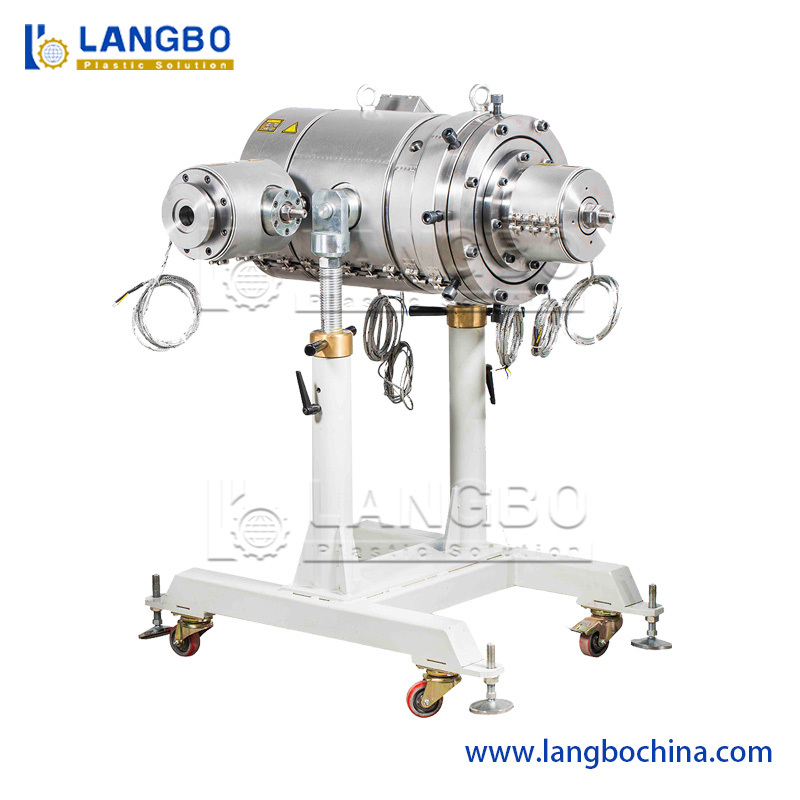

  • Die head

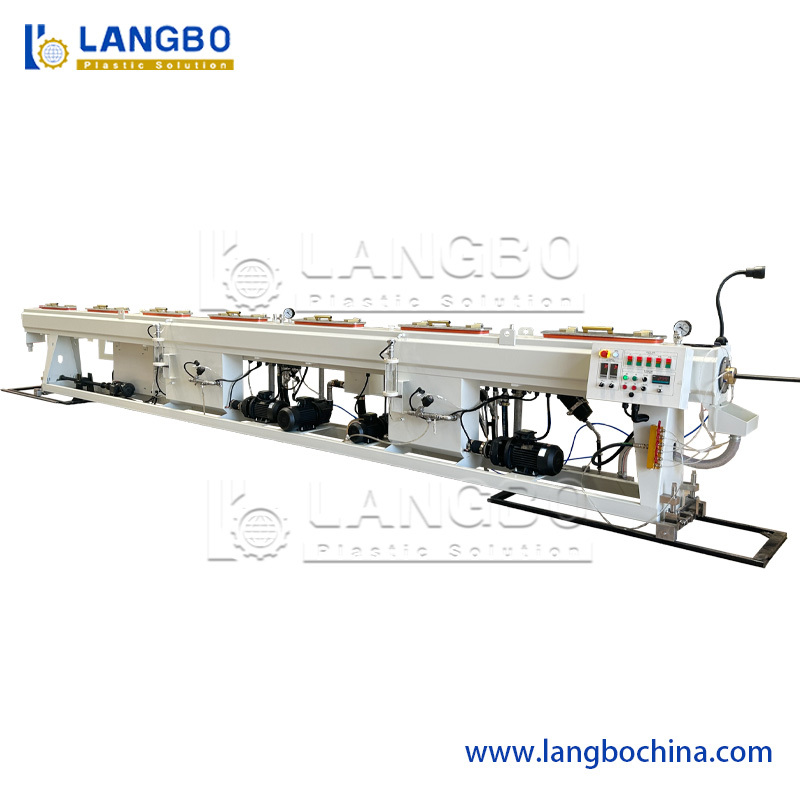

  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 0

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 1

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 2

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 3

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 4

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

J
Joel Ramirez
Philippines Aug 21.2025
Helpful (12)
The machine runs smoothly, and the pipe quality is reliable. The cutter performs clean cuts without deformation. Ideal for pipe manufacturing.
