ISO Auto PVC Mixer Machine With Durable Screw Conveyors High Performance
Product Details
| VESSEL VOLUME: | 800L/3000L | MIXER TYPE: | VERTICAL |
|---|---|---|---|
| NOTOR POWER: | 83/110/30KW | DISCHARGING: | AUTO PNEUMATIC |
| TEMPERATURE: | AOTOMATIC CONTROL | FEEDING WAY: | SCREW CONVEYOR |
| Highlight |
pvc compounding mixer,heating cooling mixer |
||
Product Description
PVC HEATER-COOLER MIXERS WITH THE SCREW CONVEYORS FOR PVC PROFILE EXTRUSION
COMPONENTS AND FEATURES:

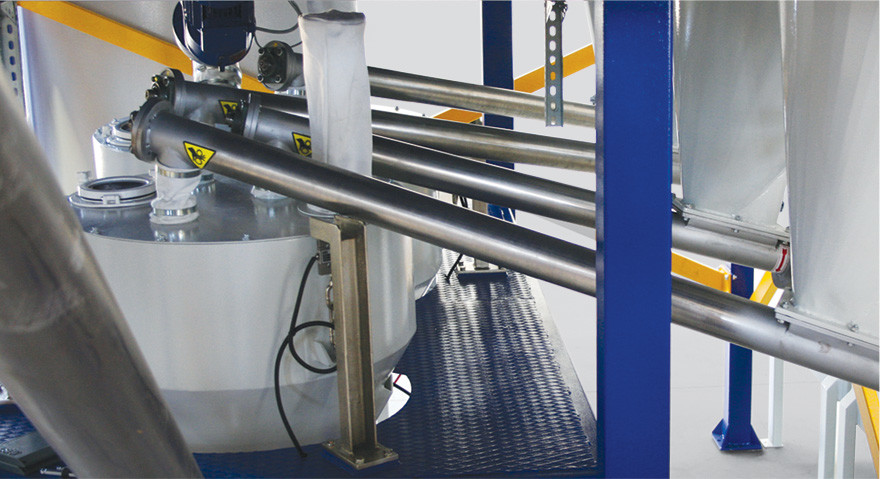

Screw conveyors are widely used for conveying or movement of raw materials from one place to another. These conveyors are specially used for dusty, hot material and they are fabricated from quality materials like stainless steel to resist corrosion, and other metals for purpose of vertical or horizontal transportation, according to the size and capacity Screw conveyors are available in a variety of types
Advantages:
Maximum capacity and productivity – Save time – Save handwork

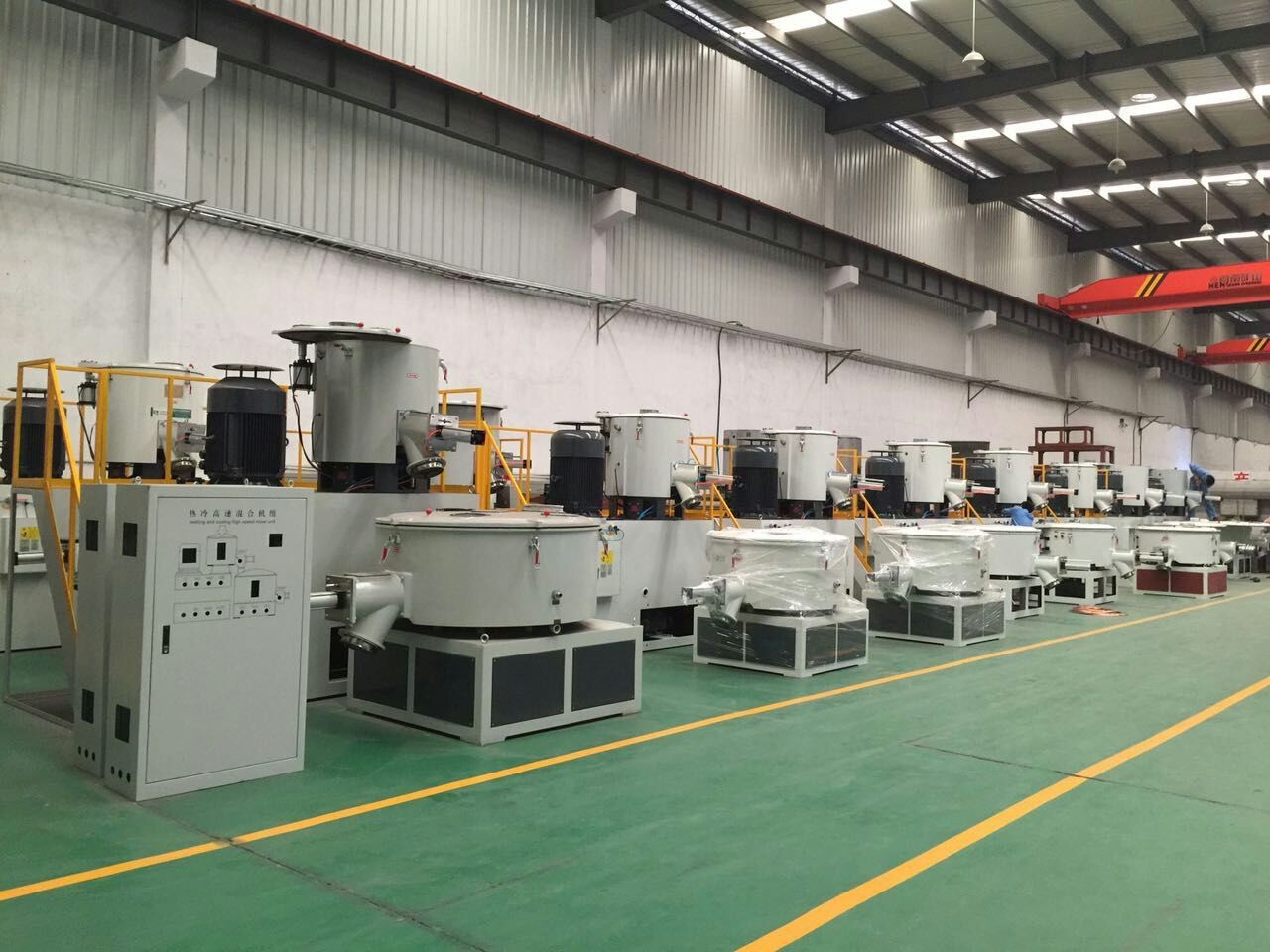

Vertical type heater –cooler mixers for extrusion line of PVC profile are an essential and integral part of high performance processing units.
Ideal appliance for fast preparation of mixers in general and PVC compounds in particular, mixer models available in configuration depending of the capacity and materials designing for each specific production requirement.
- Universal usable
- Available with different drive options
- High throughput rates with optimal mixing quality
- Low operation costs
- Compact design
USAGE AREAS OF MIXER:

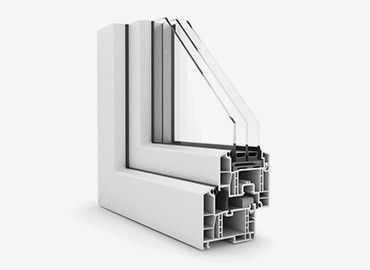

- PVC Window & Door profiles
- PVC water pipes
- PVC cables
- PVC cable channels
- PVC Curtain Rails
- PVC Hoses
- PVC Water Isolation Membranes

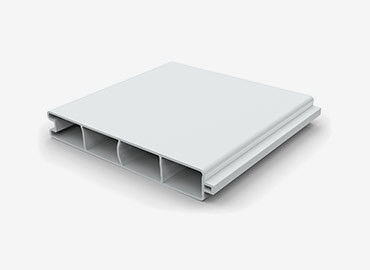

- PVC Panels
- PVC Shoe Soles
- PVC Floor Covers
- PVC Shrink Film
- PVC Tent
Optional Accessories:
The production will be with soft starter if frequency inverter is not ordered with the machine.The production will be with Microcontroller if PLC is not ordered with the machine.
Mixture quantity:
- Including all of additives and raw material density, which will be mixed, are calculated as 0.5kg/lt and mixture temperature 120 degrees centigrade. Depend of the auxiliary raw material, the loading system can be different.
- Changeable quantity is the event of the plant temperature conditions
Specification:
| Model |
Mixing Container Volume (lt) (Heater /Cooler) |
Motor Power (kw) (Heater/Cooler) |
Discharging |
| LB-100/300 | 100/300 | 14/22/7.5AC | Pneumatic |
| LB-200/500 | 200/500 | 30/42/11AC | Pneumatic |
| LB-300/600 | 300/600 | 40/55/11AC | Pneumatic |
| LB-500/1000 | 500/1000 | 55/75/15 AC | Pneumatic |
| LB-500/1600 | 500/1600 | 55/75/15 AC | Pneumatic |
ADVANTAGES:
• Maximum capacity and efficiency
• Savings from time
• Save handwork
• Additives used in each product provides the same rate and ensures the continuity of product quality.
• Reduce waste
