High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size

High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size
High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size

Large Image :  High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

High Efficiency PVC Wall Panel Extrusion Line Automatic Control 300MM Profile Size

Description
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: MAX. 300MM
MOTOR POWER: 37KW RAW MATERIAL: PVC & ADDITIVES
CUTTER: SAW CUTTER CAPACITY: 200-250KG/H
Voltage: 380V 50HZ 3Phase(Customized) Application: Profile,Sheet
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service Warranty: 1 Year
High Light:

pvc marble sheet production line

,

pvc sheet making machine

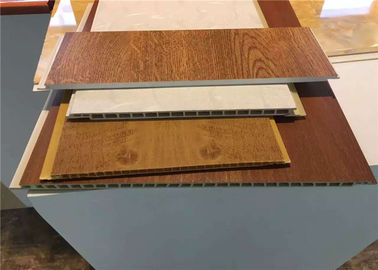

High Efficiency PVC Wall Panel  AND Ceiling Panel Extrusion Line with Automatic Control 300MM Profile Size



Composition of 65/132 Connical Twin screw extrusion line

Item Quantity
SJSZ- XX Twin Screw Extruder with Automatic Feeding System One set
Die Mold & Stock Mold One set
Vacuum Calibrarion Table One set
Haul-off and Cutter Unit One set
Stacker One set
Electric Control System

One set





The complete extrusion consists of following items:

  • Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Mould:

Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

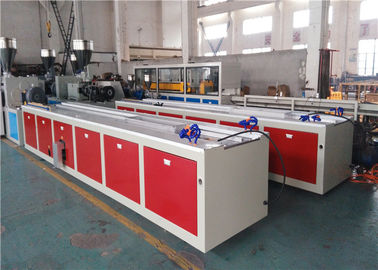

  • Calibration Table:

The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.

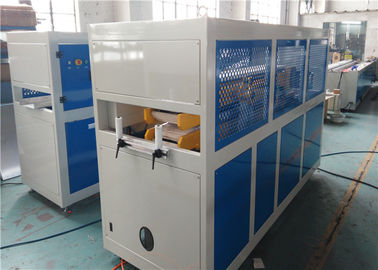

  • Caterpillar Haul-off:

The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.

  • Saw cutter:

In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length.

During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.



  • Tip-off unit:

It operates on pneumatic cylinder.



SPECIFICATIONS:



MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER(kw)
LB-108 108 SJZ51/105 18.5AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188

110 D
