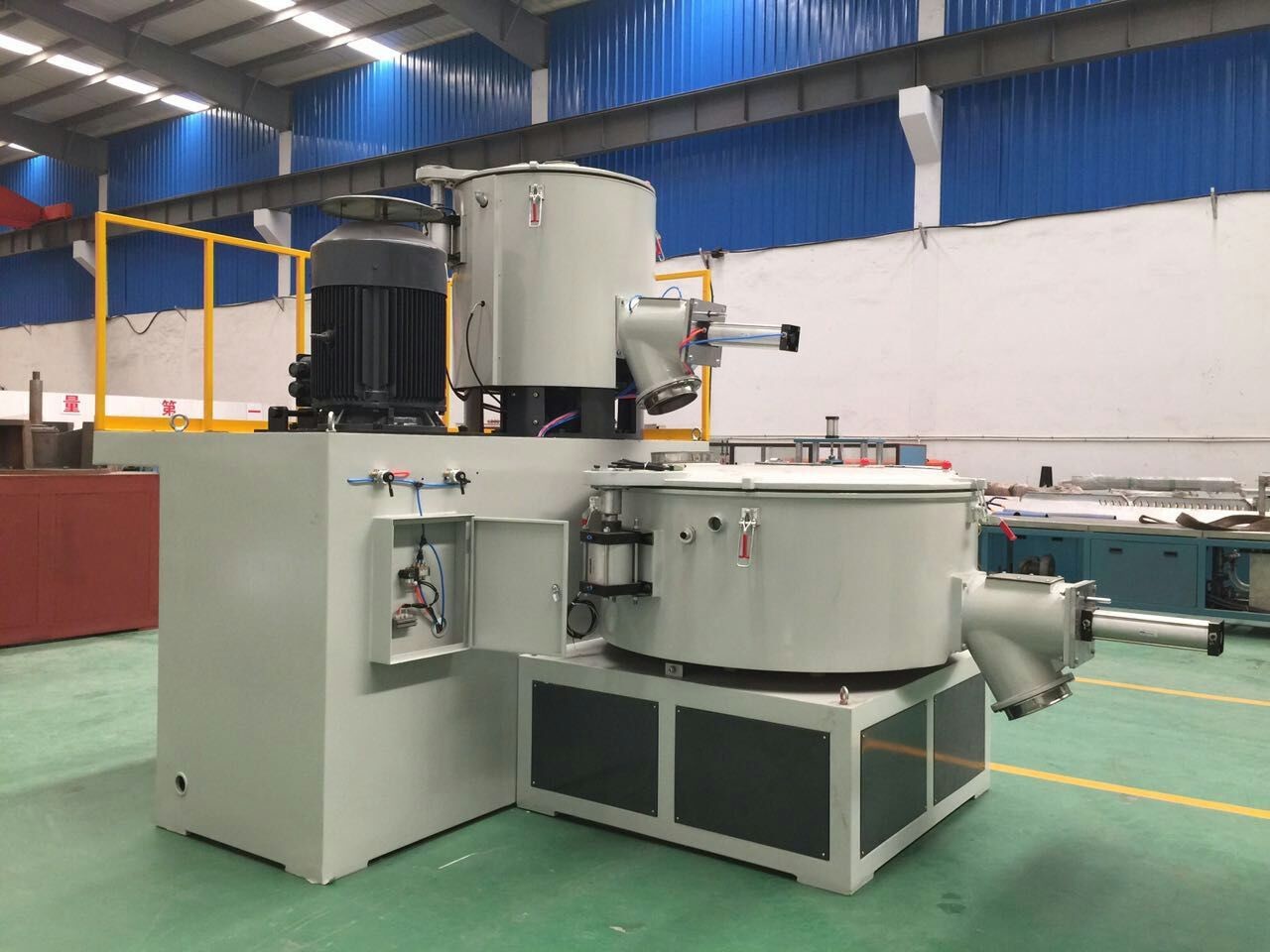

Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo

Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo
Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo

Large Image :  Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE, ISO
Model Number: LB-800/2500V
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SET PER MONTH

Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo

Description
VESSEL VOLUME: 300L / 600L MIXER TYPE: VERTICAL
NOTOR POWER: 45/55/11KW DISCHARGING: PNEUMATIC
TEMPERATURE: AOTOMATIC CONTROL FEEDING WAY: PNEUMATIC SYSTEM
High Light:

pvc compounding mixer

,

plastic mixer machine

Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo



COMPONENTS AND FEATURES:

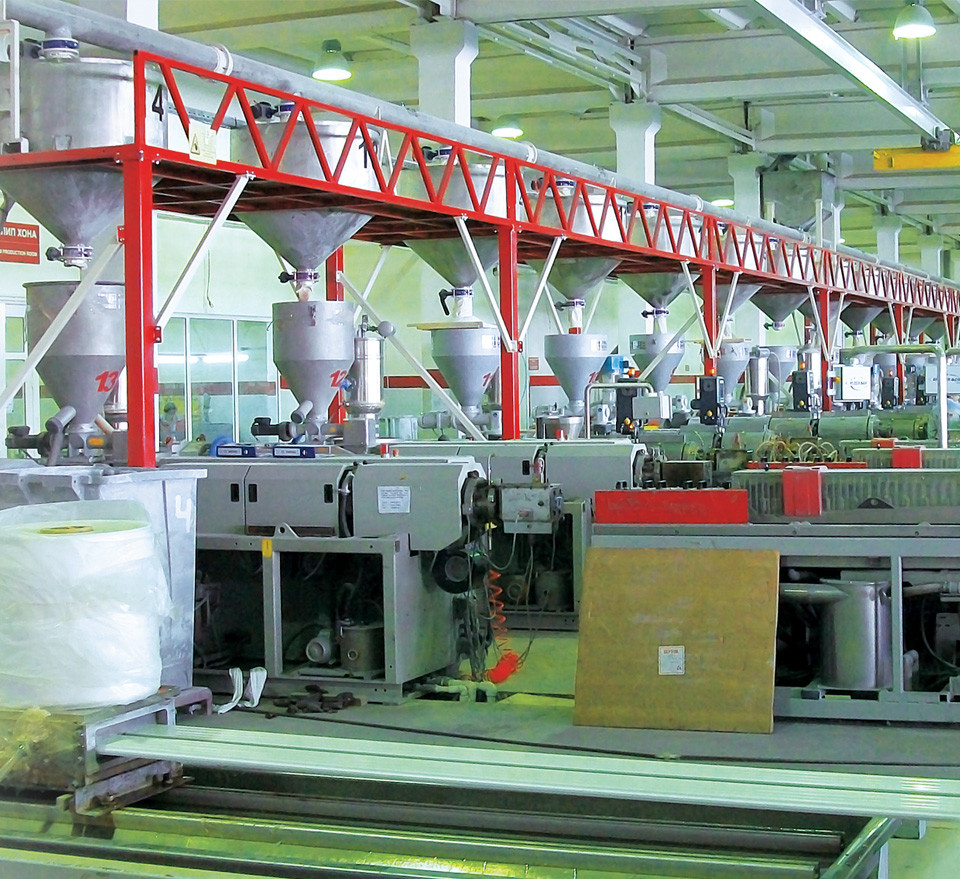

Plastic powder and granules can be transferred gently with pneumatic conveying systems. Pneumatic conveying, handling and dosing systems are used to convey, load, unload, fill, discharge and dose bulk solids. Granules and powder materials can be transported through pipes by vacuum or pressure. There exists large number of applications that use pneumatic conveying systems.



In production for providing the desired process in the purpose of storing and
holding capacity from 5 to 30 m3 volume of the raw materials storage silos are operative. Raw material storage silos can be manufactured from black metal and stainless steel, assembly and
design by our factory. Dimensions and diameters of the silos are designed and produce according to the capacity of the production (client factory) and size of the area to be established. In production of materials with intensive calcite to provide easier drain vibro-motor of adequate power is used.

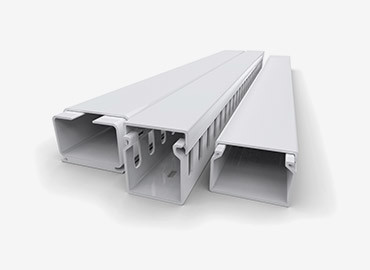

PVC mixers applied in the extrusion lines for PVC cable channel are an essential and integral part of high performance processing units.

Ideal appliance for fast preparation of mixers in general and PVC compounds in particular, mixer models available in configuration depending of the capacity and materials designing for each specific production requirement.

  • Universal usable
  • Available with different drive options
  • High throughput rates with optimal mixing quality
  • Low operation costs
  • Compact design



USAGE AREAS OF MIXER:

  • PVC Window & Door profiles
  • PVC water pipes
  • PVC cables
  • PVC cable channels
  • PVC Curtain Rails
  • PVC Hoses
  • PVC Water Isolation Membranes
  • PVC Panels
  • PVC Shoe Soles
  • PVC Floor Covers
  • PVC Shrink Film
  • PVC Tent



Optional Accessories:

  • The production will be with soft starter if frequency inverter is not ordered with the machine.
  • The production will be with Microcontroller if PLC is not ordered with the machine.



Mixture quantity:

  • Including all of additives and raw material density, which will be mixed, are calculated as 0.5kg/lt and mixture temperature 120 degrees centigrade. Depend of the auxiliary raw material, the loading system can be different.
  • Changeable quantity is the event of the plant temperature conditions.



PVC mixers applied in the extrusion lines for PVC cable channel​ specification:



Model

Mixing Container Volume (lt)

(Heater /Cooler)

Motor Power (kw)

(Heater/Cooler)

Discharging
LB-100/300 100/300 14/22/7.5AC Pneumatic
LB-200/500 200/500 30/42/11AC Pneumatic
LB-300/600 300/600 40/55/11AC Pneumatic
LB-500/1000 500/1000 55/75/15 AC Pneumatic
LB-500/1600 500/1600 55/75/15 AC Pneumatic

Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo 0



Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo 1

Various Volume PVC Mixer Machine With Pneumatic Conveying System / Silo 2
