Hot Water PE Pipe Extrusion Line Vacuum Calibration Sleeves 160KW Power
Product Details
| Extruder Power (kw): | 160KW | PIPE DIAMETER: | 110-315MM |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | APPLICATION: | HOT WATER AND HEATING PIPE |
| MARK LINE: | SINGLE SCREW EXTRUDER | SCREW DIAMETER: | 120MM |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| Plastic Processed: | HDPE/PP /PE/PPR | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 1 Year | Color: | Customised |
| Control: | PLC+Touch Screen | ||
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description

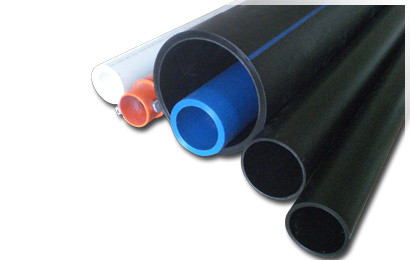

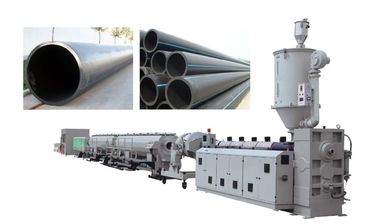

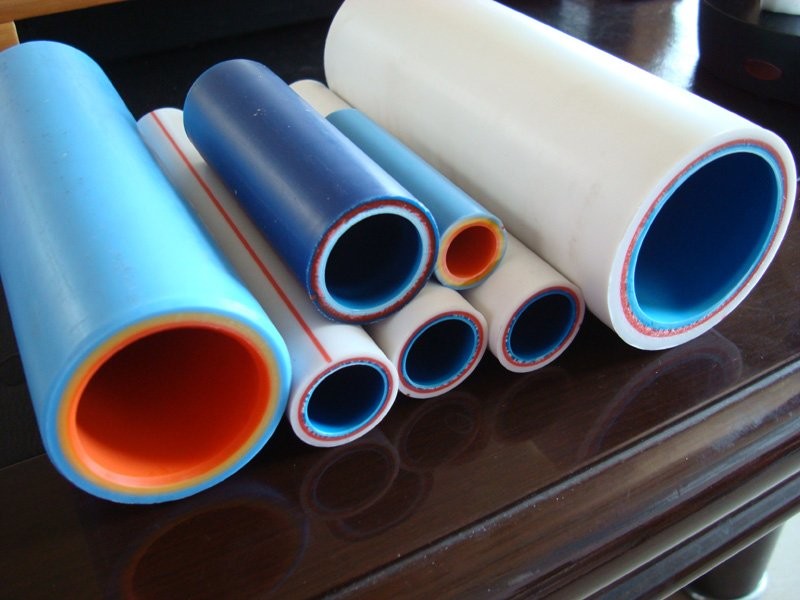

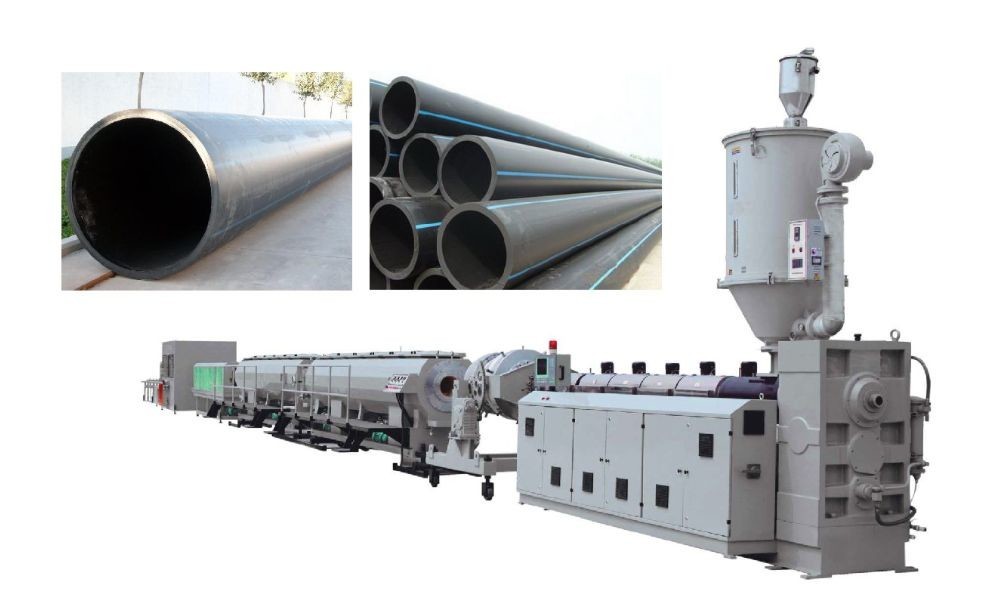

PE HOT WATER AND HEATING PIPE EXTRUSION LINES WITH VACUUM CALIBRATION SLEEVES
Product Application:
SJ series single screw extruder, is suitable for PP, PE and other thermoplastic special-shaped material, plate, sheet, rod, and plastic granulation processing.According to different raw materials and products specifications, screw with different length to diameter ratio and compression ratio, barrel with different structure.Choose the right machine barrel, screw and drive mechanism, in order to satisfy the demands of the processing of high quality products.

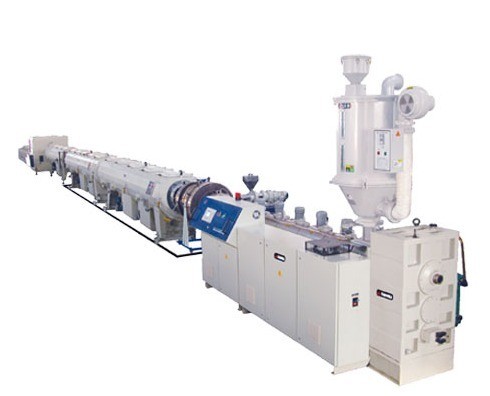

The Single Screw Extruder is designed for the PE and PP pipe applications.
We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.
High flexibility in raw material combinations
Gentle and homogeneous plastification
Different screw geometries for customer’s special needs
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
Product Range
Screw diameters from to 45 to 160 mm
L/D ratios from 30:1 to 36:1
Outputs from 85 to 1650 kg/h
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.
LANGBO presents fully automatic pipe coilers for three different dimensions as 16mm-32mm , 20mm-63mm and 50mm-125mm. As an option, we can add Pipe Diversion Unit to our torque controlled coilers if required.
As the coiling finished, with the help of the mechanism which allows to co¬nnect the egde of the pipet to the rill, the connection to the rill has became easier.
With their working speeds and adjustable torque values, our coilers are also suitable for the Natural Gas Pipe production and they also provide a safe and a quality coiling processr
With PLC Touchscreen Panel Control Unit, Kuatro-Plast coilers allows you to control the diameter of the coiled pipe, speed and torque values easily
Thank to their PLC Controller, the coilers which we especially produced for the diameters 16-32mm and 20-63mm, work syncronized with the production line with no problem.
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.
Volumetric and gravimetric dosing units
Raw material loading units
Ink jet marking units
Winding units
Tilting tables
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER |
| LB-63 | 20-63 | SJ65/33 | 55AC |
| LB-110 | 20-110 | SJ65/33 | 55AC |
| LB-160 | 75-160 | SJ75/33 | 90AC |
| LB-250 | 90-250 | SJ75/33 | 110DC |
| LB-315 | 110-315 | SJ90/33 | 160DC |
| LB-450 | 160-450 | SJ90/33 | 160DC |
| LB-630 | 315-630 | SJ120/33 | 280DC |
| LB-800 | 500-800 | SJ150/33 | 315DC |
| LB-1200 | 710-1200 | SJ150/34 | 400DC |
