PPR / ABS HDPE Pipe Production Line , 3 - 10 Kg/H Plastic Pipe Production Line
Product Details
| Condition: | New | COLOUR: | BLACK, ORANGE |
|---|---|---|---|
| Outlet: | Single Outlet | Output: | 3-10 Kg/h |
| Inverte: | ABB | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | 380V 50HZ 3Phase(Customized) |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 1 Year | Color: | Customised |
| Control: | PLC+Touch Screen | ||
| Highlight |
pe pipe production line,plastic pipe extrusion machine |
||
Product Description

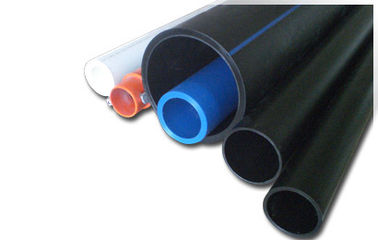

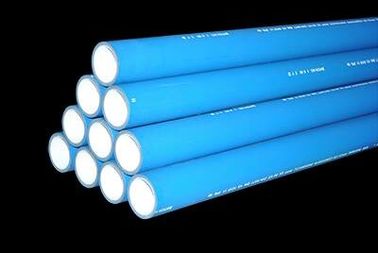

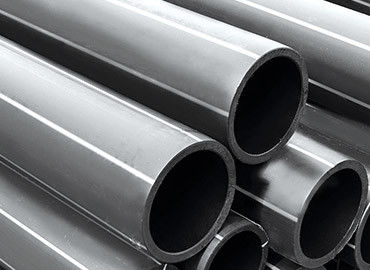

Plastic PE Pipe Extrusion Line For PPR , HDPE Single Screw Extruders
The Single Screw Extruder is designed for PE and PP pipe applications.We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.
High flexibility in raw material combinations
Gentle and homogeneous plastification
Different screw geometries for customer’s special needs
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
Product Range
Screw diameters from 45 to 160 mm
L/D ratios from 30:1 to 36:1
Outputs from 85 to 1650 kg/h
All Extrusion pipelines can be equipped with various auxiliary equipment in order to meet our customer’s requests and provide solution from a single source.
Covering a large range of diameters, we supply vacuum calibration sleeves which are used inside the vacuum tanks for the calibration process.
Features
High wear-resistant
Definite outer diameter calibration
Product Range Diameters from 16 to 800 mm
Application:
This machine is mainly used to process PP, PE,PPR and other plastic materials equipped with auxiliary machines, it can manufacture profile, pipes, wire and other plastic products and granulation. it has the advantage of simple production technological process, high output, stable quality and low cost.
Features:
SJ series extruder is composed of barrel screw, gear transmission system,measurable feeding, vacuum gasing, heating, cooling and electronic control components, etc.
The screw is made by high precision special digital screw miller, extruding property can be highly harmonized.
It has firstly introduced the advanced technique of producing screws with variable pitch and depth so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure.
The involute gear driving is characterized by low noise, stability in working , big bearing capacity, and long service life.
This machine is advanced in design, high in output, good in plasticization and low in energy consumption.
Technical Data:
| Product Name | Screw diameter (mm) | L/D | Motor power kW |
Screw speed (r/min) |
Max output (kg/h) |
| SJ25/25 | 25 | 25:1 | 1.5 | 100 | 3.4 |
| SJ30/25 | 30 | 25:1 | 5.5 | 125 | 12.5 |
| SJ45/25 | 45 | 25:1 | 7.5 | 100 | 20 |
| SJ45/30 | 45 | 30:1 | 15 | 145 | 40 |
| SJ45/30 | 45 | 30:1 | 30 | 185 | 120 |
| SJ65/25 | 65 | 25:1 | 22 | 100 | 60 |
| SJ65/30 | 65 | 30:1 | 30 | 105 | 80 |
| SJ65/30 | 65 | 30:1 | 45 | 120 | 120 |
| SJ75/30 | 75 | 30:1 | 90 | 120 | 350 |
| SJ90/25 | 90 | 25:1 | 55 | 120 | 150 |
| SJ90/30 | 90 | 30:1 | 90 | 94 | 250 |
| SJ120/25 | 120 | 25:1 | 90 | 94 | 350 |
| SJ120/30 | 120 | 30:1 | 110 | 94 | 350 |
| SJ120/33 | 120 | 33:1 | 250 | 94 | 800 |
| SJ150/30 | 150 | 30:1 | 132 | 50 | 350 |
Our Advantages:
High quality
Reliable, Durable
Reasonable and competitive price
Good after-sale service & within 12hours replying by email
One year guarantee
Our Services:
Engineers available to service machinery overseas.
Warranty: One year after B/L date.
If the equipment fails due to the quality of the machine for one year, we will provide replacement and the repair Free of Charge. After One Year customer must pay for Spare Parts, we will provide long-term technical assistance.
Workers must operate the machines according to the design of the machine. XINYAO Machinery will not be responsible for accidents which are caused by improper operation of workers.
