300mm PVC Profile Extrusion Line With Conical Double Screw Extruder

300mm PVC Profile Extrusion Line With Conical Double Screw Extruder
300mm PVC Profile Extrusion Line With Conical Double Screw Extruder 300mm PVC Profile Extrusion Line With Conical Double Screw Extruder

Large Image :  300mm PVC Profile Extrusion Line With Conical Double Screw Extruder

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

300mm PVC Profile Extrusion Line With Conical Double Screw Extruder

Output: 120KG/H Production Speed: MAX. 6m/min
CUTTER: SAW CUTTER Screw Design: Conical Twin Screw
Voltage: 380V 50HZ 3Phase(Customized) After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service
Automatic Grade: Automatic Warranty: 12 Months After Installation In Local Place
Color: Depand On Customers' Demand
High Light:

pvc marble sheet production line


pvc sheet making machine

300mm PVC Ceiling Panel Profile Extrusion Line Conical Double Screw Extruder


1. PVC Ceiling panel extrusion line description:


PVC ceiling panel extrusion line consists of control system conical twin screw extruder, extrusion die, calibration unit, haul-off unit, cutting machine and stacker. This PVC ceiling production line has compact good plasticization, high output capacity, long life and other advantages If change some parts and die head, this PVC ceiling panel extrusion line also can produce other PVC profiles.


Features of PVC Ceiling panel:

1. Protection of the pig partition.

2. farrowing crate.

3. Fireproof and flame retardant

4. High intensity, resist erosion, anti aging and Convenient Installation

5. Fireproof, Heat Insulation, Moisture-Proof, Soundproof, Waterproof

6. Easy Setting and Cleaning

7. Good electric insulation, there is Metal-free, good electrical insulation and thermal stability.

8. Good mechanical strength. The hollow board can be cut, sawing, nailing, which is convenient for the further processing of installation

9. Good flexibility, easy to shape, not easy to brittle.

10. Saving labor costs, Light weight, easy installation, reducing the workload of workers, saving installation costs.


The complete extrusion consists of following items:

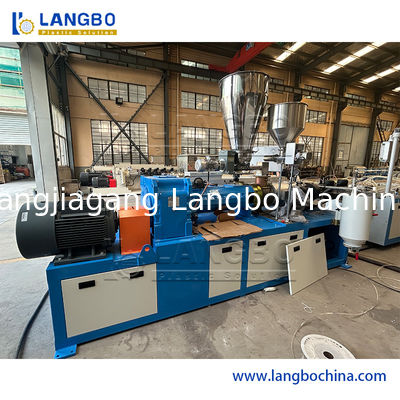

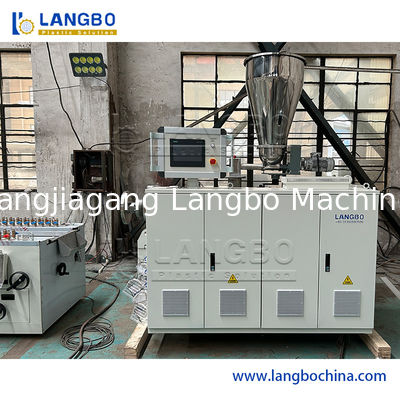

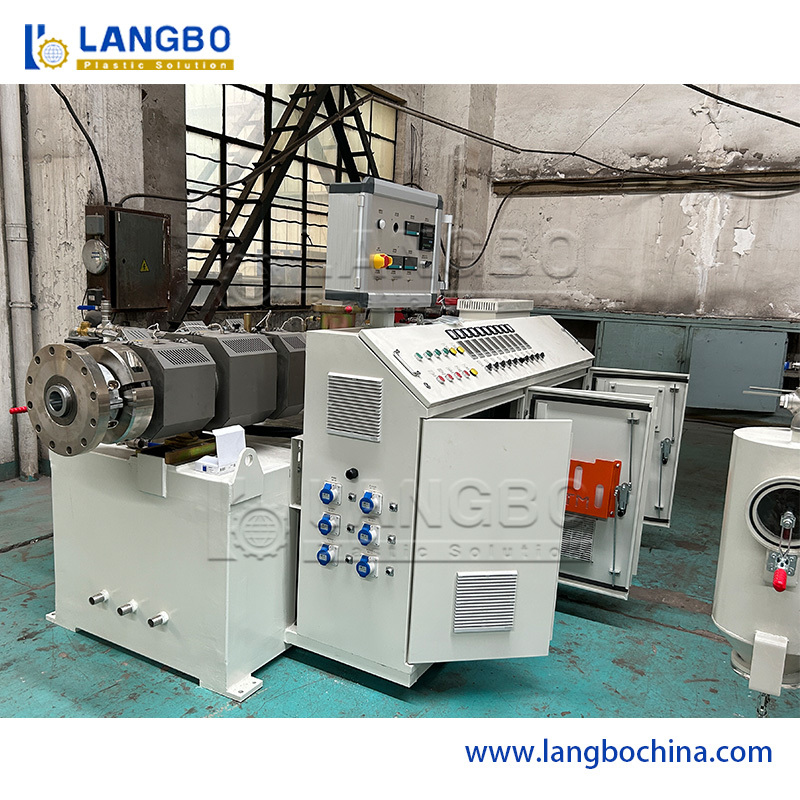

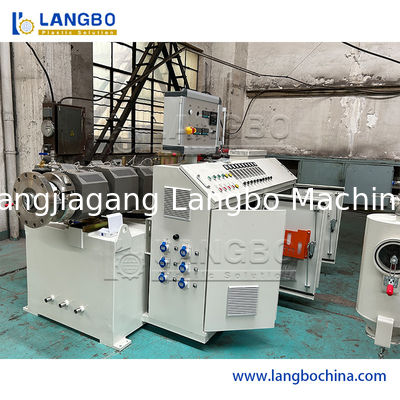

  • Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

300mm PVC Profile Extrusion Line With Conical Double Screw Extruder 0

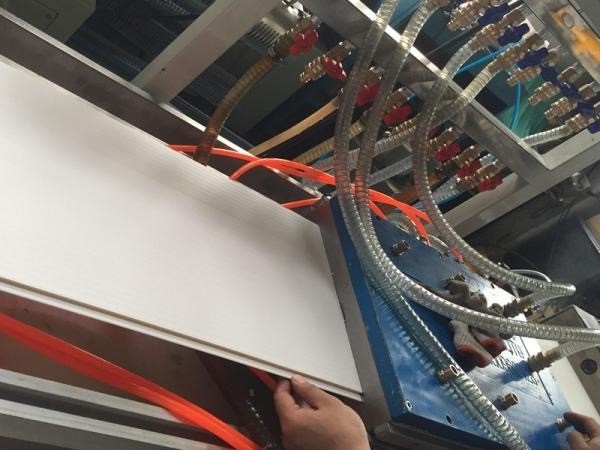

  • Mould: Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

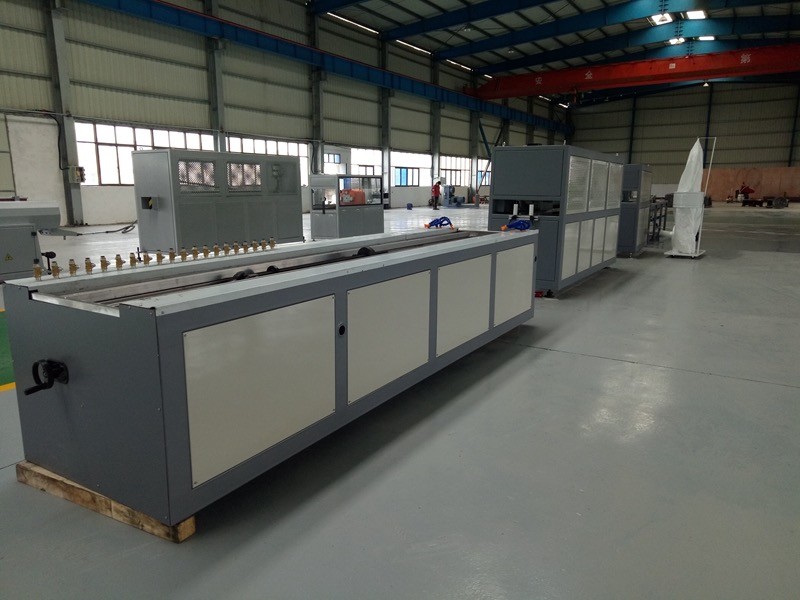

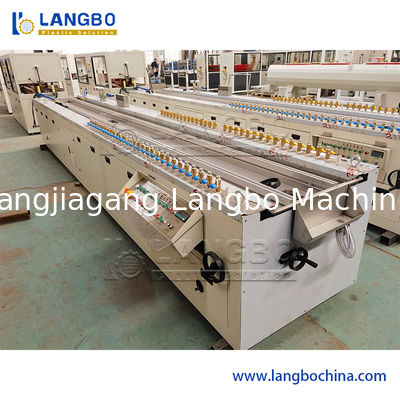

  • Calibration Table:The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.

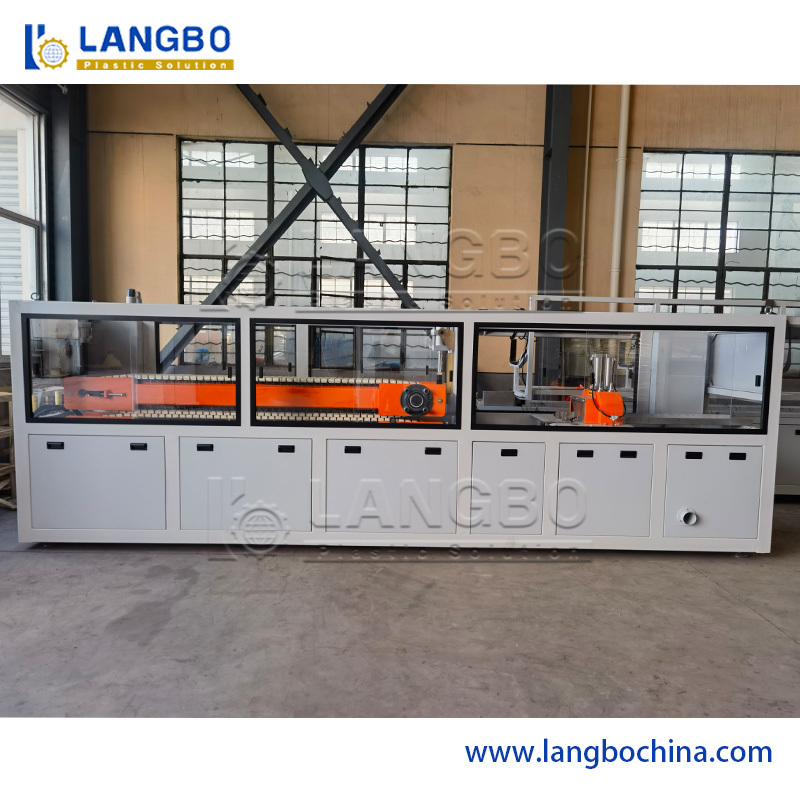

  • Caterpillar Haul-off: The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.

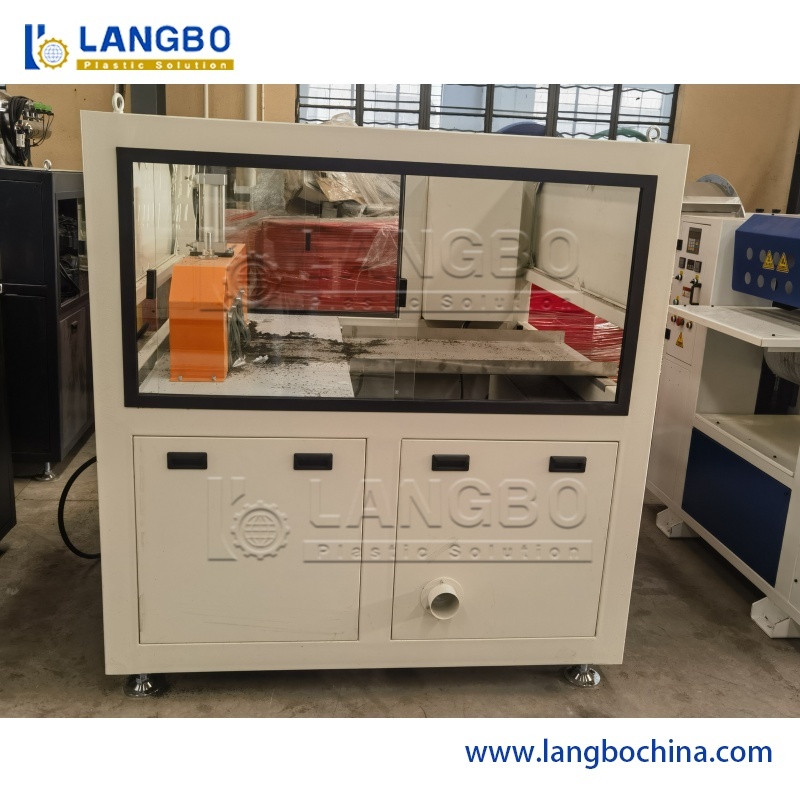

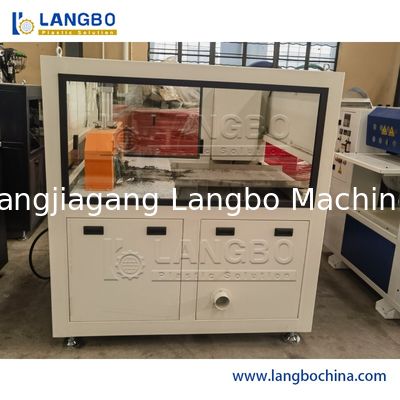

  • Saw cutter: In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length. During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.

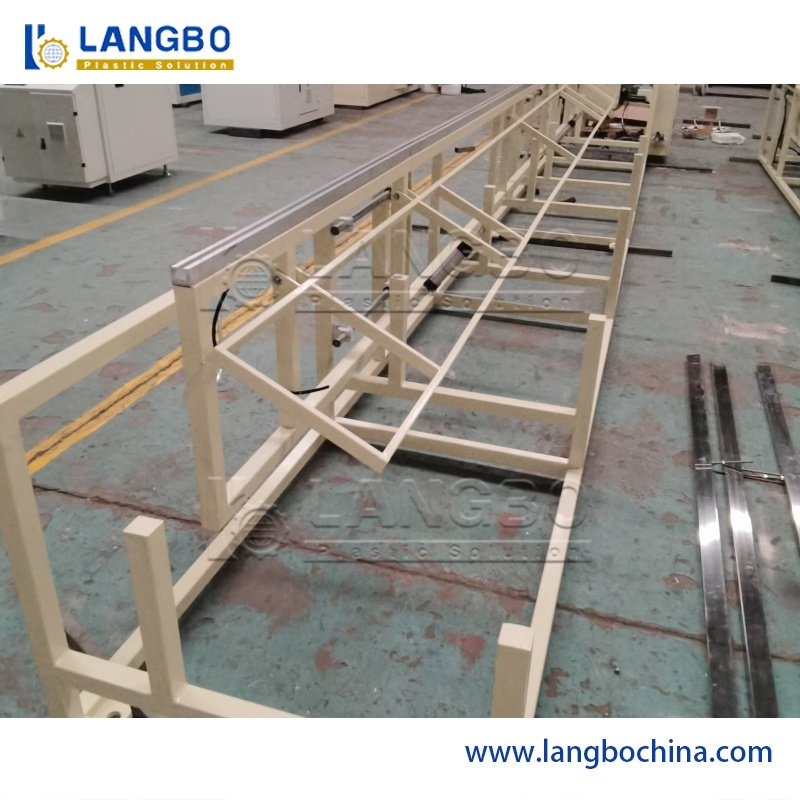

  • Tip-off unit: It operates on pneumatic cylinder.
  • Our extruder lines allow our clients to produce a wide range of PVC and WPC profiles with the following specifications:

300mm PVC Profile Extrusion Line With Conical Double Screw Extruder 1

 PVC Ceiling Panel Extrusion Line Parameter:

Model LB-200 LB-300 LB-600
Max. Width 220mm 350mm 600mm
Extruder Model SJSZ-51/105 SJSZ-55/110 SJSZ-65/132
Motor Power 18.5kw 22KW 37KW
Max. Output 120kg/h 150kg/h 250kg/h
Compressed Air 0.2m3/h 0.3m3/h 0.5m3/h
instalaltion power 45KW 55KW 67KW


PVC profile extrusion line technical parameters:


Extruder Model SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Mian motor power 22kw 37kw 55kw 110kw
Auxiliary machine YF200 YF240 YF300 YF600 YF900 YF1200
Production width 200 240 300 600 900 1200
vacuum power 4kwX1 5.5kwX1 5.5kwX1 5.5kwX2 5.5kwX1 7.5kwX1 5.5kwX1 7.5kwX1
water pump 2.2kw 2.2kw 4kw 5.5kw 7.5kw 7.5kw
hauling speed 0-5m/min 0-5m/min 0-5m/min 0-3m/min 0-2.5m/min 0-2.5m/min
capacity 150kg/h 250kg/h 250kg/h 350kg/h 600kg/h 600kg/h
