Product Details:
|
| Condition: | New | Inverter: | ABB |
|---|---|---|---|
| Screw Design:: | Double-screw | Voltage: | 380V |
| Type: | PVC Foam Board Making Machine | Screw Diameter(mm): | 45/90 |
| Highlight: | pvc foam board production line,pvc foam board making machine |
||

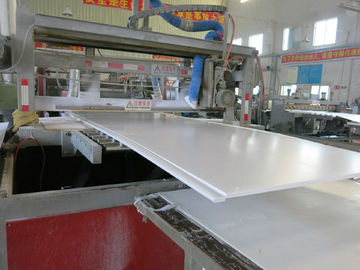

PVC free foam sheet production line/foam board extrusion line / PVC foam decoration sheet production line
Products characteristics
1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc.
2) Color-way is not changed long time and not easy to aging under radiation resistance
3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig.It is the same as wood manufacture processing, even better than wood. It is the best substitute to wood, aluminum and composite product.
4) It can be welded as per general welding stipulation and also stick to other PVC materials;
5) Smooth surface and easy to print.

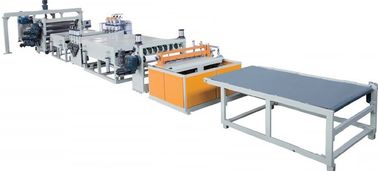

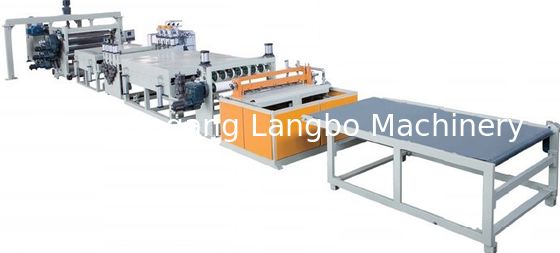

The production line description
High efficiency conical twin screw extruder.
The thickness is from 3mm to 45mm, width is from 1220mm to 2050mm.
Main Technical Paraments
| model | SJSZ45 | SJSZ51 | SJSZ65 | SJSZ80 | SJSZ92 |
| screw diameter(mm) | 45/90 | 51/105 | 65/132 | 80/156 | 92/188 |
| rotational speed of screw(r/min) | 1-45 | 1-45.5 | 1-38 | 1-36.9 | 1-34.7 |
| effective work length of screw(mm) | 1070 | 1100 | 1440 | 1800 | 2500 |
| main power (kw) | 15 | 22 | 37 | 55 | 110 |
| cylinder heating power(kw) | 9.6 | 11.5 | 24 | 36 | 88 |
| capacity(kg/h) | 70 | 80 | 250 | 360 | 1000 |
| center height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Net weight(kg) | 2800 | 3000 | 4000 | 5000 | 5500 |
Presales service:
>introducing in detail features and application of the products to customer
>Selecting economical and practical machine & equipment for customer
>Providing operation data of the related machine & equipment
>Providing means of trial performance for customer
Sales service:
>Recommending engineering conditions required for installation of the machine & equipment
>Communicating in time the manufacturing progress of the machine with user
>Providing assistance in technical conditions, screw combination and barrel disposition needed for product
After-sales service:
>Providing on-the-spot technical assistance in installation, commission and training
>Filling in detail customer’s information
>Providing long-term maintenance service and spare parts
>Giving technical support to customer for developing new product
>Providing free maintenance for a year
