PP / PE WPC Making Machine , Decking Fence Profile WPC Extrusion Machine
Product Details
| Condition: | New | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Dimension(L*W*H): | 12m*1.5m*2.4m | RAW MATERIAL: | WPC |
| Screw Design: | Double-screw | Voltage: | 380V 50HZ |
| Highlight |
wpc profile machine,plastic profile extrusion machine |
||
Product Description

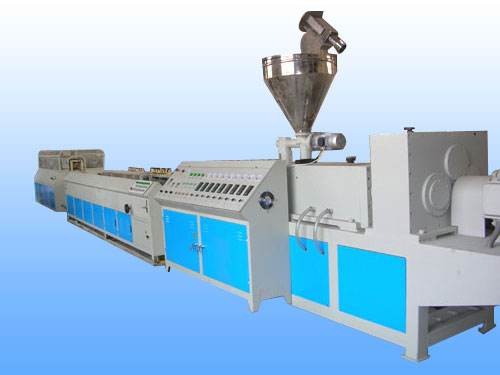

PP / PE WPC plastic compound profile extrusion production line/making machines
WPC decking fence profile extrusion machine can produce all kinds of profile, for example, window, door and door frame, pallet, cladding of outdoor wall, facility of outside park, floor etc. Output profile is Wood Plastic Composite(WPC) or Plastic UPVC.
As a new material to replace wood, wood plastic composite is widely used in fields of building decoration and outdoor building materials, such as edge and corner lines, fence of flowers nursery, skirting board, ceiling line, blind window, stair railing, decorative wall board, outdoor pavilion and so on. Most interior and exterior decorative building materials can be made by using wood plastic composite.
At present, wood plastic composite has already drawn extensive attention in the world and is praised as new material which will have board developing prospect.
Working flow of WPC decking fence profile extrusion machine
Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter→ Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
Main technical parameter of WPC decking fence profile extrusion machine
| Max. width of products (mm) | 180 | 240 | 300 | 400 | 500 | 600 | 800 | 1000 | 1250 |
| Main extruder | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ80/156 | SJZ92/188 | SJZ92/188 |
| Capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 | 360 | 600 | 600 |
| Main motor power (kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 | 55 | 110 | 132 |
Main Features of wpc machine to make plastic pellets:
1) Novel material class , developed for optimising properties of classical products , e.g. Improvement of mechanical material properties .
2) Enhancement of possibilities for classical wood products by using extrusion process .
3) Reduction of plastics part at the finished cuticle to protect exhaustible raw materials
4) Advantages through continuous production process improvement of flow properties of themoplastic materials.
5) Use of renewable resources
6) Formulation with PE, Polyolefins or pther thermoplastics.
