Professional WPC Profile Extrusion Line High Performance Low Noise
Product Details
| Condition: | New | Model Number: | SJSZ-65/132 |
|---|---|---|---|
| Dimension(L*W*H): | 20*2.5*2.5m | RAW MATERIAL: | WPC |
| Screw Design: | Double-screw | Width: | 200,240,300,400mm |
| Highlight |
wpc board production line,wpc profile machine |
||
Product Description
PP / PE /PVC Wood plastic WPC profile production line / PVC extrusion machine
Introduction:

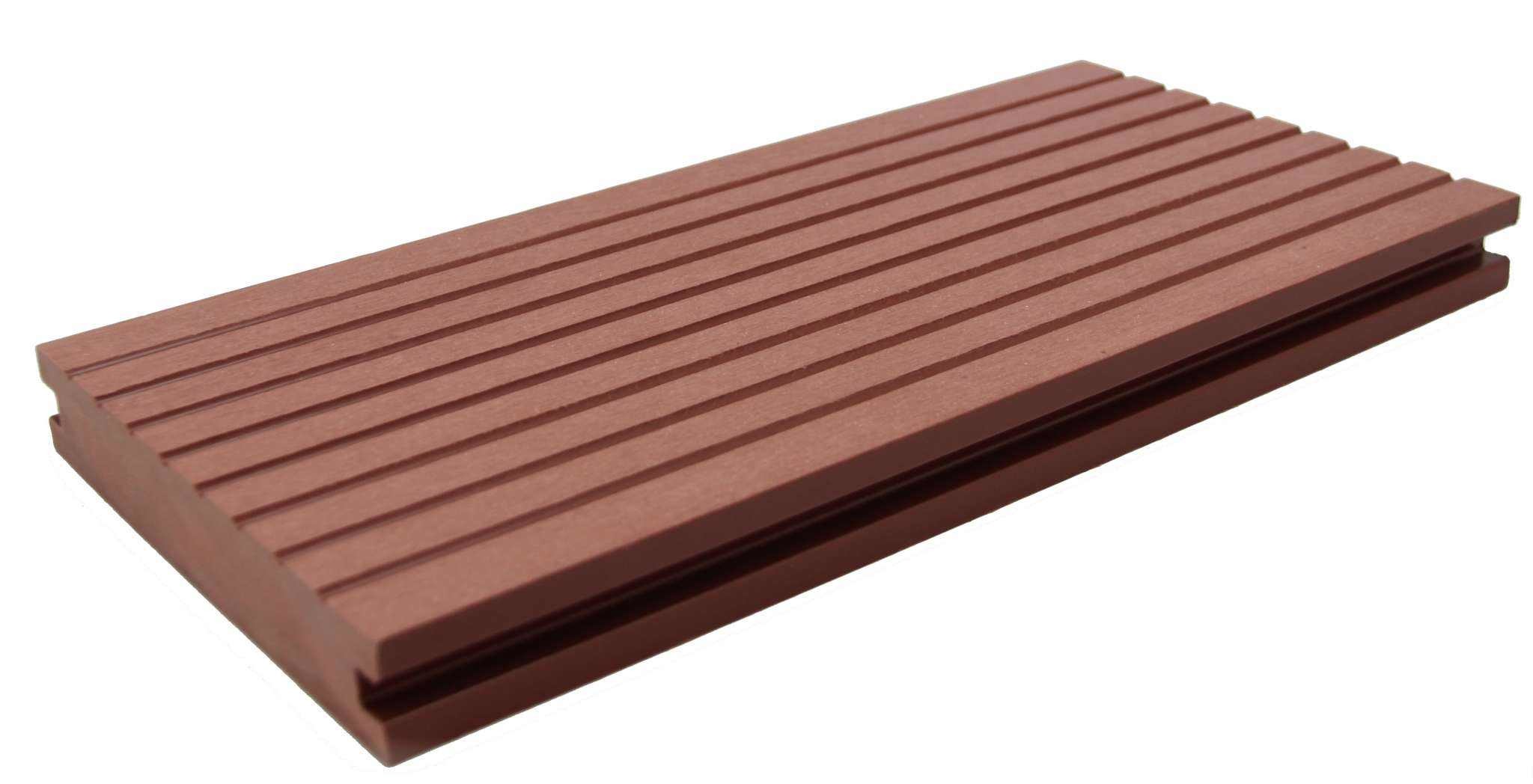

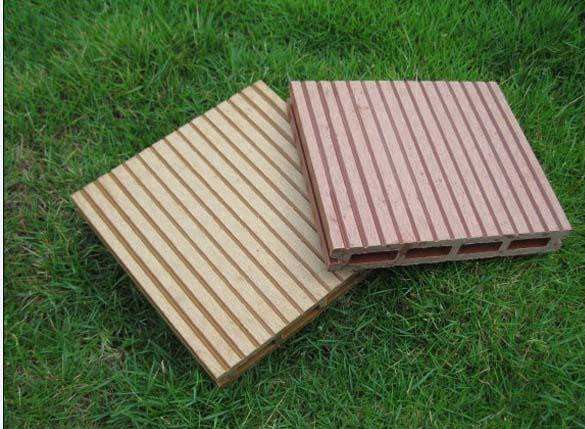

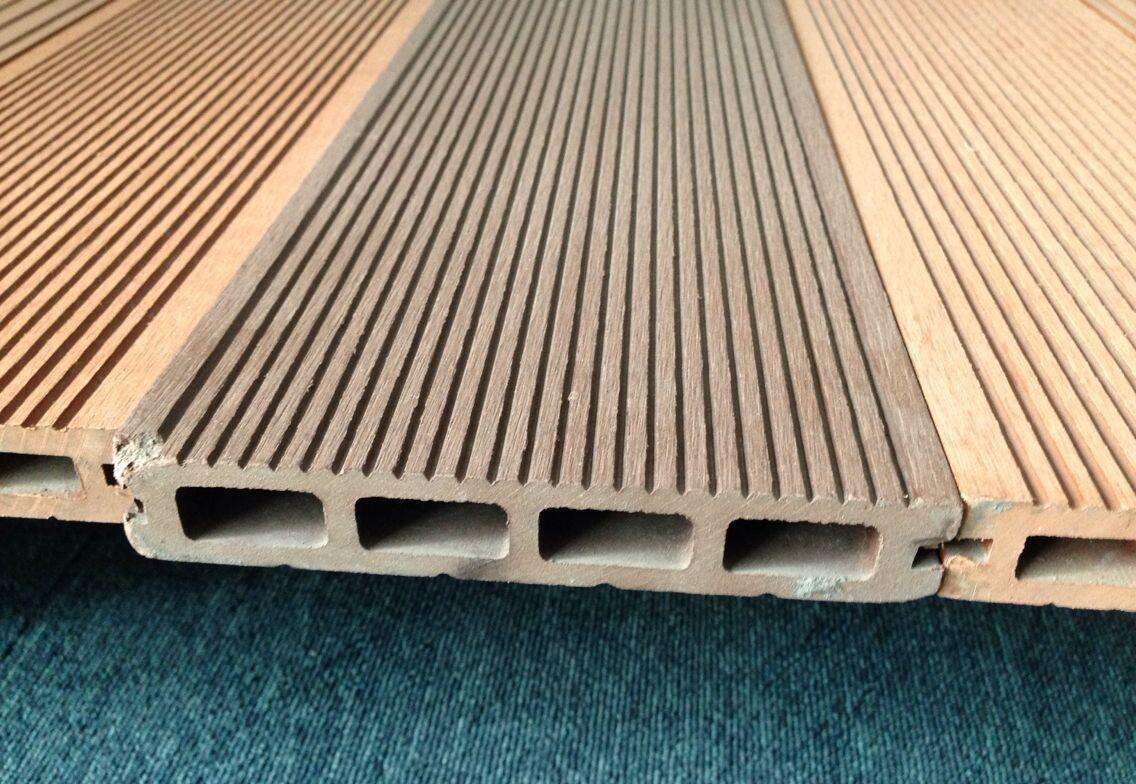

This unit is professional line to produce WPC (PP/PE) profile product, including chairs,floors and trash can series profile product, PVC foaming profiles and decorative plates for making door.
The line compounds domestic and abroad technology, having characters of high automatic level, steady performance, large output and high efficiency.
Flow chart :
Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support →haul-off → cutter → rack → finished product
Machine Line List :

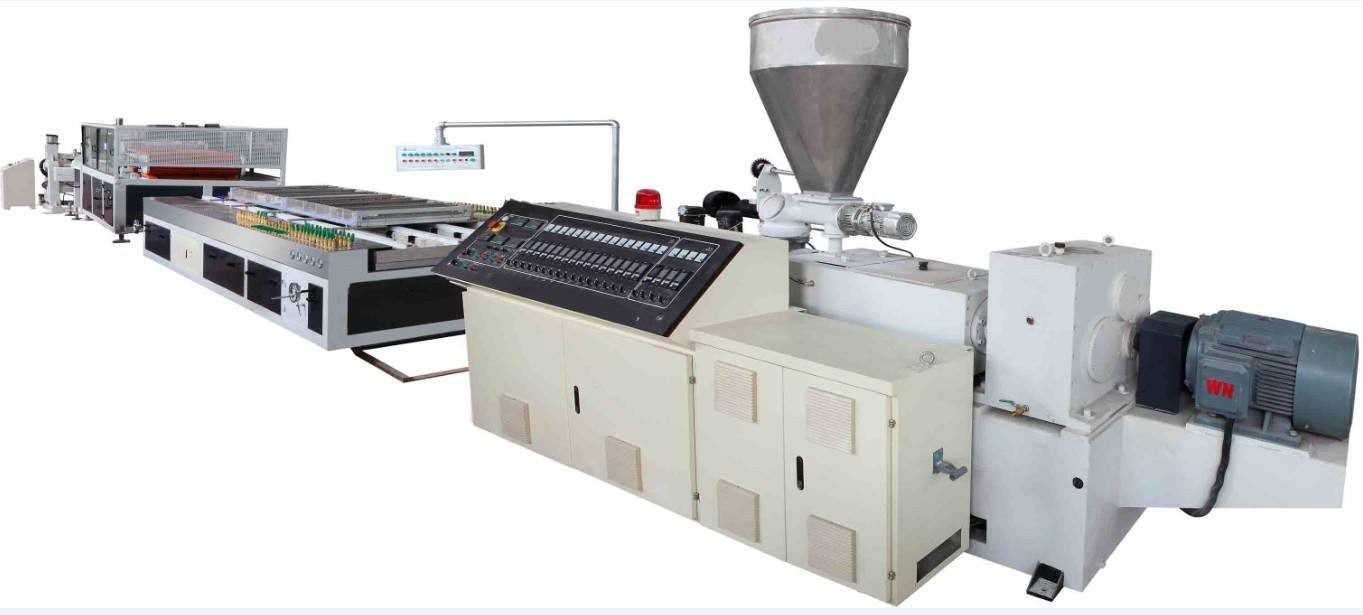

1> Conical Double screw extruder: SJSZ-65/132
2> WPC PP/PE/PVC windows,doors,fencing, decking,skirting,floor profile mold
3> Vacuum calibrating system
4>Haul off machine
5> Cutting machine
6> Discharge bracket
7> Mixer
8> WPC pelletizing/granulate extrusion line ( For PP/PE material)
9> Sander
10> Embossing machine
11> Brushing machine
12> Coating device
Main technical parameter :
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | ||
| Mian motor power | 22kw | 37kw | 55kw | 110kw | ||
| Product width |
200
|
240 | 300 | 600 | 900 | 1200 |
| vacuum power | 4kwX1 | 5.5kwX1 | 5.5kwX1 | 5.5kwX2 | 5.5kwX1 7.5kwX1 | 5.5kwX1 7.5kwX1 |
| water pump | 2.2kw | 2.2kw | 4kw | 5.5kw | 7.5kw | 7.5kw |
| hauling speed | 0-5m/min | 0-5m/min | 0-5m/min | 0-3m/min | 0-2.5m/min | 0-2.5m/min |
| capacity | 70kg/h | 110kg/h | 110kg/h | 170kg/h | 300kg/h | 300kg/h |
| model | YF200 | YF240 | YF300 | YF400 |
| profile width(mm) | 200 | 240 | 300 | 400 |
| hauling height(mm) | 150 | 150 | 150 | 150 |
| total power of auxiliary (kw) | 18 | 27 | 33 | 30 |
| compressure air(Mpa) | 0.6 | 0.6 | 0.6 |
0.6 |
If raw material is PE or PP , you need mix wood powder + PP/PE particles together ,and then put them into pelletizing line , finally get final wood plastic pellets .
