Automatic WPC Profile Extrusion Line 120 - 150Kg/H Output Capacity
Product Details
| Condition: | New | Model Number: | SJSZ-65/132 |
|---|---|---|---|
| Dimension(L*W*H): | 22*1.5*2.6 (m) | RAW MATERIAL: | WPC |
| Screw Design: | Double-screw | Output: | 120-150Kg/h |
| Highlight |
wpc board production line,plastic profile extrusion machine |
||
Product Description
WPC making machine / WPC profile production line / wood plastic extrusion equipment
Produce Application:
The manufacturing plant adopts special designed barrel and screw, mould and working crafts to produce wood plastic composite products, simplified as WPC products. The extruder is of two steps mixing extruding or make the wood and plastic into pellets first, then use extruder to process; power and space saving, high capacity, stable extruding presser; the pre-heating loader is installed on top of the extruder, it can exhaust the moist remains in the wood power to make sure the extruding section of extruder is full, and guarantee a better plasticization result. The optimal designed screw is extruder

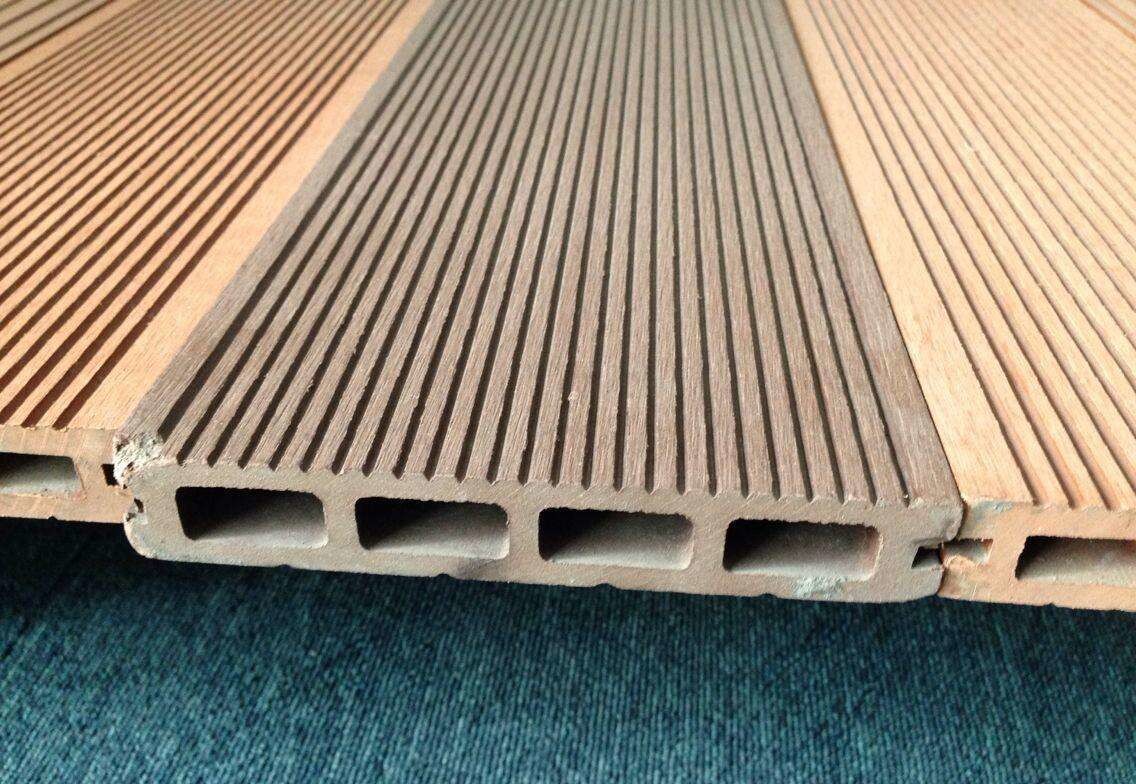

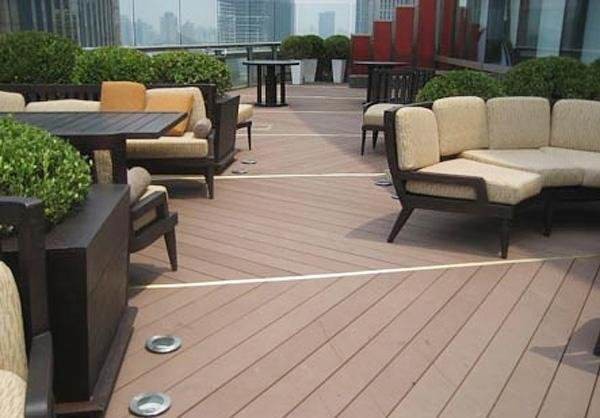

With special designed screw ,barrel, mould and production process ,equipped with series downstream equipment ,this can produce PE /PP/ PVC and wood-plastic composite profiles.This is a new kind of environmental freindly building material. WPC profiles is produced by mixing the plastic ,wood powder ,foam agent and other additives, after high temperature and high pressure ,the products can be used for pallets ,packing plates ,windows and door frames ,decoration panels etc.
The main parameters:
|
Item |
SJSZ-55/110 |
SJSZ 65/132 |
SJSZ 80/156 |
SJSZ 92/188 |
|
Screw Diameters(mm) |
55mm/110mm |
65mm/132mm |
80mm/156mm |
92mm/188mm |
|
L/D Ratio |
22:1 |
22:1/25:1 |
22:1/25:1 |
22:1/25:1 |
|
Output(Kg/h) |
80-120mm |
160-200 |
250-350 |
400-500 |
|
Main Driving Power(kw) |
22 |
37 |
55 |
110 |
|
Heating Powder(Kw) |
4 zones,20Kw |
4 zones, 24Kw |
5 zones, 38Kw |
6 zones, 54Kw |

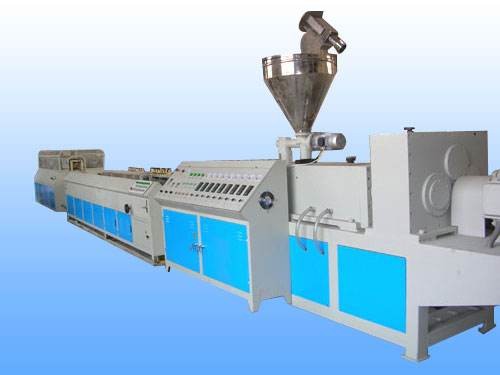

Equipment list:
1. SJSZ-65/132 conical twin screw extruder
2. Calibration table
3. Auto cutting machine
4. Tilting stander
5.Electronic control
6. Spare parts
