Plastic PVC / WPC Door Production Line 65mm / 132mm Screw Diameter

Plastic PP PE PVC wood plastic profile extrusion line/ WPC door line production line/ WPC skirtings machine

Description:

PVC plastic profile machine mainly use PVC, UPVC as raw materials, production of various kinds of plastic doors and Windows profiles (plastic profiles, decorative profiles electric cable trunk,window profile,ceiling board), etc.

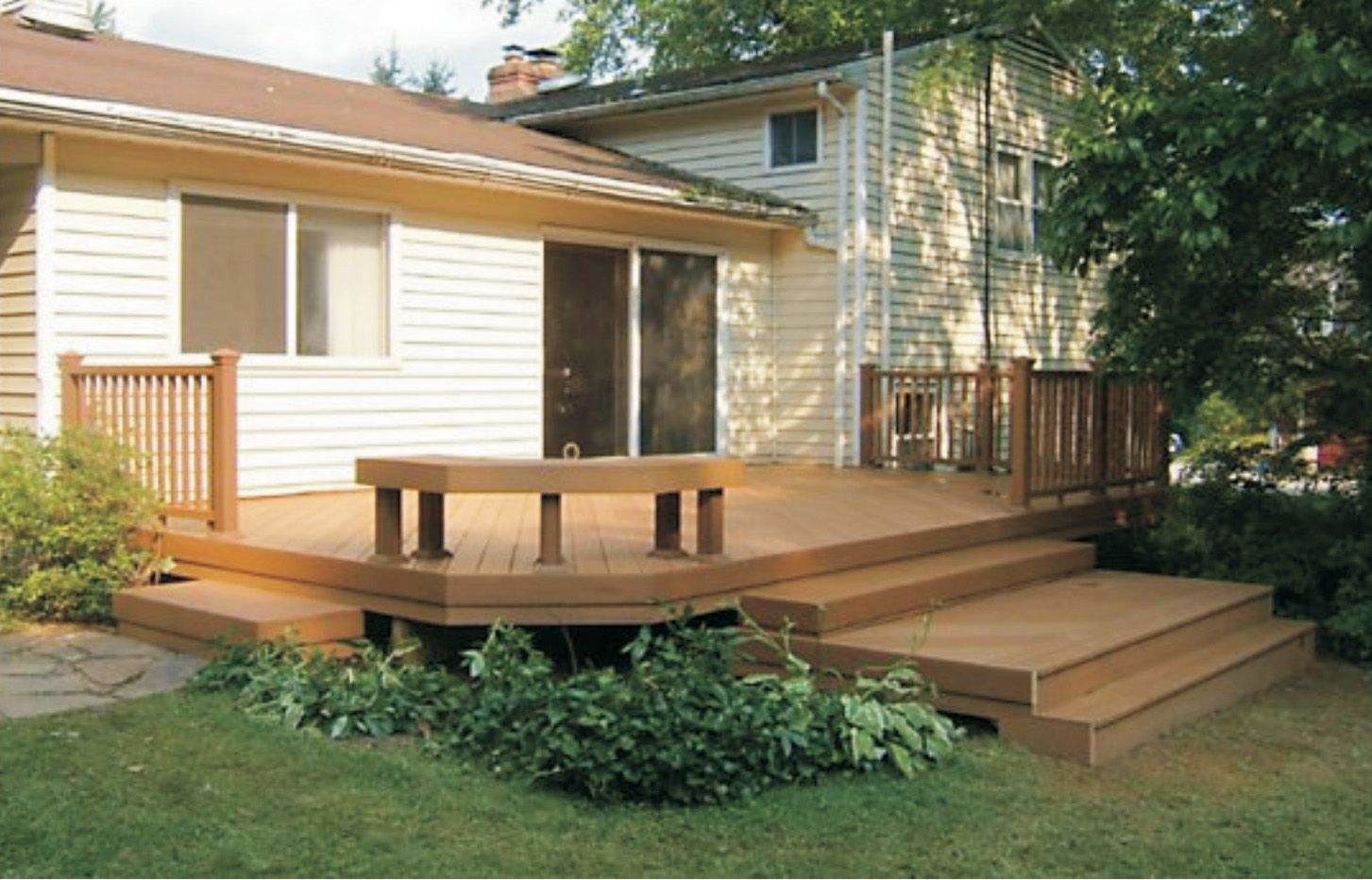

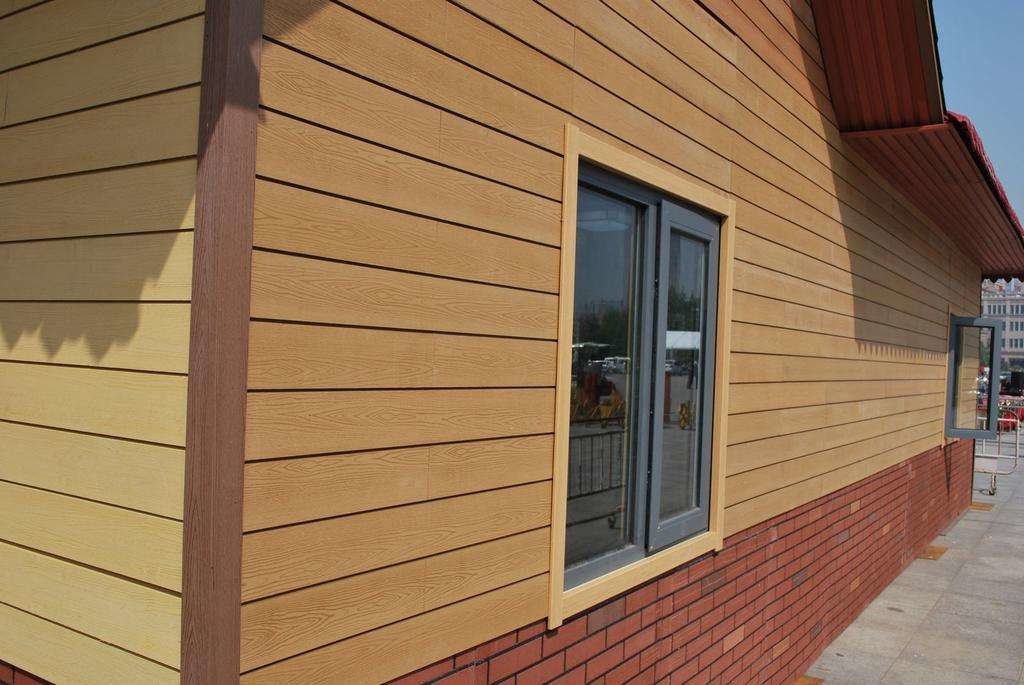

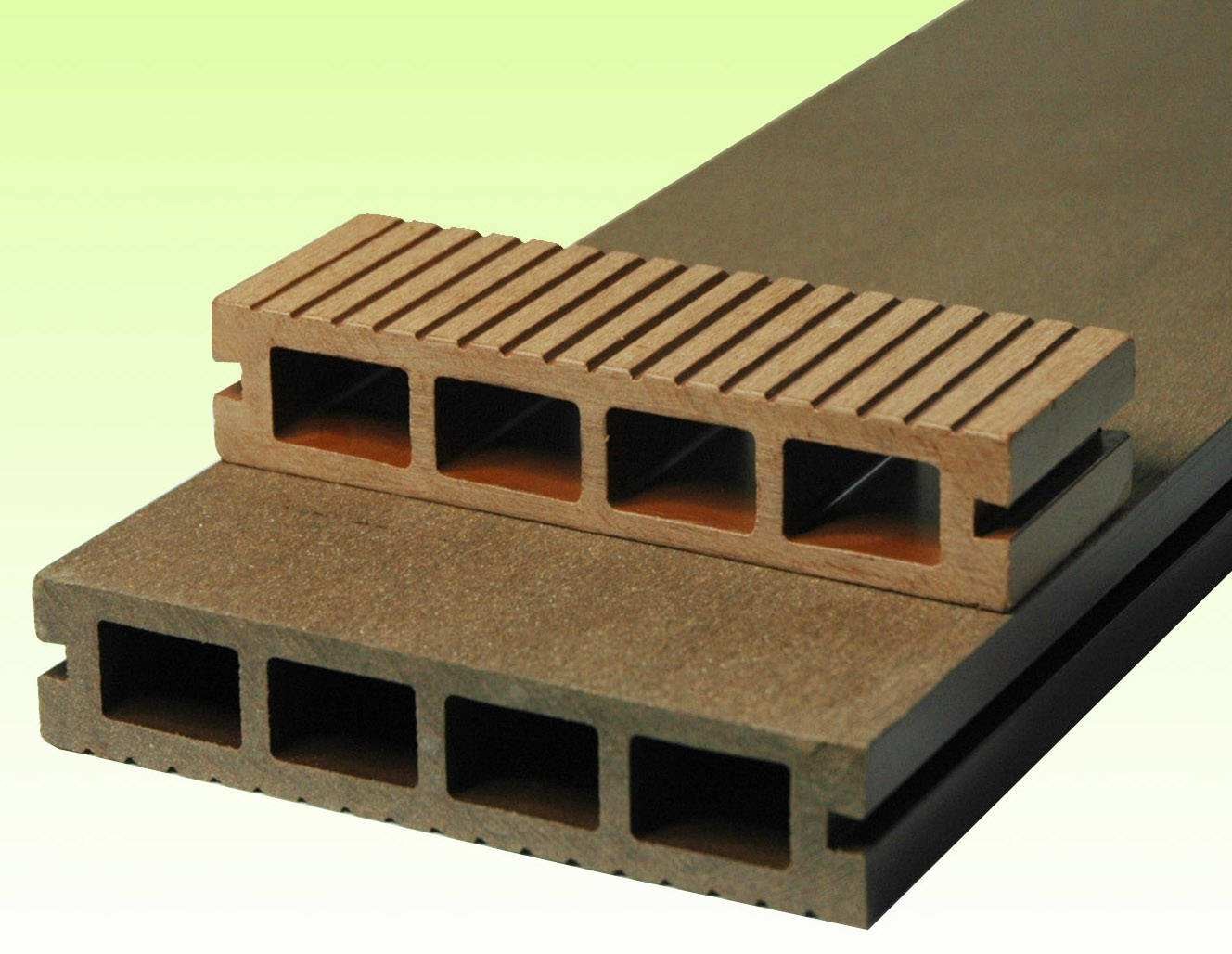

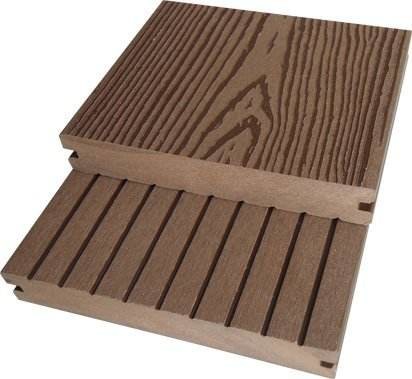

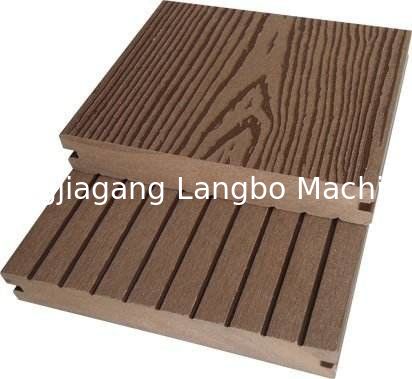

In addition,the machine can produce PE, PP or PVC woodplastic profile products (the raw material is:Wood flour and add the amount of plant fiber high (up to 50-75%),mainly is used for trays, box board, flooring, outdoor decorative materials, use very extensive.

Parameter:

SYSTEM CONFIGURATION OF THE PRODUCTION LINE:
1 set of Spring feeder1 set of Double-Screw Extruder
Extrusion Die for profiles as picture show above
1 set of Vacuum calibration table
1 set of Haul-off Machine
1 set of cutting machine
1 set of stacker

A. SJZ65/132 Conical Twin Screw Extruder
Screws are specially used for wood and plastic,Screw diameter 65/132mm
Main motor power: 37Kw
L/D ratio: 22
Revolving direction:Outwards
Screw rotate speed:34.7rpm
Max torque of Single screw:5000NM
Total max torque of screws:10000NM
Barrel heating/cooling section:4/3
Barrel heating power:24KW
Barrel cooling method and power:air cooling 250w×3
Material of barrel screw:38CrMoAlA

Heat process:nitriding rigidity≥700HV,depth for nitriding stem 0.5—0.7mm,brittleness not over 2 grade
Barrel screw interactive method:Part welding interactive alloy
Axial force of each working screw:116KN
Extrude output:100-150kg/h(wood and plastic)

Overall size:3150×820×2200mm
Weight:4000kg

B. Vacuum calibration Tank
Water pump (2pcs) 2.2kw
Total length: 5M
Longitudinal shift distance 1000mm
Longitudinal shift motor power 0.75kw
Horizontal shift distance ±30mm
Height is adjusted by hand
Overall size: 5000×1000×1000mm

C. Cutter
Cutting mode: Electric control
Motor power: 2.2Kw
Saw diameter: 350mm
Max air consumption of pipe clamp cylinder:0.3L/T
Max air consumption of blade move cylinder:7.8L/T
Cylinder pressure: 0.5~0.7Mpa
Control system: Process control
Central height: 1000±50mm

D. Stacker
Available receiving material length: 4m
Pneumatic turning fix cutting
