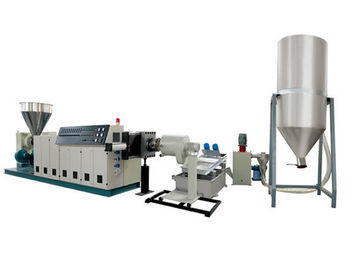

PVC / ABS Plastic Pelletizing Machine 200 - 1000kg/H Capacity New Condition
Product Details
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Capacity: | 200-1000kg/h | Plastic Processed: | TPU, EVA, TPEE, PP, PE, PVC, ABS |
| Screw Design: | Double-screw | Model Number: | LB |
| Highlight |
plastic pellets making machine,waste plastic recycling pelletizing machine |
||
Product Description
PE,PP , PS ,PET, PVC,EVA, ABS plastic pellet granule cutter machiner
1. Processing materials and usage: TPU, EVA, TPEE, PP, PE, PVC, ABS and all other plastic materials not-sticky in water.
2. Advantages :
1) No bypass waterway;
2) Overall non-welding template;
3) Templates exposed ,start/clean easily;
4) Unique heat insulation technology,no blockage under low pressure production ;
5) Can produce fast crystallization plastic materials (such as PP / PET, etc.);
6) Pneumatic start valve , simple, reliable without pollution;
7) Automatic center blade adjustment system ;
8) One-button operation, granulation system is simple and reliable.
9) Output: 100 kg / h ~ 2000kg / h (vary depending on the formulation process and products , it can fit 50 to 65 twin-screw extruder, kneader, reactor)
Plastic film pelletizing machine with squeezing fuction
1. film pelletizing machine
2. film squeezing machine
3. film recycling machine
4. film extruder machine
Product Description:
1. Plastic Film Pelletizing Machine is used for drying washed film flakes and make it into granules.After film squeezing machine the granules can put into extruder directly.
2. Plastic Film Pelletizing Machine save 3 machines . One dewatering machine,one drying system,and one agglomerator.It almost saved 200kw for one line.
| Model | BDX500 | BDX1000 |
| DIMENSION | 2450X800X1800MM | 2450X800X1800MM |
| INLET SIZE | 700X670MM | 700X670MM |
| MOTOR POWER | 18.5KW | 22KW |
| ROTATED SPEED | 42R/MIN | 42R/MIN |
| CAPACITY | 500-700KG/H | 800-1000KG/H |
| DRAINAGE METHOD | DRAIN AT THE BOTTOM | |
| MATERIAL OUTLET | FREE FALLING | |
| HYDRAULIC STATION MOTOR | 1.5-2.2KW | |
Product Highlights
PE,PP , PS ,PET, PVC,EVA, ABS plastic pellet granule cutter machiner 1. Processing materials and usage: TPU, EVA, TPEE, PP, PE, PVC, ABS and all other plastic materials not-sticky in water. 2. Advantages : 1) No bypass waterway; 2) Overall non-welding template; 3) Templates exposed ,start/clean ...
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications. Applications The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply
50-250MM HDPE Pipe Making Machine Single-Screw Full-Automatic PE Pipe Extrusion Line
50-250MM HDPE Pipe Making Machine Extrusion Production Line Product Overview The HDPE pipes with large diameter are typically applied for fuel gas and water supply systems. These pipes feature excellent characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and good creep resistance. They serve as preferred conduits for ductwork systems and water supply networks between cities and suburbs. PE Pipe
Gas Water PE Pipe Extrusion Line Single Outlet 4 - 9m / Min Capacity
PE Pipe Extrusion Line HDPE gas water pipe machine, PE gas pipe extrusion line Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. plastic machine Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. PE PIPE PROCUTION LINE MAIN COMPONENTS: No Equipment Quantity 1 Vacuum loader and hopper dryer 1set 2 Single screw extruder 1set 3 Die-head 1set 4 color line
Decoration PVC Foam Board Extrusion Line 45 / 90mm Double Screw Diameter
PVC free foam sheet production line/foam board extrusion line / PVC foam decoration sheet production line Products characteristics 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc. 2) Color-way is not changed long time and not easy to aging under radiation resistance 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig.It is
