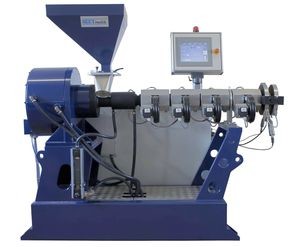

High Speed Screw Extruder Machine , Automatic Extruder Plastic Machine
Product Details
| Power(W): | 380V/3P/50HZ | Model Number: | SJ |
|---|---|---|---|
| Name: | Single Screw Extruder | Inverter: | ABB |
| Screw Design: | Single-screw Extruding Machine | Automatic Grade: | Automatic |
| Highlight |
single screw extruder machine,extruder plastic machine |
||
Product Description
Automatic High Speed Single Screw Plastic Extruder for PP/PS/PE
Brief Introduction:
Our plastic extruding machine is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization,stableworking, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.
Application:
1. Adopt the single screw extruder, and mainly used in extruding PVC, PE, PP, ABS and so on;
2. The extruder using the special designed single screw making the product foaming well;
3. Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940;
4. Barrel temperature control though two section, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone;
5. The reduction box adopt the Germany technical which have long life span, low noise and lower hot.
Features and application
SJ series single screw extruder is mainly used in extruding soft and hard thermoplastics, such as polyviyl chloride (PVC),polyethylene and others.
SJ series single screw extruder is used with relevant auxiliary machine (including shaping machine head) to produce several kinds of plastic products, for example: film, pipe, rod, plate, thread, cable insulating layer, hollow product. It is also used for prilling.
SJ series single screw extruder has advantages, such as advanced design, high output, good plasticification, Iow energy consumption, involute gear transmission, Iow noise, steady operation, large loading, long life and so on.
Main Technical Parameter
|
Name
|
L/D | Speed of Screw Rotation(Rap) | Power (Kw) |
|
SJ25/25
|
25:1 | 100 | 1.5 |
| SJ30/25 | 25:1 | 125 | 5.5 |
| SJ45/25 | 25:1 | 100 | 7.5 |
| SJ45/30 | 30:1 | 120 | 11 |
| SJ65/25 | 25:1 | 80 | 22 |
| SJ65/30 | 25:1 | 90 | 30 |
| SJ90/25 | 25:1 | 70 | 55 |
| SJ90/30 | 30:1 | 80 | 75 |
| SJ120/25 | 25:1 | 50 | 90 |
| SJ120/30 | 30:1 | 60 | 110 |
| SJ150/25 | 25:1 | 40 | 110 |
| SJ150/30 | 30:1 | 50 | 132 |
| SJ200/25 | 25:1 | 30 | 160 |
| SJ200/30 | 30:1 | 40 | 200 |
