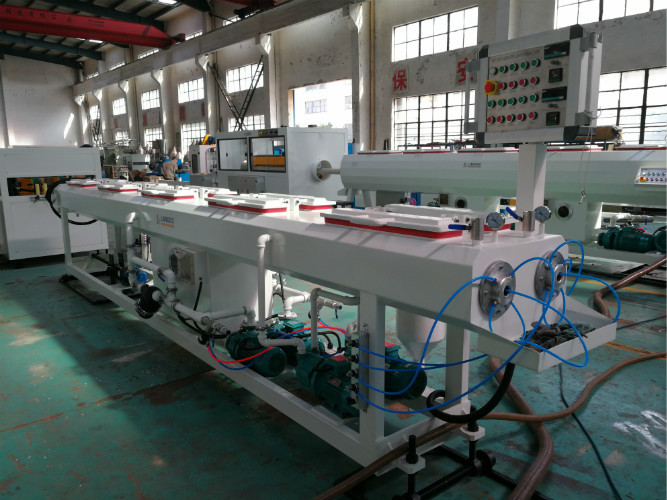

Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter

Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter
Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter

Large Image :  Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-50W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter

Description
PIPE DIAMETER: 16-50MM APPLICATION: WATER PIPE
EXTRUDER MODEL: SJSZ63/132 MOTOR POWER: 37KW
CAPACITY: 250KG/HR PIPE COLOUR: Customized
Automatic Grade: Automatic Screw Design: Double-screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support Warranty: 1 Year
Inverter: ABB Color: Customizable
Raw Material: PVC Powder Motor: SIEMENS Brand
Contactor: SIEMENS
High Light:

plastic tube making machine

,

pvc pipe production line

Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 63mm Pipe Diameter

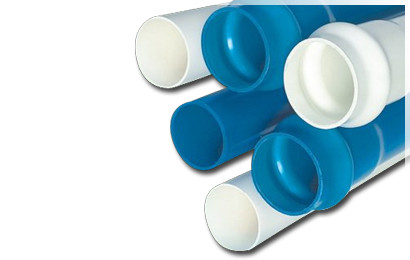

Application of pvc pipe:

pvc pipe mainly use in agricultural and construction water supply-drainage.cpvc pipe due to its special character, widely use in base oil transportation,temperature and corrosion resistance pipe of chemical,hot water supply-drainage pipe and protection pipe of high voltage electricity and electrical cables.



Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter 0

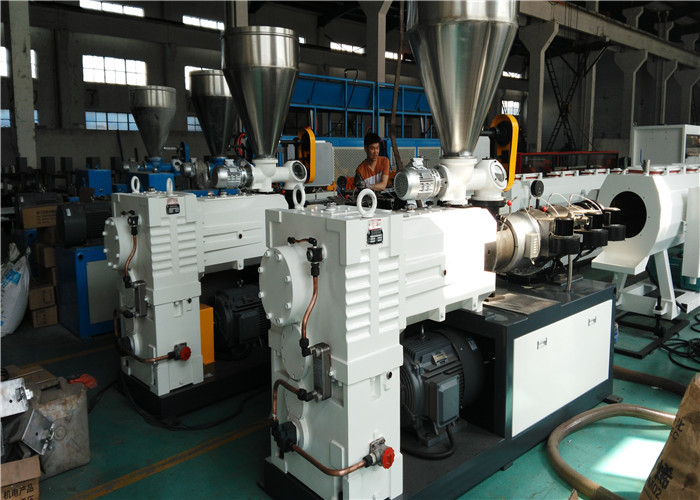

Main Components of Extrusion line:



Conical twin-screw extruder is professional equipment to extrude PVC/ composite mixture of PVC and wood/composite pellets of PP/PE and wood. Equipped with different die head, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc.. It consists of following items:

  • Driving motor: equipped with famous brand motor as driving source
  • Gearbox: equipped with famous brand gearbox to ensure the maximum output of power
  • Screw & barrel: it is made of bi-metallic. The screw core is equipped with device of temperature regulation of oil as medium and barrel is equipped with air blower as cooling device. The designing of screw and barrel will adapt the reasonable and optimal structure based on the characteristics of the formula of raw material ensure to get the plasticizing and melt stream for plastics.
  • Control system: equipped with famous brand electrical components ensure to get the accurate control.

Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter 1



SPECIFICATIONS:


MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC



Automatic PVC Plastic Pipe Extrusion Machine Double Tube Making 16 - 50mm Pipe Diameter 2



Product list:



SJ45 Extruder for example:







Model:SJ45 Ordinary pipe extruding line
Item Unit Parts Number Description
1 SJ45 Extruder screw & barrel 1 set Φ45 mm, L/D=25:1, 38CrMoAIA,
nitriding, screw: Cr plated
gear box 1 set gear hardening, polished, horizontal
machine frame 1 set Steel structure
main motor 1 set 11 kw frequency varying
control panel 1 set 5 zone temperature control, 4 air cooling
2 Vacuum Sizing Table   1 set length: 2.5 meters
surface material: stainless steel
3-dimension manual adjustable
vacuum pump: 2.2 kw
3 Drawing Unit   1 set 1.5 kw frequency varying
4 Cutting Unit   1 set 1.5 kw frequency varying
effective length: 3 m
automatic discharge rack
