Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity

Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity
Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity

Large Image :  Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity

Description
Condition: New Plastic Processed: PVC
Screw Design:: Double-screw Voltage: 380V 92/188 PVC Skinning Foam Board Extrusion Line
Type: Foaming Machin Name: PVC Foam Board Extrusion Line
High Light:

pvc foam board production line

,

pvc foam board machine

92/188 PVC skinning foam board making machine/ extrusion line

Specifications

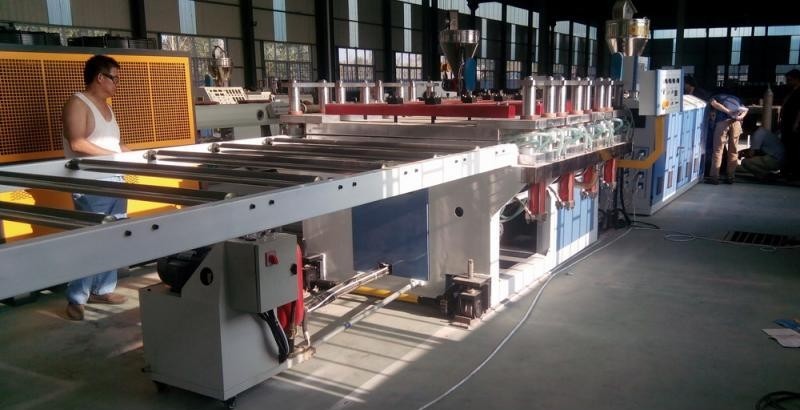

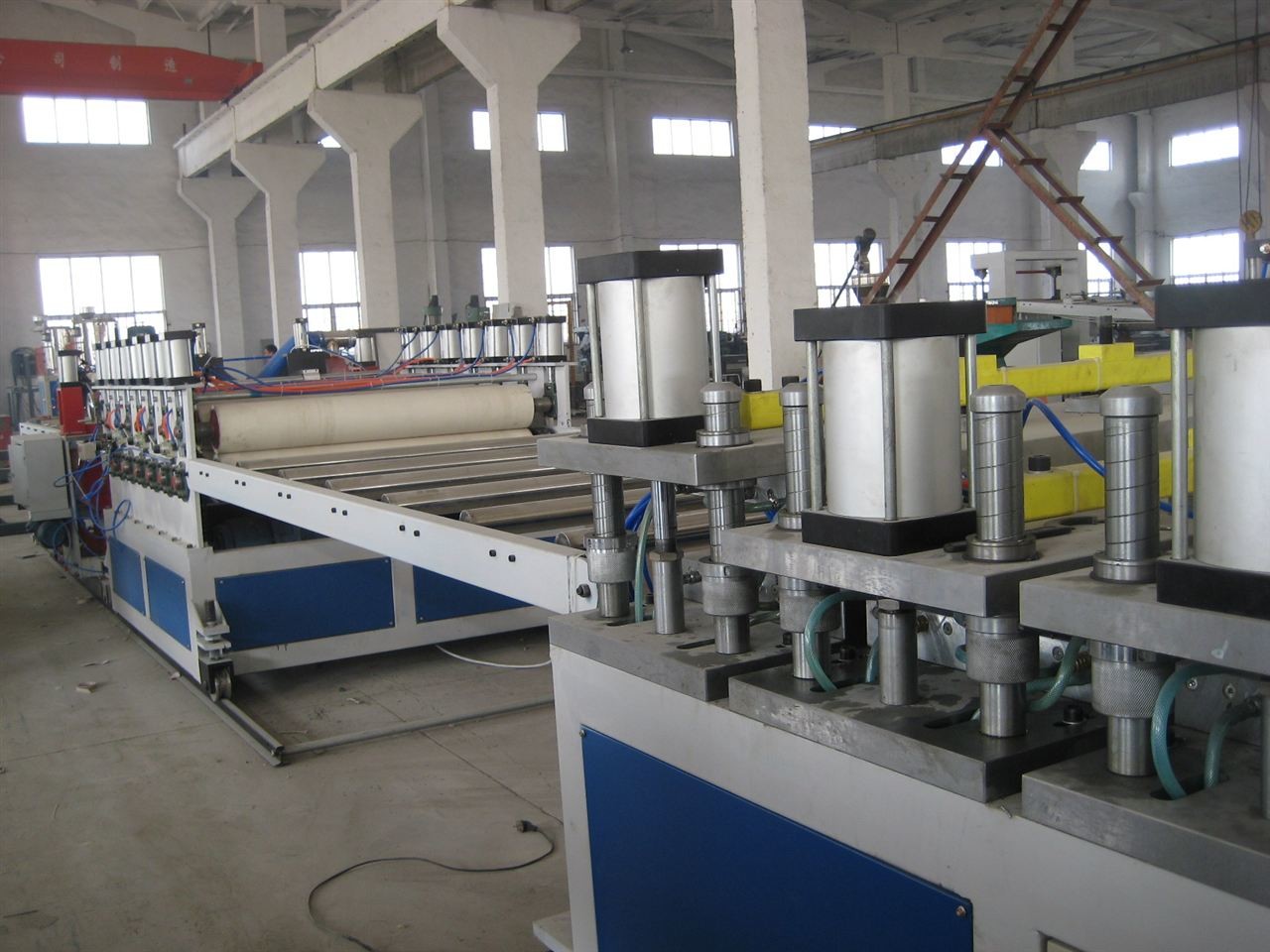

PVC skinning foam board extrusion line

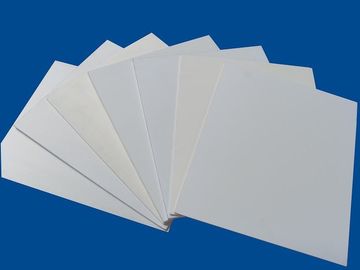

1. size of availabe foam board:1220mm/3-30mm/0.4-0.6g/cm3
2. capacity up to 600kg/h



92/188 PVC skinning foam board extrusion line is appliced to produce foam board with width 1220mm to 1830mm, thickness 3mm to 30mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture, consution template and so on.





The main machines needed for 92/188 PVC skinning foam board extrusion line :



-PVC mixer

-PVC foam board poduction line

(Including autoloader, conical twin screw extruder, mould, calibration table, hauling machine, auto cutter- stacker)

- lamination machine(for furniture foam board)

- hot stamp printer (for furniture foam board)

- waste rusher& PVC miller

- Air compressor

- Water chiller





Model of 92/188 PVC skinning foam board extrusion line :



Popular Model SJSZ80 SJSZ92
Extruder SJZ80/156 SJZ92/188
width 1220mm Max 1830mm
thickness 5-20mm(3-25mm) Max 30mm
Max capacity(kg/h) about 300 About 600kg/h





Double Screw PVC Foam Board Extrusion Line 600kg/H High Output Capacity 0
