Full Automatic PVC Pipe Extrusion Line , Pipe Production Machine 80KW 250KG

Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG
Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG

Large Image :  Full Automatic PVC Pipe Extrusion Line , Pipe Production Machine 80KW 250KG

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-63W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Full Automatic PVC Pipe Extrusion Line , Pipe Production Machine 80KW 250KG

Description
Product Name: PVC Pipe Extrusion Line Packaging Details: Film Wraping
Condition: New Application: Pipe Making
Raw Material: PVC Automatic Grade: Full Automatic
Motor: Siemens Inverter: ABB
Temperature Control: Omron Certificate: CE ISO
High Light:

plastic tube making machine

,

pvc pipe production line



Full Automatic PVC Pipe Extrusion Line Production Machine 80KW 250KG / H 18 * 2.5 * 3m



Product Description


pvc pipe conical twin screw extruder/plastic pipe extruder equipment/double screw extrusion machine


SJSZ series conical twin screw stem extruder is composed of barrel screw, gear transmission system,



measurable feeding, vacuum deareating, heating, cooling and electric control components ect.


it is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film , profiles, and



granules, ect.



Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG 0



Main equipment



Model PVC16-63MM

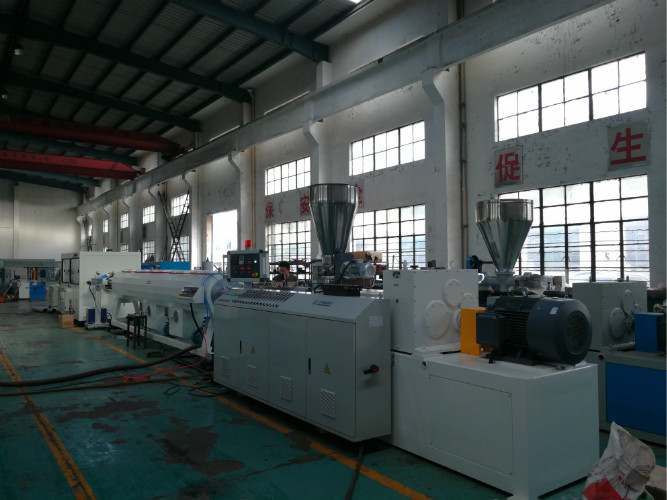

SJSZ65/132 Conical twin screw extruder 1set
16-63 PVC double pipe mould 1set

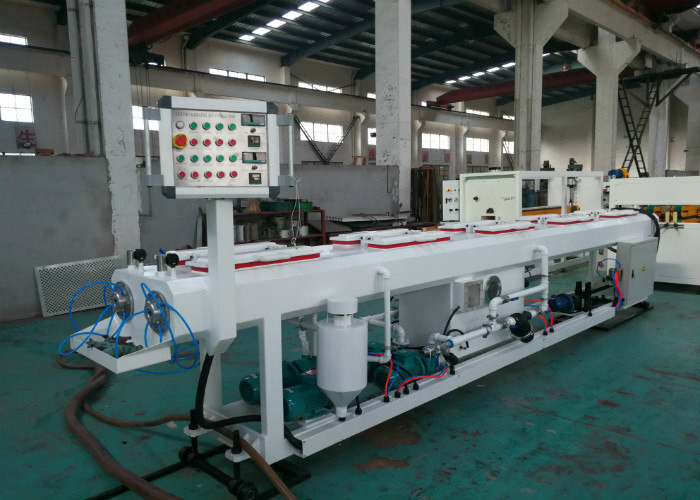

Vacuum calibration tank (double) 1set

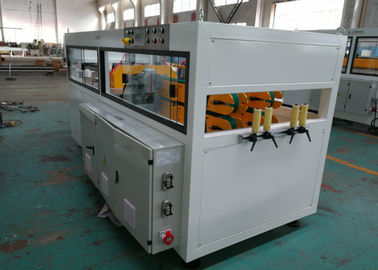

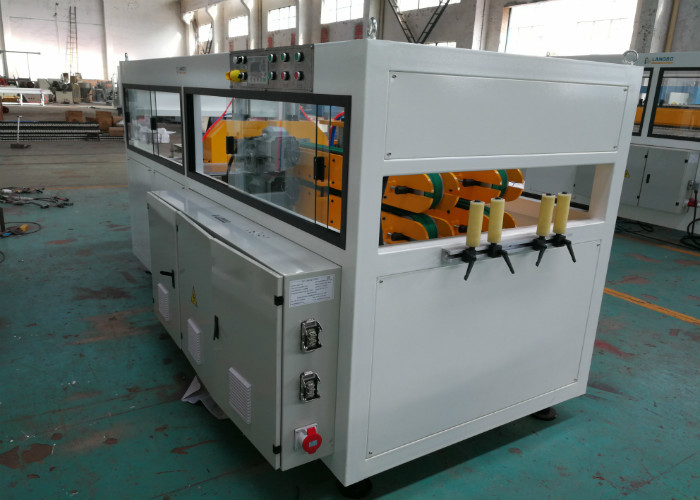

Haul-off machine (double) 1set

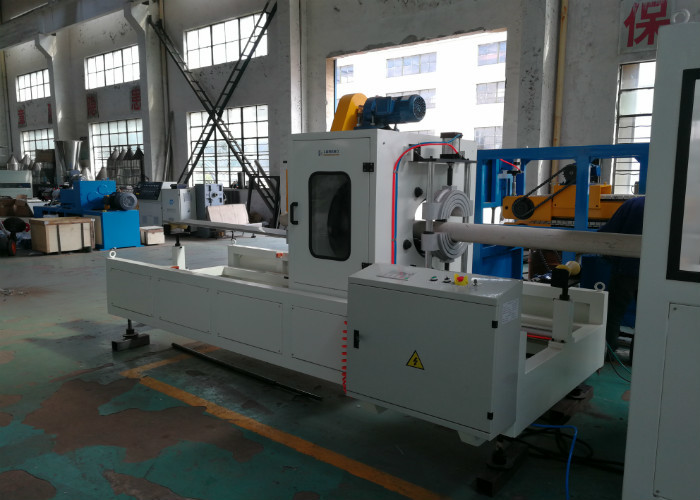

Cutting machine (double)
Stacker 1set





Standard Parameter



1 Material PVC
2 Pipe diameter range 16-63mm
3 Line speed Max 12m/min (single output)
4 Max capacity 250KG/H
5 Total power installed for the whole line 100KW
6 Actual power consumption 80KW
7 Management system CE, ISO9001
8 L*W*H 18*2.5*3m


Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG 1


All SJSZ Series Conical Twin-Screw Extruder Technical Parameter:



Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92
Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
Max. Rotating speed(rpm) 40 38 38 37 36
Main Motor(kw) 18.5 22 37 55 90
Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
Center height(mm) 1050 1050 1050 1050 1100
Net Weight(kg) 3000 3500 4000 5500 8000
L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5



Full Automatic PVC Pipe Extrusion Line ,  Pipe Production Machine 80KW 250KG 2
