Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line

Certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
I'm Online Chat Now

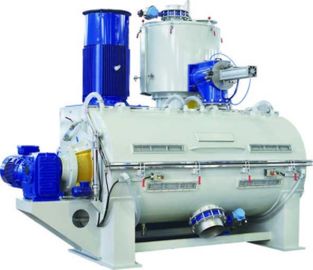

Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line

Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line
Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line

Large Image :  Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE, ISO
Model Number: LB-800T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SET PER MONTH

Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line

Description
VESSEL VOLUME: 800L HEATER MIXER TYPE: VERTICAL
NOTOR POWER: 83/110KW DISCHARGING: AUTO PNEUMATIC
TEMPERATURE: AOTOMATIC CONTROL MATERIAL MIXED: PVC & ADDITIVES
High Light:

plastic mixer machine

,

heating cooling mixer

HEATER TURBO MIXER APPLIED IN THE FIELD OF PVC FILM BLOWING PRODUCTION LINE



LANGBO Extrusion operates in the manufacturing of plastic extrusion machines and systems for over many years. LANGBO Extrusion is the reliable solution partner from planning and process engineering for the optimum solution through set-up, start-up and operation of extrusion systems.



Applications include plastic profile, pipe and pelletizing extruders or complete extrusion lines. All machines and lines are tailor-made according to the customer’s demands and needs.

We always aim to provide high performance extruders and energy efficient systems as well as reliable and fast spare parts delivery, service and support.



COMPONENTS AND FEATURES:



The Heater Mixer is ideal appliance for fast preparations of mixer in general and PVC components in particular. The types of Mixers are ideal for formulations which are not requiring cooling processing.

  • Universal usable
  • Available with different drive options
  • High throughput rates with optimal mixing quality
  • Low operation costs
  • Compact design

USAGE AREAS OF MIXER:



This Mixers are mainly used to produce Dry-blend, granule, either rigid or plasticized from polymer in suspension, emulsion or mass and for special mixture.

  • PVC cables
  • PVC Curtain Rails
  • PVC Hoses
  • PVC Water Isolation Membranes
  • PVC Shoe Soles
  • PVC Floor Covers
  • PVC Shrink Film
  • PVC Tent

Optional Accessories:

  • The production will be with soft starter if frequency inverter is not ordered with the machine.
  • The production will be with Microcontroller if PLC is not ordered with the machine.

Mixture quantity:

  • Including all of additives and raw material density, which will be mixed, are calculated as 0.5kg/lt and mixture temperature 120 degrees centigrade. Depend of the auxiliary raw material, the loading system can be different.
  • Changeable quantity is the event of the plant temperature conditions.

Specification for Heater Mixer:



MODEL MIXING VESSEL (lt) MOTOR POWER(kw) HEATING MEDIUM DISCHARGING
LB-50 50 7/11 AC Self-frication Pneumatic
LB-100 100 14/22 AC Self-frication Pneumatic
LB-200 200 30/42 AC Self-frication Pneumatic
LB-300 300 40/55 AC Self-frication Pneumatic
LB-500 500 55/75 AC Self-frication Pneumatic
LB-800 800 83/110 AC Self-frication Pneumatic
LB-1000 1000 83/110 AC Self-frication Pneumatic



Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line 0Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line 1Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line 2

Heater Turbo High Speed Mixer Machine For Pvc Film Blowing Production Line 3
