PE PPR PERT Cool and Hot Water Pipe Extruder High Effeciency
Features Gallery Product Description Request A Quote
Features
Specifications
Name: PE Pipe Extrusion Line
Application: Pipe Making
Plastic Process: PE
Motor: Siemens
Warranty: 12 Month
Diameter Range: 20-630mm
Automatic Grade: Fully Automatic
Screw Design: Single Screw
Certification: CE,ISO
Voltage: 380V 50HZ 3Phase(Customized)
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Color: Customised
Highlight:

hdpe pipe production line

,

plastic pipe extrusion machine

Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Product Description



PE PPR PERT Cool and Hot Water Pipe Extruder High Effeciency



Highlights Description:



1. SJ series present high efficient single screw PE pipe extruder,which is developed by our company adopting German



latest advanced technology. Screw optimizes composing separate type screw and mixing parts. Barrel



optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by



using separate type screw and groove barrel together:



2. It's optimized during material melting process. Thus get more extrusion throughput.


It is realized extruding melt material in low temperature.



3. Cutting function is caused through separate clearance and it makes material equal well.


It's controlled during melt plasticization process. Therefore only granule smaller than separate clearance can



enter melt channel.



4. Wide manufacture range for different materials. It's suitable for all kind of polyolefin materials and specially



for material for HDPE, PP, ABS pipe.



Quick detail:



1. With PP-R specially milling single screw extruder,

adopting high speed screw to reach high effeciency output;

* Die mould of Special design;Reasonable sprue to ensure lubricity of pipe inner wall;


* Pipe Production Range:φ20-φ160mm,Production speed can be 16m/min.


* Low cost: Nanometer anti-sepsis pipe only 5-10% higher than normal pipe.

*One machine,multi-function: can be used to produce HDPE Silica core tube,common PP-R ,PE,PEX



PIPE,etc.

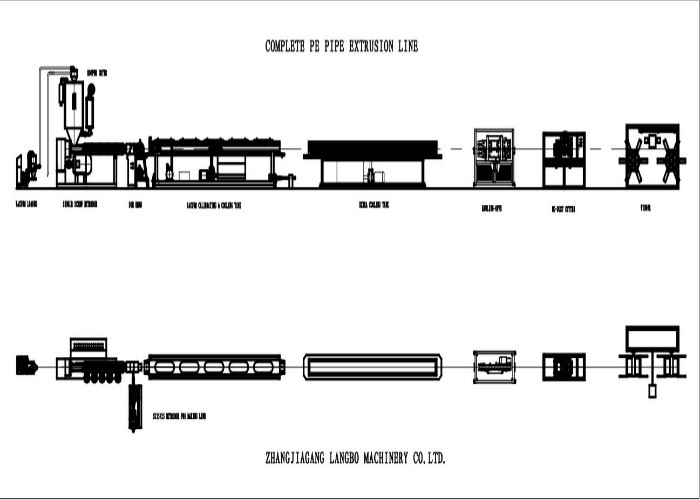

Production Line Strucure

Model Screw Diameter L/D Ratio Production speed Machine total power Machine size
SJ50/38 50mm 33:1 25m/min 55kw 27x1.5x3
SJ60/38 60mm 36:1 35m/min 110kw 34x1.5x3
SJ75/38 75mm 36:1 55m/min 160kw 58x2.5x3

PE PPR PERT Cool and Hot Water Pipe Extruder High Effeciency 0
