|Condition:||New||Screw Design:||Twin Screw／Single Screw|
|Application:||PVC Pipe||Voltage:||380V 50HZ|
twin screw extruder machine,
plastic extrusion machine

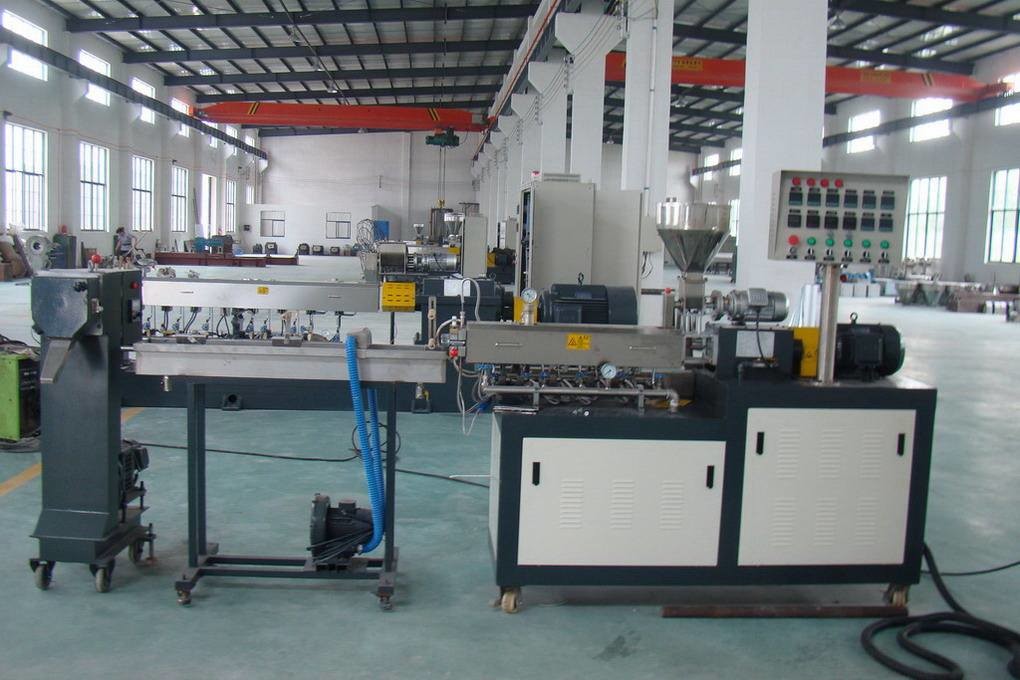

PPR PE Pipe Production Line , Fully Automatic Plastic Extrusion Equipment
Product Application of plastic pe gas pipe production line:
1. Vacuum feeding
2. Hopper dryer
3. Single screw extruder
4. Color string extruder
5. Co-extrusion mould
7. Spray vacuum calibration tank
8. Spray cooling water tank
9. Haul-off machine
10. No dust cutter
11. Pipe Stacker for package.
1. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. Single
screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor
have applied excellent products.
2. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-
claw type, twelve-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the
property of machine group is reliable, the production efficiency is high. With special device, it can produce
inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc.
Characteristics of the equipment PP series plastic pipe material production line is mainly used in the area of
agricultural water supply system, architectural water supply system, pavement of cables, etc.
|Forming Machine Motor Power(kw)||5.5|
|Application Material||PVC, PE,PP|
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
