PVC CABLE CONDUIT CHANNEL MAKING MACHINE WITH PLC TOUCH SCREEN CONTROL

1 SET
MOQ
USD,EUR
Price
PVC CABLE CONDUIT CHANNEL MAKING MACHINE WITH PLC TOUCH SCREEN CONTROL
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER
PROFILE'S SIZE: 180MM
MOTOR POWER: 22KW
RAW MATERIAL: PVC
CONTROL: PLC TOUCH SCREEN
CAPACITY: 150KG/H
Voltage: 380V 50HZ 3Phase(Customized)
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service
Automatic Grade: Automatic
Warranty: 12 Months After Installation In Local Place
Highlight:

pvc sheet making machine

,

pvc ceiling panel extrusion machine
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-180
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

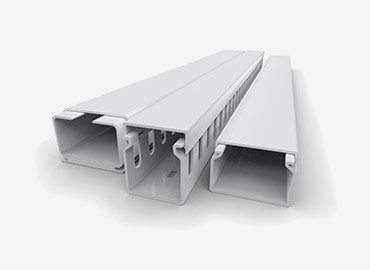

PVC Cable Conduit Channel Making Machine with PLC Touch Screen Control
Advanced extrusion machinery for manufacturing PVC cable conduit channels with sophisticated PLC touch screen control system.
Our Services
  • Machine and auxiliary equipment recommendations with budgeting and human resources allocation
  • Prompt response to inquiries within 36 hours with efficient problem resolution
  • Comprehensive worker training at our facility
  • Complete technical support documentation and electrical component drawings in Chinese and English
  • On-site engineering support for installation and line testing
Components and Features
LANGBO MACHINERY specializes in manufacturing high-quality PVC/WPC profile machinery with customer-oriented principles and uncompromising quality standards.

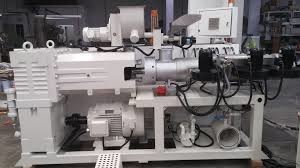

Conical Twin Screw Extruder
Specifically designed for PVC profile applications, offering optimal solutions with material flexibility, high performance, and long durability.
Extruder Features
  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Product Range
  • Screw diameters: 51mm, 65mm, 80mm
  • Comprehensive range of calibration tables for tailored solutions
Calibration Table Features
  • Motor-driven height and side movement
  • Motor-driven longitudinal movement
  • Manual tilting movement
  • SUS304 construction for water-contact parts
  • Low maintenance cost
Table Specifications
  • Table length: 4.5 to 14 meters
  • Vacuum pumps available upon request
Energy Saving System
Lima Energy Saving System (LESS) provides up to 80% vacuum energy savings with advanced efficiency features.
  • Vacuum energy savings up to 80%
  • Individual frequency-driven vacuum pumps
  • Inverter-controlled operation based on actual needs
  • Low noise level operation
  • Closed circuit water conservation during extrusion
Haul-off Units
Crawler track haul-off units with flexible pad dimensions and track lengths, featuring independent tracks with continuous speed adjustment.
  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter
Haul-off Specifications
  • Pad width range: 220 to 500 mm
  • Track length: 1400 to 2000 mm
Cutting Systems
Comprehensive cutting solutions including saw (TK-series), guillotine (GK PRO), cross-cut (CC PRO), and blade cutting (BK-series) units for various profile requirements.
Saw Cutter Features
  • Different saw dimensions for special profiles
  • Low maintenance cost
  • Integrated dust absorber unit
  • Adjustable cutting speed
  • Cutting width up to 800 mm
  • Cutting height: 10 to 100 mm
Tilting Table
  • Stainless steel table construction
  • Pneumatic tilting system
  • Standard length: 6 meters (customizable)
  • Roller-type tables available based on profile geometry
Machine Specifications
Model Profile Size (mm) Extruder Model Motor Power (kw)
LB-180 180 SJZ55/110 22 AC
LB-240 240 SJZ65/132 37 AC
