PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube

PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube

Large Image :  PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube

Product Details:
Place of Origin: ZHANGJIAGANG, JIANGSU, China
Brand Name: LB
Certification: CE ISO
Model Number: LB-63W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube

Description
Name: PVC Pipe Extrusion Line Screw Concept: Conical Twin Screw
Warranty: 12 Month Capacity: 300kgh
Raw Material: Pvc Powder Motor: Siemens
Temperature Controller: Omron After Sale Service: On Site Commission
High Light:

plastic tube making machine

,

pvc pipe production line

PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube



Features Specifications:

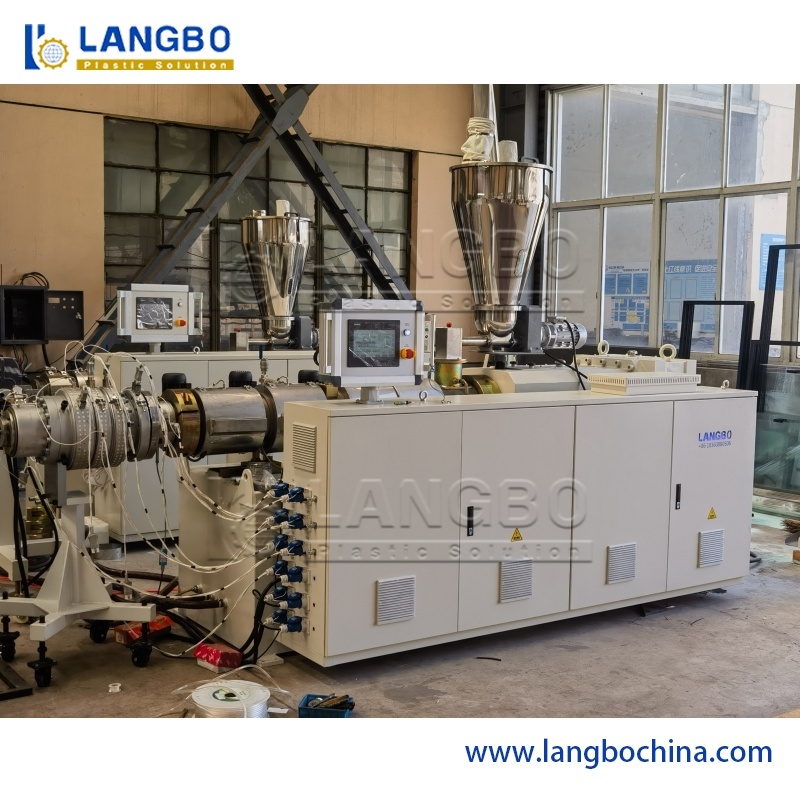

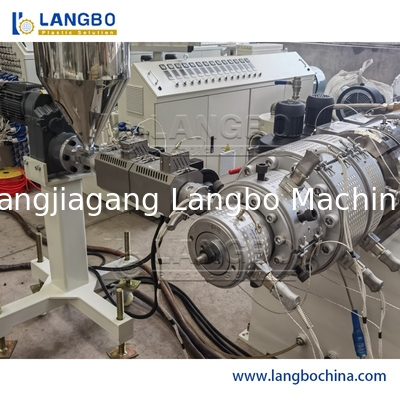

1. Model SJZ series conical twin-screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material, and granulation.
2. The conical twin screws have applied the oil cooling system. The barrel is cooled by special wind cooling system.
3. The conical twin-screw extruder system has applied computer control. According to customers requirements, most reasonable structure of conical twin-screw can be made so as to achieve the best plasticity performance and material quality.

4. The conical twin-screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced the advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems that can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube 0

Technical Parameter:

Extruder SJZ-65/132 SJZ-80/156 SJZ-92/188
Pipe size Φ16-Φ63MM Φ50-Φ110MM Φ90-Φ160MM
Mould Double outlet Double outlet Double outlet
Downstream GF63-2 GF110-2 GF160-2
Total Power 109.5KW 145KW 250KW
Total Length 22.2M 27M 28.8M



PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube 1

Overall Service:

No. Item Details
1 Formula support

We provide a basic formula to our customers for each project.

And our engineers will help customers to do formula adjustments according to requirements.

2 Installation support Our engineer will help customers to install the machines in the Customer’s factory.
3 Operation support We provide machine operation and maintenance training for our customers.
4 Fast response We provide machine operation and maintenance training for our customers.



PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube 2
