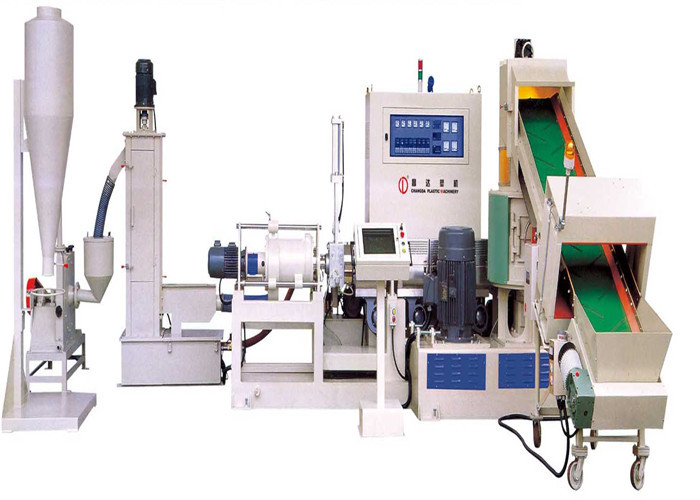

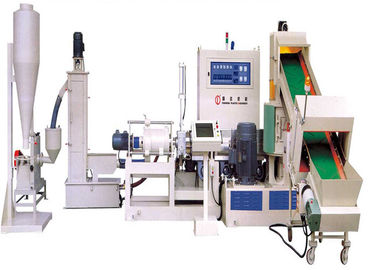

Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity

Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity
Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity

Large Image :  Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH

Single Screw Extruder Plastic Recycling Granulator Machine 150kg / H Capacity

Description
Material: Recycle Plastic Scrap Extruder: Single Screw Extruder
Screw: Vented Screw Control System: Siemens , Omron, ABB
Warranty: 1 Year Packaging Details: Film Packing And Wooden Case Material
High Light:

plastic pellets making machine

,

waste plastic recycling pelletizing machine

Single Screw Extruder Plastic Recycling Granulator Machine 150kg/H Capacity



Description:

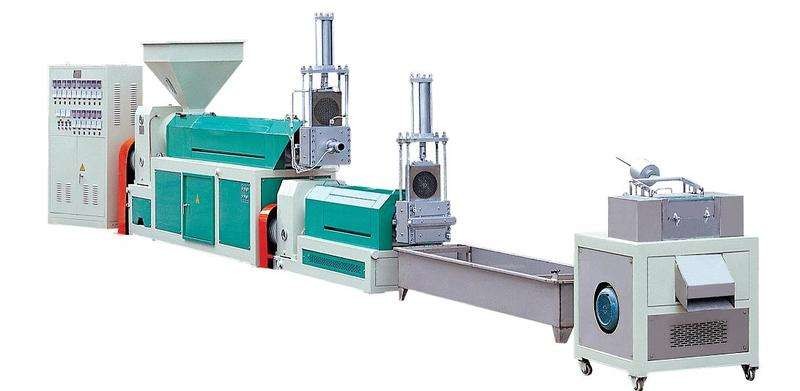

Single Stage Cold Strand Plastic Recycle Machine/Pelletizer recycled plastic granulating machine/pelletizing line According to buyer's different requirents, we design and make different machine structure and application sush as the machine's different showing on the following characters:



A. extruder. according to different material and processing need, we have single screw extruder, conical screw extruder , parallel  twin screw extruder , double stage extruders.



B. cutting . according to different material and processing need , we have water cooling strips (noddle) cutter method, water circu cooling cutting method, air cool hot cutting method , and others. when we offer you the machine , we will make the proposal according to your materials and your capacity need. the followng is some introduction of the machines.



Feature :

1. High strength and elastic coefficient, high impact strength and wide temperature range;

2. High transparency and free dyeing;

3. Low shrinkage and good size stability;

4. Poor fatigue resistance;

5. Good weather resistance;

6. Excellent electrical characteristics;

7. Odorless and odorless are harmless to human health.

8. Machine design lower consumption and noise , easy and safe operation .

9. ABB, RKC,OMRON,SIEMENS brand

10. 1year warranty time



Machine detailes :

2. SJ65 Single Screw Extruder



Screw diameter :65mm

  Capacity: 50-80kg/h
  Screw and Barrel making material: 38CrMoAlA
  Hardness of Screw : HV900-1000
  Depth of Nitrogen Treatment: 0.4-0.7 mm
  Screw Straightness: <0.015 mm
  Main Motor Power :30kw
  Barrel heater type : Cast aluminum heater+304 stainless steel cover
  Heating temperature range: 0-320℃
  Heating power: barrel + mold
  Barrel cooling type: forced air cooling
  Screw type : vent screw
  Fan power: 1.5kw
  Screw Max Rotating Speed: :13-130rmp
  Center height: 1000mm
  Weight: 1500kg
  Control system :
  ABB brand frequency converter (speed control)
  Omron brand temperature meter( temperature control )
  Siemens brand contactor
  AoYi brand ampere meter
  Parts:
  Screw and Barrel brand: zhoushan brand


Gearbox brand : jiangyin brand ,

Gear type: hard tooth -faced speed reducer

  Force feeder
  Motor brand: xindali brand ( CE marked )

3. Hydraulic net changer Hydraulic station, motor power 1.5 KW, accumulator, 10 l filter before the installation of pressure sensor, skateboard reversing cylinder controlled by manual reversing valve, oil system of maximum working pressure of 16 mpa, oil hydraulic system can automatically supply, and a constant to the set value. 0
  Net changer: double net changer, 38 crmoal nitriding material handling, HV950-105

4. Mold Mold and head material : 40Cr steel
  High quality tooling steel
  Mold hardness: HV950-1050
  Final pet strand hole size : 3mm diameter or Could be customized
  Heating band and thermocouple matched : yes


5. Water Cooling Tank



Working performance: final pet strand cooling
  Main making material : 304 stainless steel
  Tank length: 4M
  Machine structure: Q235 steel
  Matched with nylon material traction rollers *4pcs
  Including water valves
  Center height 1000mm
  Tank height adjustment : +-90mm


6. Blower Dryer and Pelletizer



Heating dryer driving motor: 2.2kw
  Drying pipe making material: 304 stainless steel
  Traction roller making material: 4pcs*nylon material
  Water collection device for reuse: yes
  Granule cutting machine power: 3kw
  Motor brand: china brand with CE
  Cutting Speed : variable
  Traction type: rubber roller traction
  Traction roller clamp type : manual screw press
  Cutting blade making material: 9Crsi steel material
  Blade; 1 pcs fixed blade ,1 pcs rotating blade
  Cutting speed control : ABB frequency converter
  Center height: 1000mm


7. Vibrating Screen



Driving motor power: 0.55kw*2
  Vibrating motor brand; China brand with CE
  Adopt two layers screen
  Screen size could be designed.
  All parts touched with granule is made by high quality 304stainless steel
