Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation

Certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
I'm Online Chat Now

Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation

Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation
Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation

Large Image :  Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE, ISO
Model Number: LB-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTH

Two Screw Plastic Pelletizing Machine Extruder High Capacity Stable To Operation

Description
Condition: NEW Application: Granules
Screw Design: Double-screw Machine Color: Optional
Control By: Inverter Final Products: Pellets
High Light:

plastic pellets making machine

,

waste plastic recycling pelletizing machine







Double Screw Plastic Pellet Extruder , High Capacity Pvc Pelletizing Machine





PET plastic extruder pelletizing line

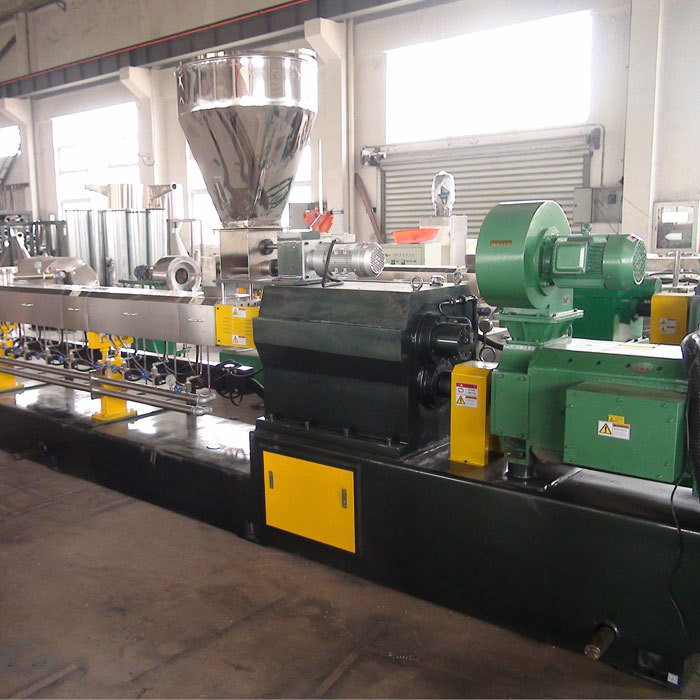

About machine:





Consist of whole line.


1. Feeding system


2. Twin screw extruder


3. Pelletizing system and auxiliaries





1. Feeding system


Frequency conversion speed adjuster



2. Twin screw extruder



Parallel co-rotating twin screw extruder


design for barrel and screw


Barrel electrical heating


Barrel water cooling


Electrical equipment


Vacuum system







3. Auxiliary unit





Water cooling tank



Strand pelletizer



Technical parameter of PET plastic extruder pelletizing line (normal)







Model 20 30 35 50 65 72 92
Screw diameter(mm) 21.7 30 35.6 50.5 62.4 71.2 91
Rotating speed(rpm) 600 400 400/600 500/600 400/500 400/500 400/500
Motor power(kw) 4 11 11/15 37/45 55/75 90/110 220/250
L/D 32-40 28-48 32-48 32-48 32-48 32-48 32-40
Capacity(kg/h) 2-10 5-30 10-80 20-150 100-300 300-600 600-1000
