SBG250 PVC UPVC Double Wall Corrugated Pipe Machine With Conical Twin Screw

China SBG250 PVC UPVC Double Wall Corrugated Pipe Machine With Conical Twin Screw supplier

Large Image :  SBG250 PVC UPVC Double Wall Corrugated Pipe Machine With Conical Twin Screw

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Condition: New Application: Pipe
Plastic Processed: PVC, UPVC Screw Design: Conical Twin Screw Extruder
Automatic Grade: Full Automatic Power(W): 15-500kw
Ipe Used For: Plastic Corrugate Pipe Machine Certification: CE, ISO9001







SBG250 PVC UPVC Double Wall Corrugated Pipe Machine With Conical Twin Screw



Working flow:




Plastic extruder → Mould→ forming machine →Cooling tank →Cutter →Stacker

The scope of diameter: (OD) Φ63mm-Φ250mm







Double wall corrugated pipe introduction



1) Double wall corrugated pipe (ODΦ63mm-Φ250mm) material is UPVC. the design of structure is new and



reasonable.



2) Smooth inner layer and hollow corrugated outer layer composed.



3) It has many advantages, such as: good ability bearing external load, high strength, light weight, smooth



inner wall, impact resistance, corrosion resistance, construction convenient, and low cost and so on.



4) The pipe adopts socket expanding and seal ring connecting which prevents expanding from hot and



shrinking from cold.



5) Double wall corrugated pipe are widely used in highway, railway roadbed, the Mass Transit Railway



engineering, waste landfill sites, tunnels, green belts, sports grounds and drainage area such as slope



protection caused by high water content.





Double wall corrugated pipe extruder Features:




In order to meet the demand of plastic pipe market, our Company designed and developed this UPVC Double



Wall Corrugated Pipe Extrusion Line SBG 250 by absorbing advanced technology from foreign countries



plastic machinery industry.





This UPVC Double Wall Corrugated Pipe Extrusion Line is the latest study achievement in the plastic in the



plastic extrusion field. This extrusion line is suitable for the high speed extrusion of UPVC material. UPVC



Double Wall Corrugated Pipe Extrusion Line adopts one conical twin screw extruder directly extruding and f



forming technology, human-machine interface control system. It makes high automation degree, reliable



quality and stable production become true. And this Corrugated Pipe production line wins our home and



abroad customers’ good reputation.





Extruder: Equipped with forced fixed-quantity feeding system,High speed and efficiency conical twin screw



extruder is specially designed for extrudidng PVC material,automatic temperature control system, vacuum



exhaust system and automatic speed control system. This structure assures accurate controlling for the



material temperature, plasticization stability and greatly improving corrugated pipe quality.



Corrugator: High performance vertical/shuttle corrugator ensure the pipe of good quality and high efficiency



Horizontal structure; Chain type transmission; Equipped with open water cooling system. This kind of design



greatly increases the production speed. With special and accurate forming module; Cooling air and water



system which guarantee the production speed fast. It greatly increases the production speed. Mold moving



adopts advanced synchronous upper and lower mechanical drive system. It assures moving accuracy and



plastic pipe quality stability. Advanced self-lubricating system makes the forming molds and mold plates



abrasions minimize and greatly extend the service life.





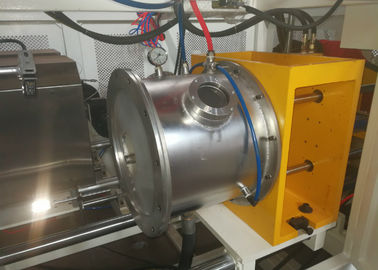

Die head: Spiral type; Special structure design; Small volume and clean flow. It is composite die head and



made of 40Cr, plating chrome and polishing. which makes the corrugated pipe inner and outer layer wall



thickness even and forming stability.



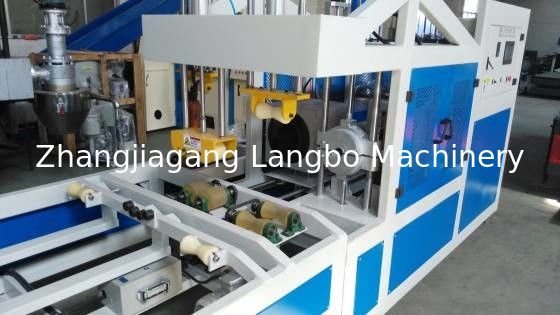

Cutting machine: automatically cutting, Effective cutting, high speed, low noise and dustless cutting and so



on many advantages,.



Control system: this UPVC Double wall corrugated pipe production line adopts Siemens professional PLC



control system, 15 "large colorful touch screen human-machine interface, high automation, reliable running,



easy operation, remote communication function which can realize remote fault diagnosis and rule out the



possibility.





Main Technical Parameter:





Name Model Dimension
(L×W×H)mm
Total Power(kw) Weight (kg)
Extruder SJSZ65/132 or SJSZ80/156 4300x15400x2465 70( max) 4500
Mould Blocks
( OD)
SBZG63 1400xφ250 16(max) 180
SBZG75 190
SBZG90 200
SBZG110 800
SBZG125 1600xφ370 900
SBZG145
SBZG160
SBZG200 1000
Corrugator SBCJ200 3500x1750x1730 4(max) 4000
Cutter QG200 2715x1000x1720 4 800

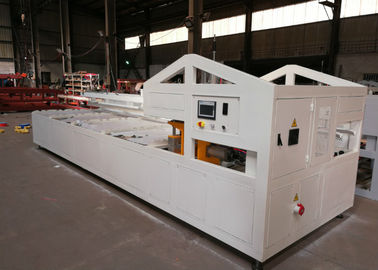

Belling Machine SGK200 7800x1320x1900 10

3800











For choosing proper machine and saving your time, please read these bellow guides carefully:



1) What material do you want to process?


2) What is the max and min size of the finish products. For example, the diameter of pipe(inch or mm);



thickness of pipe wall(mm) you’d better offer the picture of sample or drawing of sample.


3) What is the electric device you need ? Siemens, Omron or domestic ? What is your power standard?


4) When do you want the machine? (Times for delivery)


5) Other requirements about the machine you want.
