Siemens Motor Pvc Extruder Machine , Twin Pipe Pvc Pipe Manufacturing Machine

China Siemens Motor Pvc Extruder Machine , Twin Pipe Pvc Pipe Manufacturing Machine supplier

Large Image :  Siemens Motor Pvc Extruder Machine , Twin Pipe Pvc Pipe Manufacturing Machine

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Screw Number: Two Motor: Simens
Payment Terms: TT Or L/C Nitrided Layer Thickness: 0.4-0.7mm
Raw Material: PVC Warranty: 12 Months





Siemens Motor Pvc Extruder Machine , Twin Pipe Pvc Pipe Manufacturing Machine



Quick detail





1. PVC twin pipe production line pipe diameter :16-63mm


extruder: SJSZ-51/105


high quality with competitive price





2. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building



water supply and drainage and cable laying, etc. Saw cutter and planetary cutter for choice. Changing some



parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core



pipe. Conical twin screw extruder and parallel twin screw extruder for choice. Double-strand and four-strand



for choice for small pipes








Description:





1. Plastic PVC water supply pipe production line / Machine



The PVC pipe could be used for water supply, water drainage and wire conduit, etc.



We could offer complete set high quality and reliable PVC pipe production line from diameter 16 to



800mm.The complete set production line includes below machines:



a.PVC Mixer ( for raw material preparation)


b.Conical Twin Screw Extruder


c.Extrusion Mold


d.Vacuum Tank


e.Cooling Tank ( for large diameter pipes)


f.Haul Off Machine


g.Cutting Machine


h.Stacker

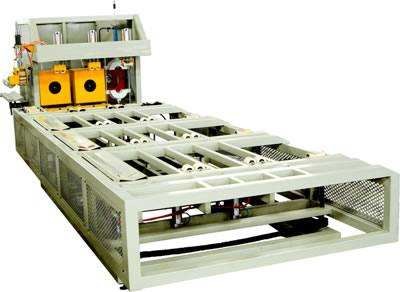

i.Auto Belling Machine ( for pipe connection)


j.Crusher and Milling Machine ( for waste pipe treatment, the recycled PVC could produce pipe again.)










2. Pipe size range ø20-50mm




Extruder SJSZ51/105 SJSZ65/132


Extruder power 22kw 37kw


Extrusion capacity135kg/h 250kg/h


Max. production speed120kg/h





3. Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion. PVC dual pipe production



line/twin pipe line extruder with various diameter and wall thickness, from 16-800mm. the plastic pipe



production line mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray



cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing



variours pipe.





4. The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with



double-tube single-control. stainless steel spraying shaper to form a production line. It avoids a waste



condition when one tube is adjusted and the other one is affected.







Main Technical Parameters:





Pipe range 20-63mm single 20-63mm dual 75-160mm 110-315mm 315-630mm
Extruder SJZ51/105 SJZ65/132 SJZ80/156 SJZ80/156 SJZ92/188
Extruder power 18.5kw 37kw 37kw 55kw 110kw
Extrusion capacity 120kg/h 250kg/h 250kg/h 360kg/h 800kg/h
Max. Production speed 12m/min 10m/min 6 m/min 3 m/min 1.2m/min







Application:

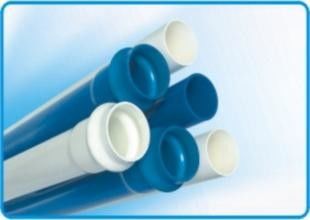

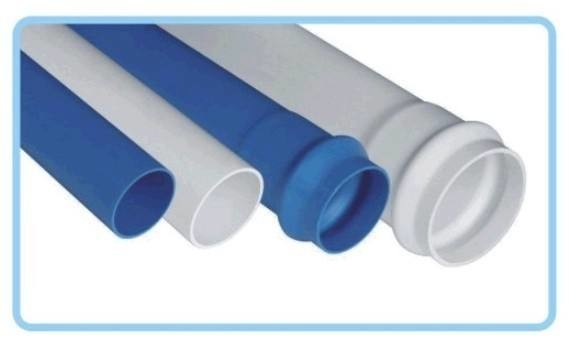

This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply



pipe, drainage pipe, cable and wire protection pipe




Our advantage:



  • 24 hours services;
  • Overseas installation
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.



Siemens Motor Pvc Extruder Machine , Twin Pipe Pvc Pipe Manufacturing MachineSiemens Motor Pvc Extruder Machine , Twin Pipe Pvc Pipe Manufacturing Machine
