Ø20-50mm PVC Pipe Extrusion Line , 250kg / H Plastic Pipe Making Machine Fully Automatic

Certification
Good quality PE Pipe Extrusion Line for sales
Good quality PE Pipe Extrusion Line for sales
I'm Online Chat Now

Ø20-50mm PVC Pipe Extrusion Line , 250kg / H Plastic Pipe Making Machine Fully Automatic

China Ø20-50mm PVC Pipe Extrusion Line , 250kg / H Plastic Pipe Making Machine Fully Automatic supplier

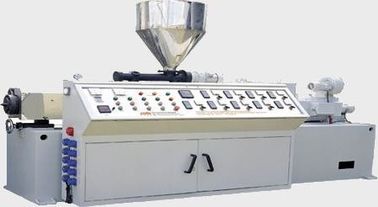

Large Image :  Ø20-50mm PVC Pipe Extrusion Line , 250kg / H Plastic Pipe Making Machine Fully Automatic

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Screw Design: Twin Screw Automatic Grade: Fully Automatic
Motor: Siemens Plastic Process: PE
Certificate: CE ISO9001 Certificate Color: According To Customer's Requirement
Inverter: ABB Application: Pipe



Ø20-50mm PVC Pipe Extrusion Line , 250kg / H Plastic Pipe Making Machine Fully Automatic







Quick detail





1. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm.



Controlled independentle umitary sctrcure twin pipe hauling mechanism anf synchronous cutting device.



Optional length set and accurate adaption stacker.





2. Pipes made from PVC are usually manufactured by extrusion.This process starts by feeding plastic material



from a hopper into the barrel of the extruder.The material is gradually melted by the mechanical energy



generated by turning screws and by heaters arranged along the barrel.The molten polymer is then forced into



a die,which shapes the polymer into a pipe that hardens during cooling.









Description:





1. Product application of pvc pipe making machine



PVC pipe extrusion line is mainly used in making UPVC and PVC pipes with various tube diameters and wall



thickness. Pipe is applied to agricultural and construction water supply and drainage, overhead or



underground wire and cable.





2. Pvc plastic twin pipe extrusion line with various diameter and wall thickness, from 16-800mm.



the plastic pipe production line mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating



water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed



for producing variours pipe.







3. Pipe size range ø20-50mm



Extruder SJSZ51/105 SJSZ65/132



Extruder power 22kw 37kw



Extrusion capacity135kg/h 250kg/h



Max. production speed120kg/h









Main Technical Parameters:





Extruder Model SJSZ-51X105 SJSZ-65X132
Accessory Machine GFDP-63 GFDP-63
Pipe Diameter 16-63mm 16-63mm
Production Speed 12(m/min) 12(m/min)
Max.Output 160(kg/h) 220(kg/h)











Application:





PVC pipes are widely used for drinking water, irrigation, plumbing, casing conduits, industrial applications,etc.



We manufacture competitive and reliable plastic extrusion machinery for pipes using PVC. The machine is



well manufactured with superior technique to provide you the best of output with very maximum utilization of



resources.







Our advantage:





experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion



equipment; the core technology and equipment are communicating and docking with the advanced European



plastics processing technology



Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt,Tunisia, and so on.



After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
