Single / Multiple Layer PE Pipe Extrusion Line For 63-630mm PP Pipe Diameter

China Single / Multiple Layer PE Pipe Extrusion Line For 63-630mm PP Pipe Diameter supplier

Large Image :  Single / Multiple Layer PE Pipe Extrusion Line For 63-630mm PP Pipe Diameter

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description

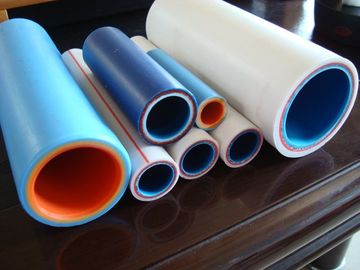

Pipe Layer: Single Layer Or Multiple Layer Pipe Diameter: 63-630mm
Material For Machine: SS304 Control: PLC Automatic Of Single Screw Rubber Extruder
Contactor: Siemens After-sales Service: Engineers Available To Service Machinery Overseas







Single / Multiple Layer PP PE Pipe Extrusion Line 63-630mm Pipe Diameter





Characteristic and application:

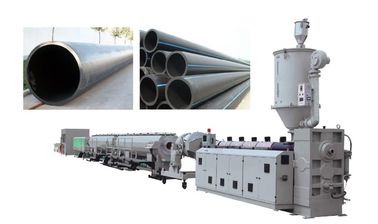

PE pipe producing line, equipped with different extruding dies and necessary auxiliary machines, can make various PE pipes.







Features of this line:

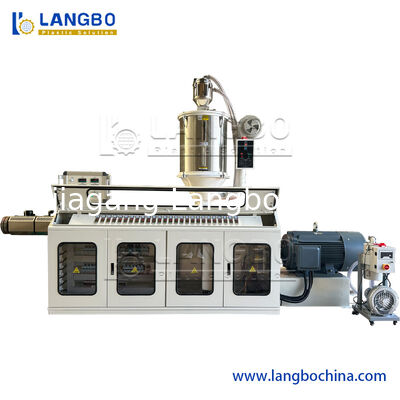

1. high efficiency single screw extruder: high rotating speed, good compounding effect and stable extrusion ensuring big capacity.

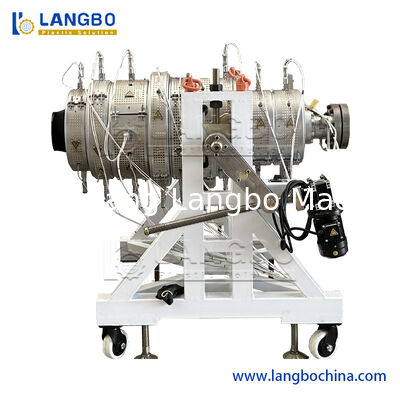

2. extruding die: adopting latest designed die head with spiral distributing flow channel, built-in temperature controlling device



which make the extrusion more evenly.

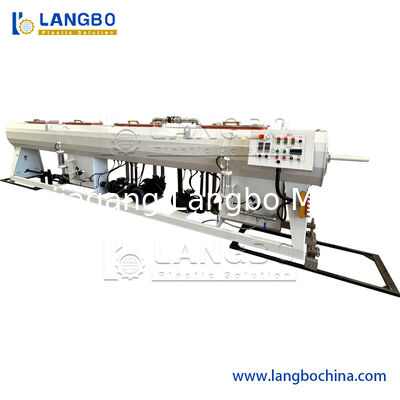

3. vacuum calibrating tank: advanced water loop vacuum calibration, two vacuum chambers ensuring perfect roundness of the



pipe, multi-section 6 meter water spraying tank, make sure cooling the pipe thoroughly, the main body of the tank made of



stainless steel.

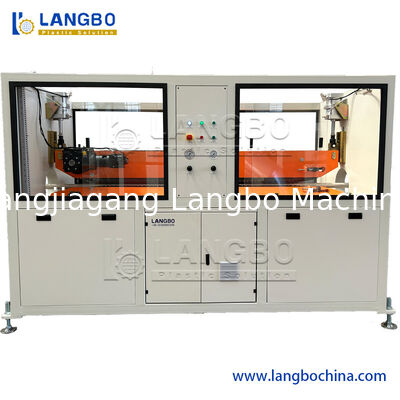

4. haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed



governed by the FUJI or ABB inverter.

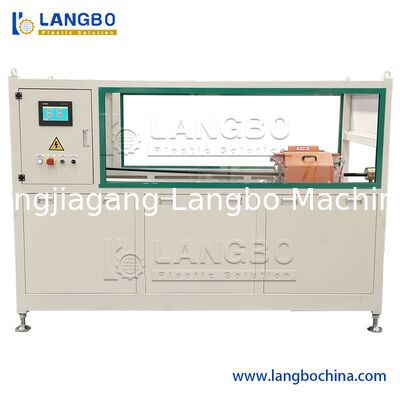

5. cutting unit: dust-free cutting, with PLC controlling and meter counter.



6. stacking unit: providing pipe winder or pipe stacker.



7. controlling system: supply manual controlling cabinet and SIEMENS PLC touch screen controlling.







Main technical parameters:





Model UPVC63 UPVC160 UPVC250 UPVC450 UPVC630
Pipe Diameter mm Φ16-Φ63 Φ20-Φ160 Φ50-Φ250 Φ160-Φ450 Φ450-Φ630
Vacuum tank length mm 6000 6000 6000 6000 6000
Vacuum degree -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08
Max. haul-off force N/m 10000 15000 20000 30000 40000
Hauling speed m/min 10 6 4 2 0.5-2
Valid haul-off length mm 1000 1500 1500 1600 2400
Cutting mode Dust-free cutter Dust-free cutter Planetary cutter Planetary cutter Planetary cutter
