Product Details:
|
| Inverter: | ABB Inverter | Motor: | SIEMENS Brand Motor |
|---|---|---|---|
| Output: | 1-3kg/h | Main Motor Power: | 1.1kw |
| Color: | Gray | Suitable For: | Lab Masterbatch Making |
| High Light: | plastic pellets making machine,waste plastic recycling pelletizing machine |
||

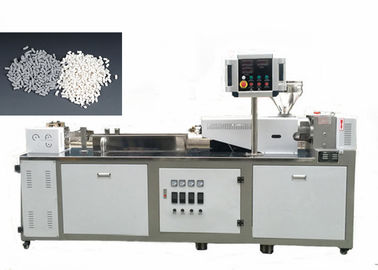

1-3kg/H Output Plastic Pelletizer Machine For Lab Masterbatch Making Gray Color
Application:
According to buyer's different requirents , we design and make granulating machine .
there are so many kinds of plastic materials , same machine's capacity also different.
the machine's different showing on the following characters:
A. extruder. according to different material and processing need, we have single screw extruder, conical screw extruder , parallel twin screw extruder , double stage extruders.
B. cutting . according to different material and processing need , we have water cooling strips (noddle) cutter method,
water circu cooling cutting method, air cool hot cutting method , and others.
when we offer you the machine , we will make the proposal according to your materials and your capacity need. the followng is some introduction of the machines.
Feature :
1. Small size, easy for moving , lower consumption , high efficiency
2. Almost all the machine can be removed and installed easily. Easy for maintance.
3. All the electric brands are all International famous brand. And have one year warranty.
4. Small line, for both production and lab.
5. Can test different materials.
6. imported brand control parts , ABB, RKC,OMRON ,SIEMENS ,FUJI
7. 1 year warranty time , 24 hours service after sale
Detailes
| specifications | ||
| 1 | Single-screw extruder lab | performance from 1 to 3 kg per hour. Should mix different polymers in different forms - powder, granules.. |
| The kit should include: | ||
| 1.1 | The drive unit and the control unit | Drive and control unit must be mounted in a single cabinet. Derivation of the drive must be connected single screw extruder unit. Specifications are as follows: Power induction motor 1.1 kW; Changing the speed of the motor should be performed by an electronic frequency converter 3 to 150 rev / min; The maximum temperature 350 C; The number of heating zones of the extruder 2; The number of heating zones of the head 1; Type temperature controller to be digital; The temperature measurement made of low mass thermocouple type K The total power 2.5 kW; Power supply voltage 380 V, 50 Hz; Accessories: Brushes / Tools; The weight 100 kg; The dimensions should be as follows: a width 520 mm; height is 520 mm; length of 520 mm. |
| 1.2 | single -screw laboratory extruder unit | Specifications are as follows: The number of screws 1; Screw diameter 25 mm; The length of the screw: 28:1; There must be a one-way rotation of the screw; The maximum temperature 350 C. The number of heating zones of the extruder 2; The number of heating zones of the head 1; Must be an annular ceramic heater heating system; screw and barrel: Hardened steel; It must be cooled feed zone; There is a degassing zone; Hopper 1.2 liters; The hopper material is stainless steel. |
| 1.3 | control system | Independent control box ABB inverter , siemens contacter , omron temperature controller jiangyin brand gearbox , zhoushan brand screw and barrel , jiangsu xindali brand motor ,ceramic heater ,40Cr steel mold ,304stainless steel water cooling tank , matched with force fan cooling , pelletizer blade is 9CrSi steel material , pellet cutting speed controlled by ABB inverter . adopt removable machine design , easy and safe operation , long use life 1 year warranty time , 24 hours service after sale |
